volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
15-38 HXL
>
392/71240
>
9900001
>
Hydro Transaxle Assy.

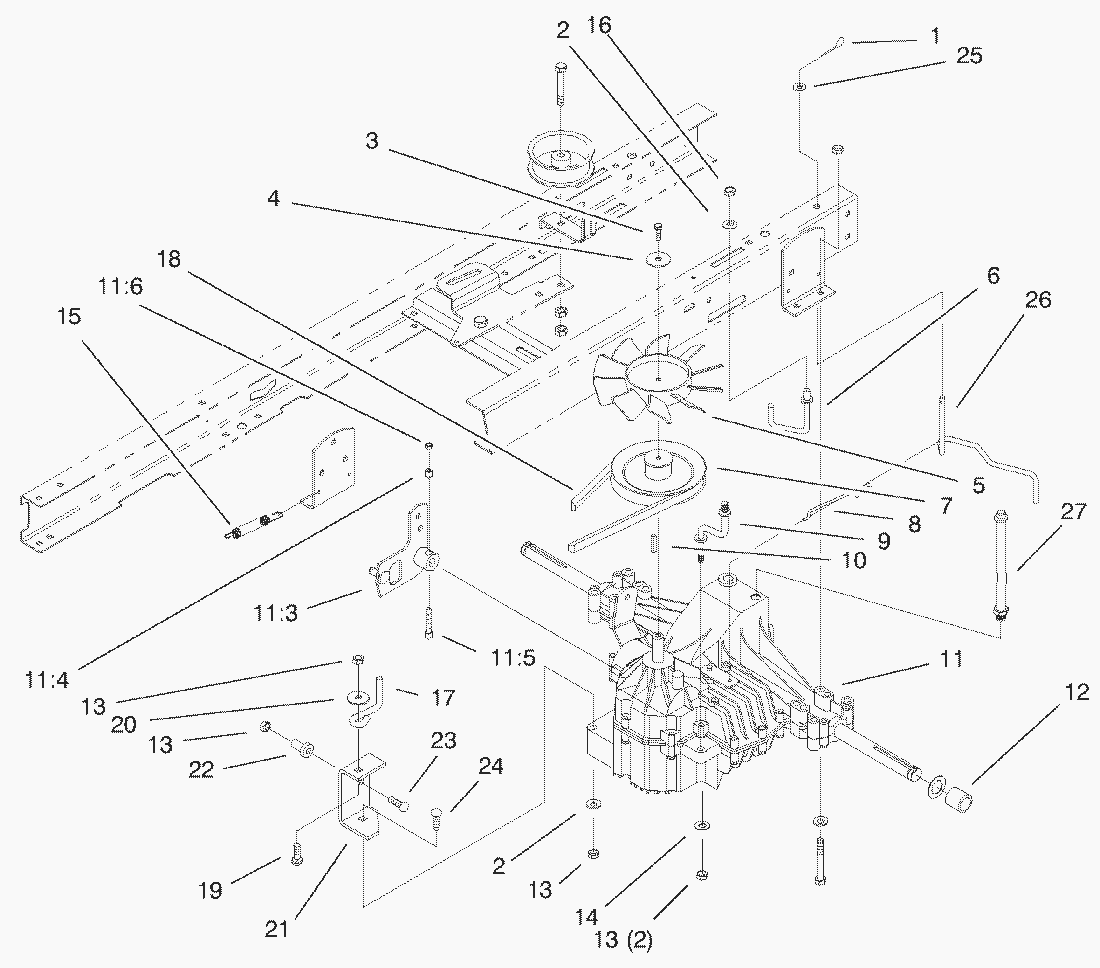

Lista de repuestos para Toro Roth / TORO Hydro Transaxle Assy.
pos.
descripción
Número de pieza
1
Hair Pin Cotter
3290-307
2
Washer
3256-23
3
Screw-HH
33113-016
4
Washer-Fender
3256-58
5
Fan-Hydro
115271
6
Guide-Trans. Belt L.H.
88-5960
7
Pulley-Transaxle
88-6180
8
Wire-Bypass
92-8856
9
Strap-Torque
88-5620
10
Key-Square
80-6090
11
Transaxle ASM-Hydro
94-6775
111
113
Lever Wa-Speed Control
99-5843
114
Spacer-Lock
86-4270
115
Screw-Hex Hd. Cap
3274-59
116
Locknut
3296-12
12
Spacer-Wheel
88-5360
13
MUTTER
3296-29
14
Washer
3256-23
15
Spring-Brake Return
26-6701
16
Locknut
32149-1
17
Guide-Trans. Belt
88-5460
18
V-Belt-Transaxle
88-6280
19
Carriage Bolt
3230-2
20
Washer
5-4460
21
Bracket-Speed Control
92-6013-03
22
Bushing-Flanged
65-5080
23
Bolt-Carriage
3230-5
24
Bolt-Carriage
3230-7
25
Washer
3256-22
26
Lever-Bypass
92-8857
27
Hose-Breather
94-1945
Toro
Roth / TORO
Ride-On Mowers
Traktor
264-6
246 HE
244-5
212-H
212-5
17-44 HXLE
16-44 HXL
16-38 HXL
16-38 XLE
15-44 HXL
15-38 HXL
392/71240
9900001
Engine B&S Model 28Q777-0690-E1
Electrical Schematic
Hydro Transaxle Assy. (Cont.)
HOC Assy.
Electrical Assy.
Hydro Transaxle Controls Assy.
Hydro Transaxle Assy.
5 Speed Transaxle Assy.
Traction, Clutch Assy.
Engine Components
Fixed Steering Assy.
Steering Assy.
