> Roth / TORO > Ride-On Mowers > Traktor > 15-38 HXL > 392/71240 > 9900001 >

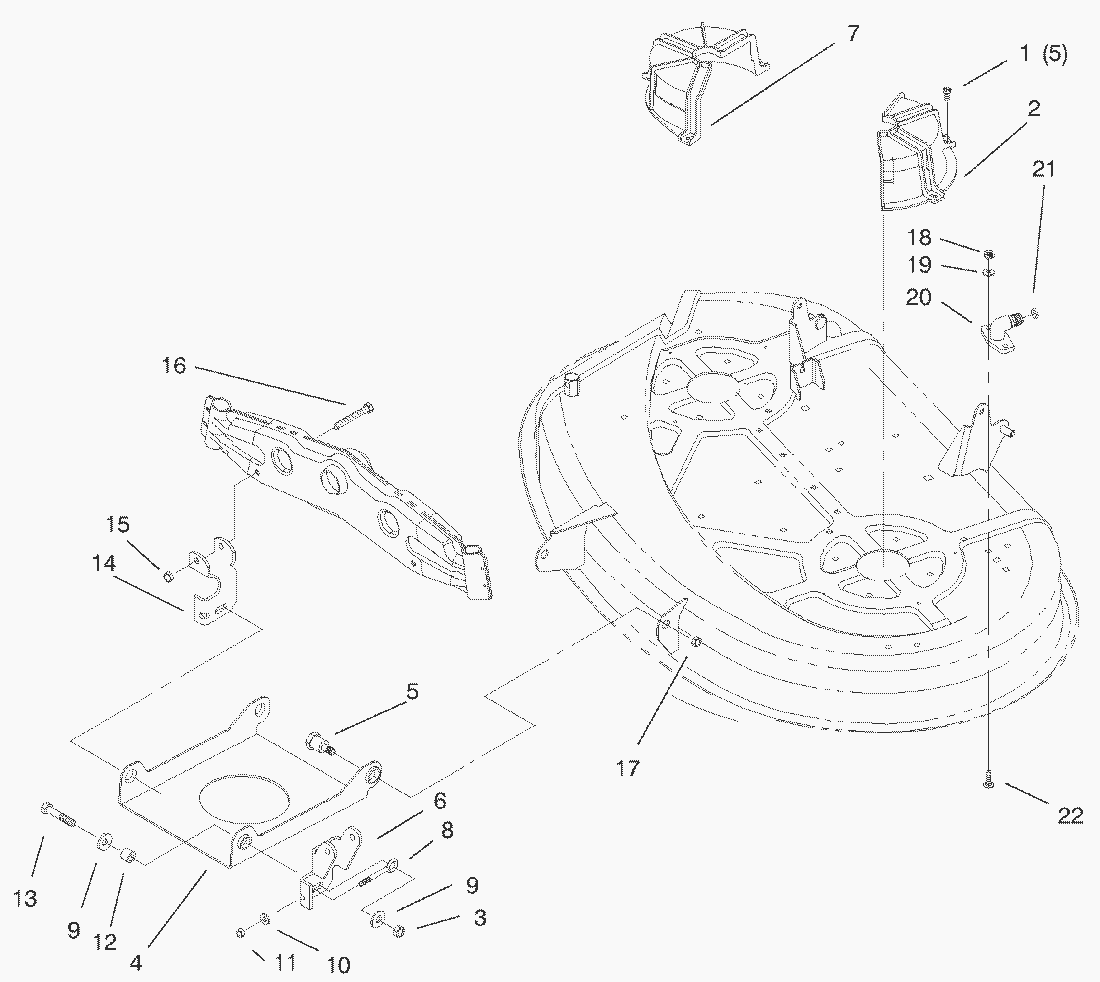

Lista de repuestos para Toro Roth / TORO




Lista de repuestos


pos.descripciónNúmero de pieza
1Self Tapping Screw32104-76
2Guide-Deck Belt L.H.88-4030
3Locknut3296-39
4Pan-Front Deck Suspens93-3881-03
5Bolt-Shoulder94-5823
6Bracket-Deck Susp94-1971-03
7Guide-Deck Belt R. H.88-4020
8Screw-Adjusting61-9980
9Washer-Hardened80-6990
10Washer3256-22
11MUTTER3296-42
12Spacer93-9847
13Capscrew323-9
14Bracket-Deck Susp94-1970-03
15MUTTER3296-29
16Screw-Cap Hex. Hd.322-12
17Nut-Lock3296-23
18Locknut3296-16
19Washer-Plain3256-1
20Fitting-Washout (Model No. 22045 Only)95-2747
21O-Ring-Seal (Model No. 22045 Only)46-6290
22Carriage Bolt3229-1
