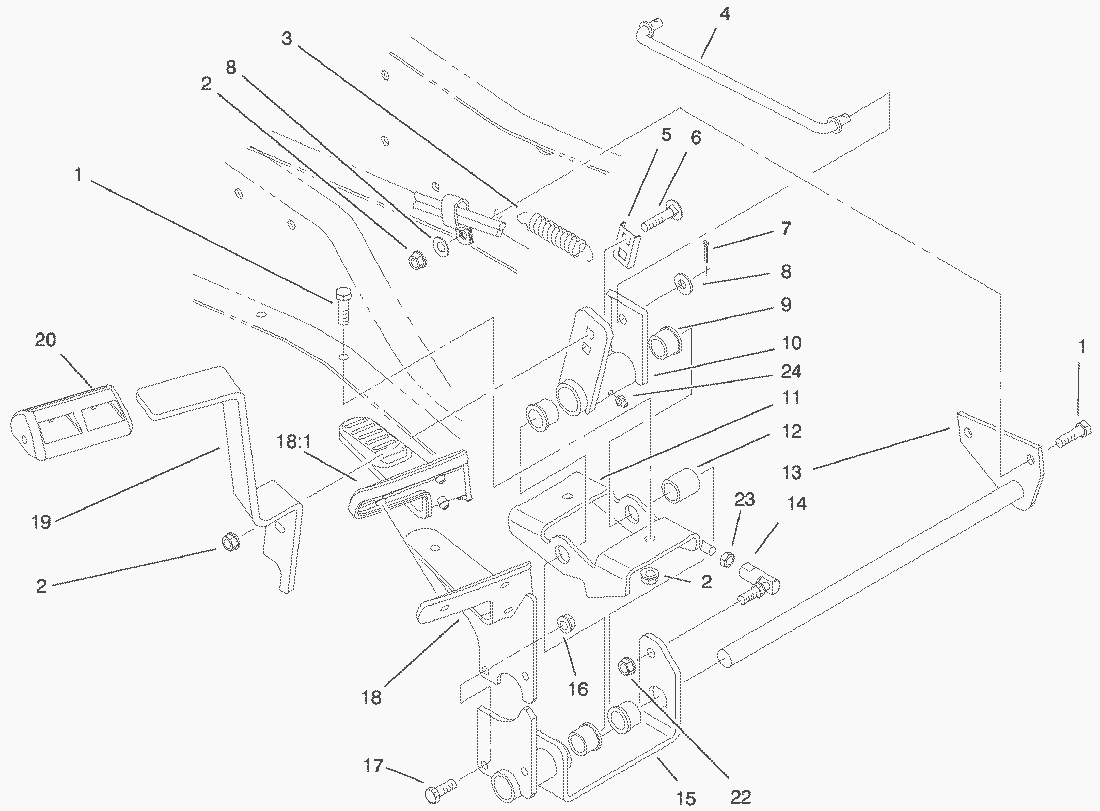

Lista de repuestos para Toro Roth / TORO Hydro Controls Assy.

pos.	descripción	Número de pieza
1	Screw-Cap Hex Hd.	323-7
2	Locknut	3296-39
3	Spring-Extension	63-1590
4	Link-Brake Pedal	94-2499
5	Retainer-Screw	94-7818
6	Carriage Bolt	3231-25
7	Pin-Cotter	3272-10
8	Flat Washer	3256-24
9	Bushing-Flange	98-1636
10	Brake Bracket	94-2351-03
11	Bracket-Support	94-2343-03
12	Spacer-Pedal	94-7501
13	Pivot Shaft	94-2345-03
14	Tie Rod End RH	94-7572
15	Bracket-Forward Reverse	94-2342-03
16	MUTTER	3296-29
17	Hex Hd. Capscrew	322-5
18	Hydro Pedal ASM	98-7207
181	Pad-Hydro Pedal	94-7824
19	Pedal-Brake	94-2352-03
20	Pad-Brake Pedal	94-2123
22	Locknut	3296-6
23	Jam Nut	3220-3
24	Grease Fitting	302-5
