volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 Lxi
>
521/73546
>
8900001
>

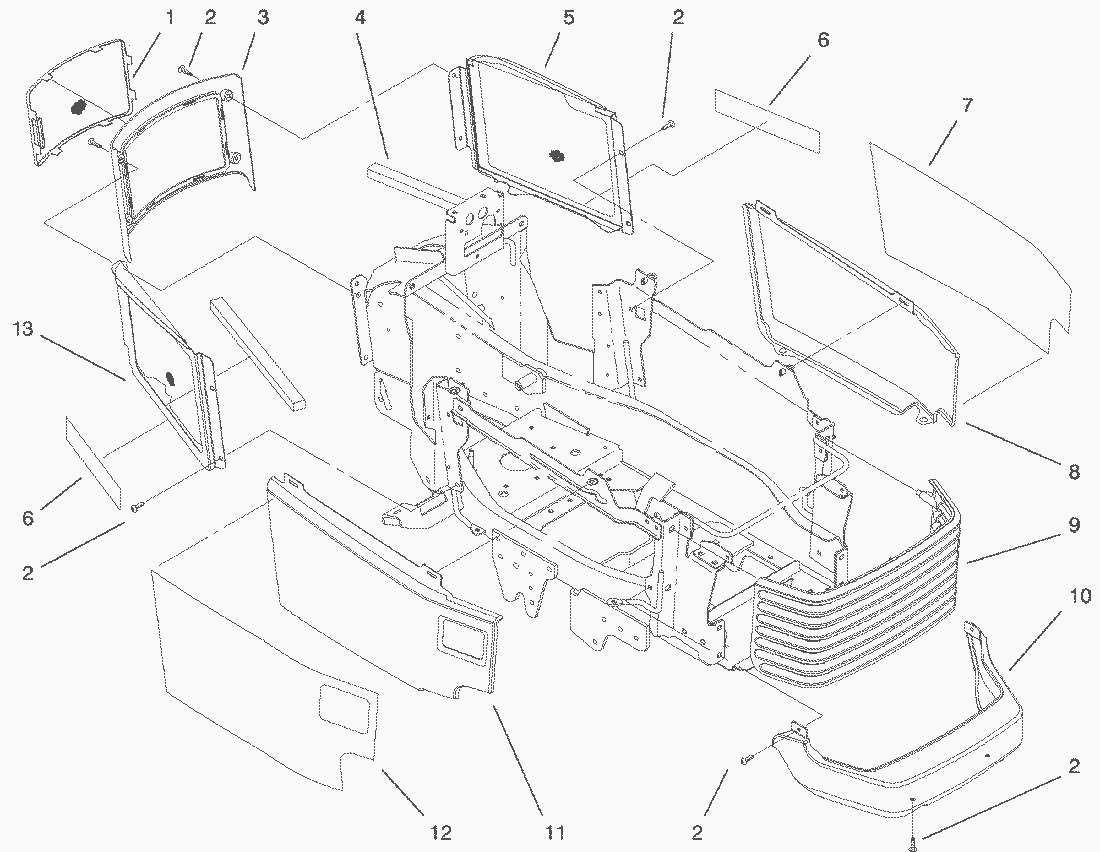

Grill and Side Panel Assy.
Lista de repuestos para Toro Roth / TORO Grill and Side Panel Assy.
pos.
descripción
Número de pieza
1
Screen-Rear
94-2417-03
2
Screw-TTH
92-7020
3
Cover-Rear
94-2093
4
Foam-Seal
95-4231
5
Cover-Side LH
95-4114-03
6
Decal-520lxi
98-1606
7
Decal-Hood LH
95-4260
8
Sidepanel-Hood
94-2088-01
9
Grille
94-2104
10
Cover-Bumper
94-2103
11
Sidepanel-Hood
94-2087-01
12
Decal-Hood RH
95-4261
13
Cover-Side RH
95-4113-03
