Lista de repuestos para Toro Roth / TORO Housing Assy. (Model 22030)




pos.descripciónNúmero de pieza
11-7059

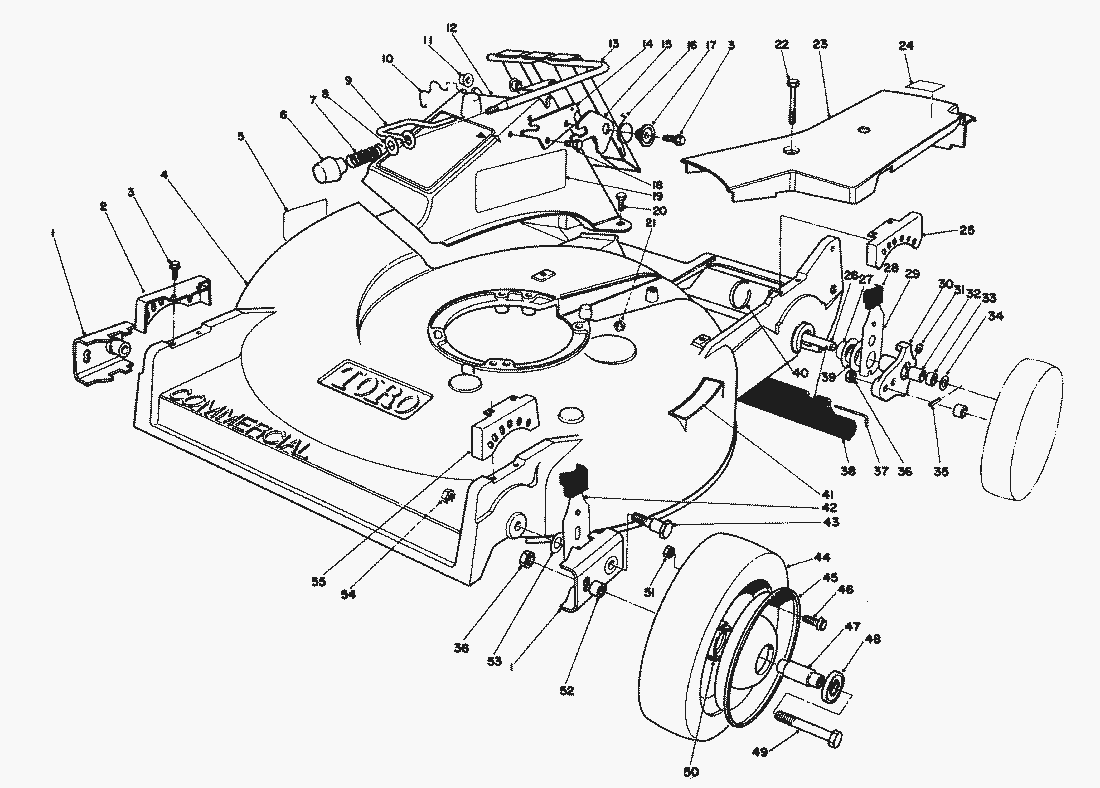

Lista de repuestos


pos.descripciónNúmero de pieza
1Pivot Arm Assembly49-9160
2Quadrant-Front R.H.49-8770
3Self Tapping Screw11-9760
5Decal-Danger39-5770
6Knob233-37
7Spring-Compression23-0920
8Washer-Flat3256-25
9Latch-Door23-0940
10Retainer-Door33-4830
11Bushing23-0880
12Chute-Discharge36-1350
13Door Handle33-5660
14Latch Plate23-1040
15Latch-Safety42-4010
16Spring-Torsion33-4860
17Latch-Spacer43-4840
18Screw-Cap, Hex Hd.32104-17
19Decal-Safety Instructions29-4720
20Screw-Cap, Hex Hd.321-7
21MUTTER3296-42
22Screw-Special37-7260
23Belt-Cover48-2800
24Label-Grease52-2610
25Quadrant-Rear L.H.49-8740
Quadrant-Rear R.H.49-8750
26Shaft-Rear Axle49-8790
27Cap-End48-2170
