volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
2-stroke SP
>
237/22035
>
6000001
>
Governor Assy.

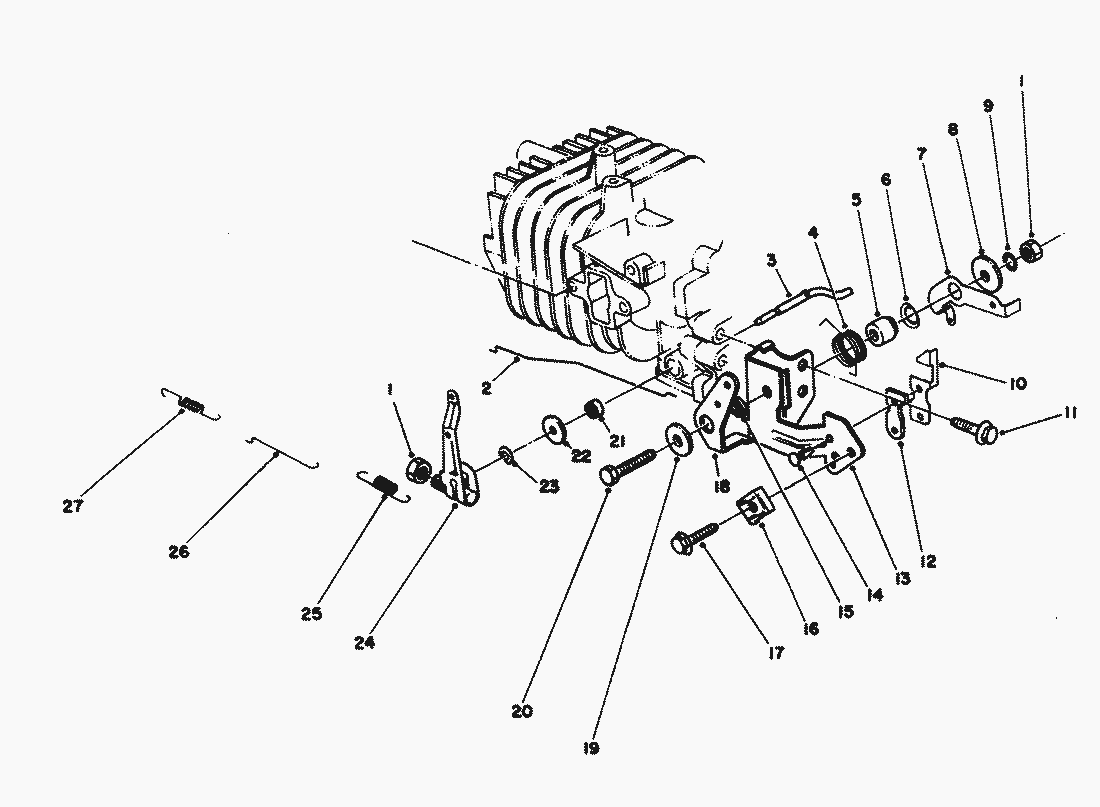

Lista de repuestos para Toro Roth / TORO Governor Assy.
pos.
descripción
Número de pieza
1
MUTTER
81-0900
2
GESTANGE
81-1720
3
REGLERWELLE
81-0840
4
FEDER
81-2460
5
DISTANZBUECHSE
81-1770
6
SCHEIBE
81-1820
7
HEBEL
81-2850
8
SCHEIBE
81-1750
9
SCHEIBE
81-1450
10
ANSCHLAG
81-1840
11
SCHRAUBE
81-1170
12
ISOLIERSTUECK
81-1830
13
HALTER
81-2420
14
NIETE
81-1850
15
SCHEIBE
81-2470
16
BOWDENZUGKLEMME
81-2430
17
SCHRAUBE
50-0130
18
HEBEL
81-1710
19
SCHEIBE
50-0760
20
SCHRAUBE
81-1730
21
SIMMERRING
81-0850
22
SCHEIBE
81-0860
23
SPRENGRING
81-0870
24
HEBEL
81-2840
25
FEDER
81-2830
26
GESTAENGE
81-0910
27
FEDER
81-0920
