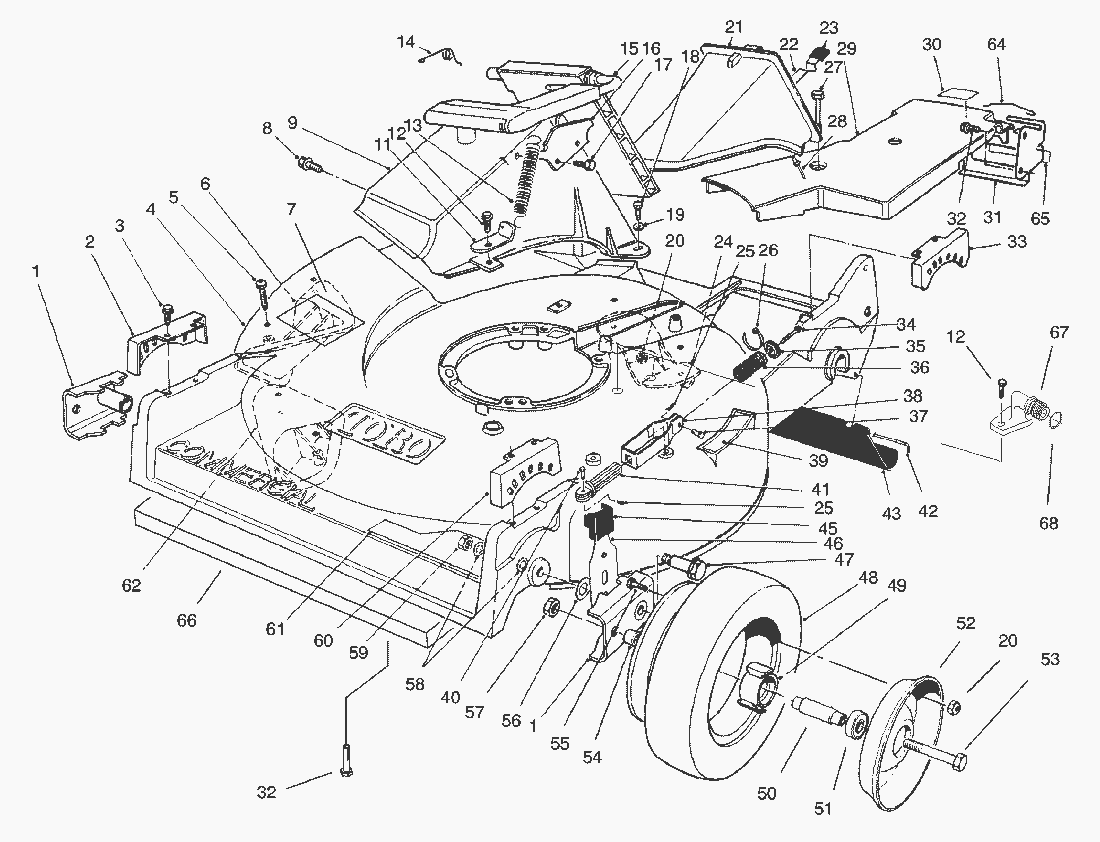

Lista de repuestos para Toro Roth / TORO Housing Assy. (Cont.)

pos.	descripción	Número de pieza
		53-7720

pos.	descripción	Número de pieza
25	Pin-Cotter	3272-1
26	Tie Wrap	3290-378
27	Screw-Special	37-7260
28	Rivet	3295-35
29	Cover-Belt	86-5231
30	Label-Grease	93-6664
31	Bracket-Adj. Traction	74-1741
32	Self Tapping Screw	32144-70
33	Quadrant-Rear L.H.	49-8740
	Quadrant-Rear R.H.	49-8750
34	Screw-Hex. Hd. Cap	46-7040
35	Retainer-Spring	65-5280
36	Spring-BBC	84-9100
37	Pin-Cable	84-9040
38	Bracket-Spring	84-8880
39	Decal-Step Pad	62-3950
40	Pin-Spring Guide	84-9050
41	Guide-Spring	84-8870
42	Rod-Shield	33-3208
43	Shield-Rear Safety	44-0580
45	Knob-Arm	25-7740
46	Spring Arm Assy. Front	66-7560
47	Screw-Pivot	27-6232
48	Tire	53-7740
49	Hub-Bearing Support	52-2410
50	Spacer-Bearing	52-2440
51	Bearing	52-2450
52	Plate-Wheel Half	53-7780
53	Hex Hd. Capscrew	323-12
54	Spacer-Wheel	52-2480
55	Capscrew	321-2
56	Thrust Washer	257-3
57	Locknut	32152-2
58	SCHEIBE	40-1940
59	Locknut	3296-6
60	Quadrant-Front L.H.	49-8760
61	Decal-Recycler	92-8781
62	Plate-Kicker	92-1720
64	Retainer-Cable	46-7030
65	Decal-Traction Drive	74-1970
66	Shield-Front	46-5400
67	Fitting-Washout (Model No. 22045 Only)	95-2747
68	O-Ring-Seal (Model No. 22045 Only)	46-6290
