> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 437/22154 > 7900001 > Gearbox Assy. (Cont.)

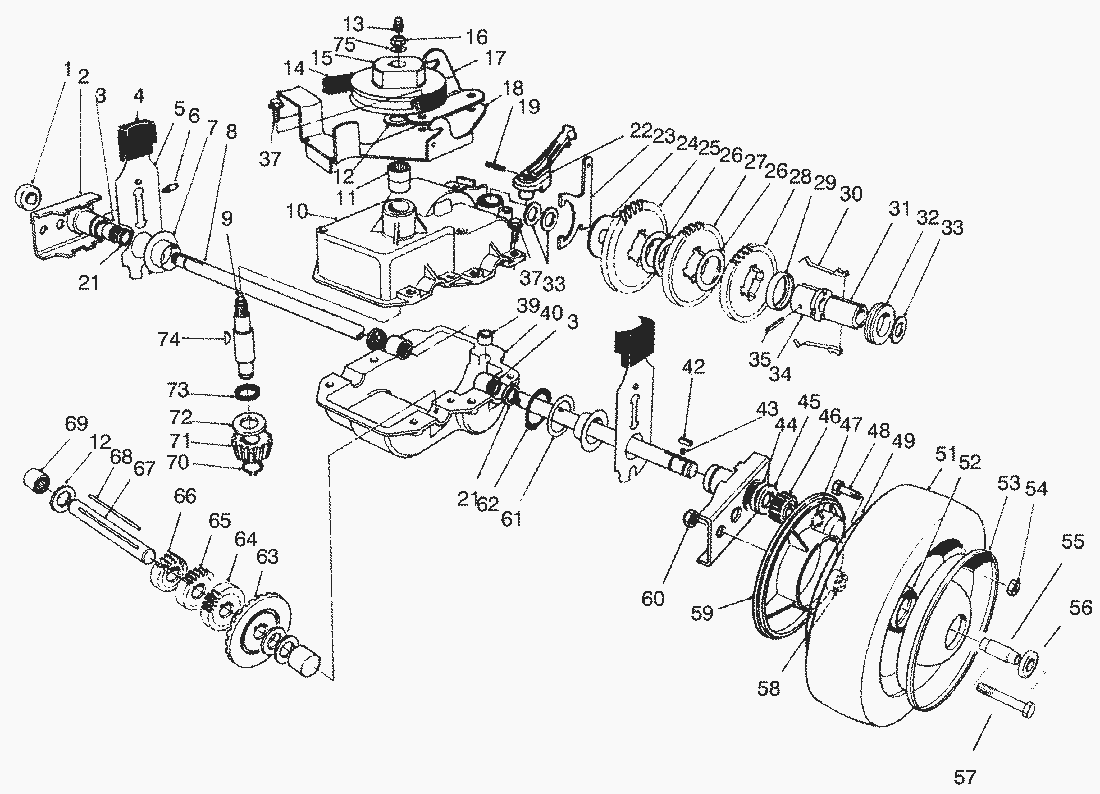

Lista de repuestos para Toro Roth / TORO Gearbox Assy. (Cont.)




pos.descripciónNúmero de pieza
74-1720
Lista de repuestos


pos.descripciónNúmero de pieza
48Capscrew321-2
49Wheel-Half & Gear92-4957
51Tire53-7740
52Hub-Bearing Support52-2410
53Plate-Wheel Half53-7780
54MUTTER3296-42
55Spacer-Bearing52-2440
56Bearing52-2450
57Bolt323-13
58Spacer-Wheel74-1650
59Cover-Wheel74-1640
60Locknut32152-2
61Washer74-1810
62Snap Ring32151-36
63Gear-Bevel74-1760
64Gear-18T39-6650
65Gear-14T46-3550
66Gear-12T46-3540
67Shaft-Intermediate53-7950
68Key-Square39-7842
69Bearing-Closed252-103
70Ring-Retaining32151-57
71Pinion-Bevel39-6660
72Washer-Thrust47-2910
73Seal47-7260
74Key-Woodruff3257-1
75Washer3256-45
Gear Case Assembly (Incl. Ref.74-1861
