volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
2-stroke SP
>
295/26640 B
>
4900001
>

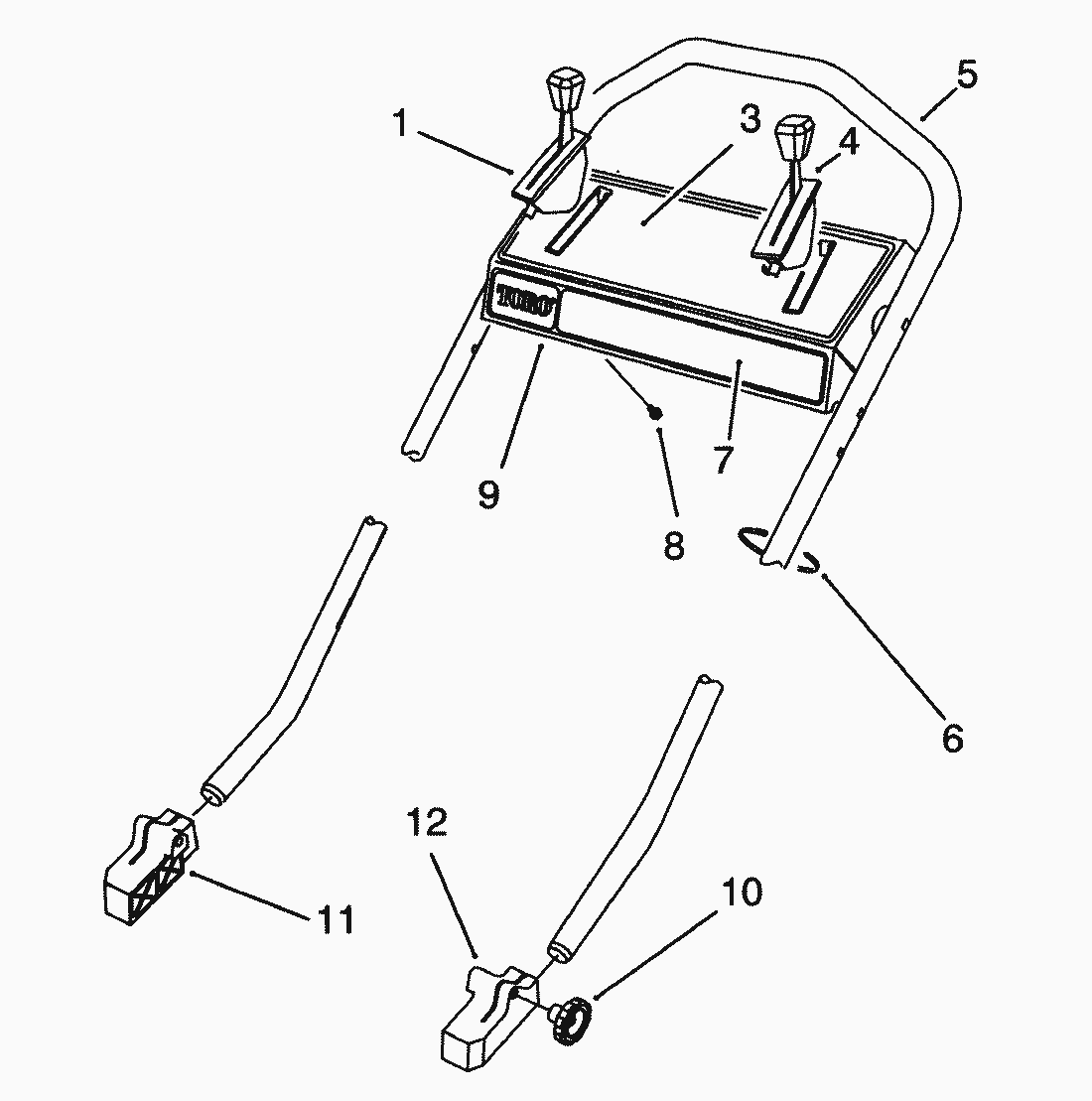

Handle Assy.
Lista de repuestos para Toro Roth / TORO Handle Assy.
pos.
descripción
Número de pieza
1
Control-Ground Speed
76-2713
3
Decal-Instruction
71-9877
4
Control-Throttle Bend Type
66-0236
5
Handle
71-9690
6
Tie Wrap
3290-378
7
Decal-Panel
71-9874
8
Self Tapping Screw
32104-76
9
Control Panel Assembly (Incl. Ref.
16-1759
10
DREHKNOPF
19-4050
11
Mount-Handle R.H.
71-8100
12
Mount-Handle L.H.
71-8090
