> Roth / TORO > Hand operated > Vac/Blower > 4-stroke > 911/62925 > 220000001 > Governor Assy. Engine B&S Model 126402-0245-E1

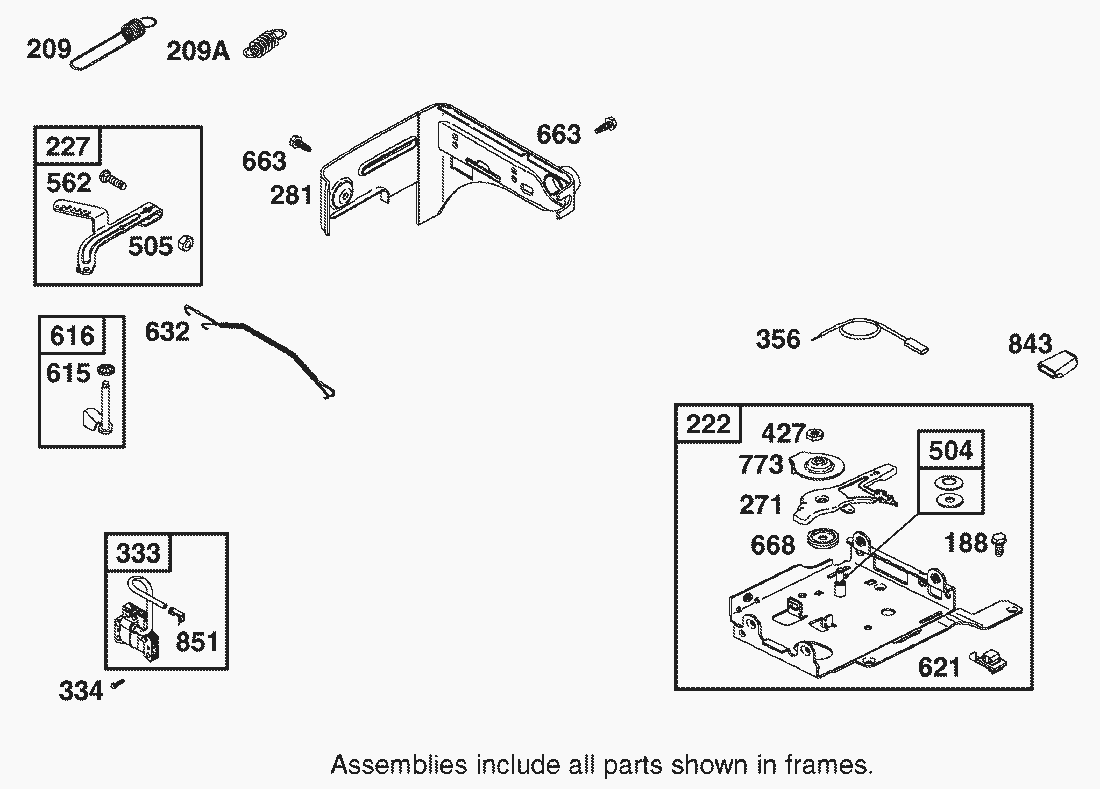

Lista de repuestos para Toro Roth / TORO Governor Assy. Engine B&S Model 126402-0245-E1




Lista de repuestos


pos.descripciónNúmero de pieza
188Screw (Control Bracket)690877
209Governor Spring692571
209Governor Spring691278
222Control Bracket694253
227Governor Control Lever692573
281Control Panel694252
333Magneto Armature695711
334Screw (Magneto Armature)691061
505Nut (Governor Control Lever)691251
562Bolt(Governor Control Lever)691112
615Governor ShaftRetainer692576
616Governor Crank692547
632Mechanical GovernorSpring/Link693408
663Screw(Control Panel)694593
851Terminal-Ignition Cable493880
