> Roth / TORO > Hand operated > Vac/Blower > 4-stroke > 911/62925 > 220000001 > Carburetor Assy. Engine B&S Model 126402-0245-E1

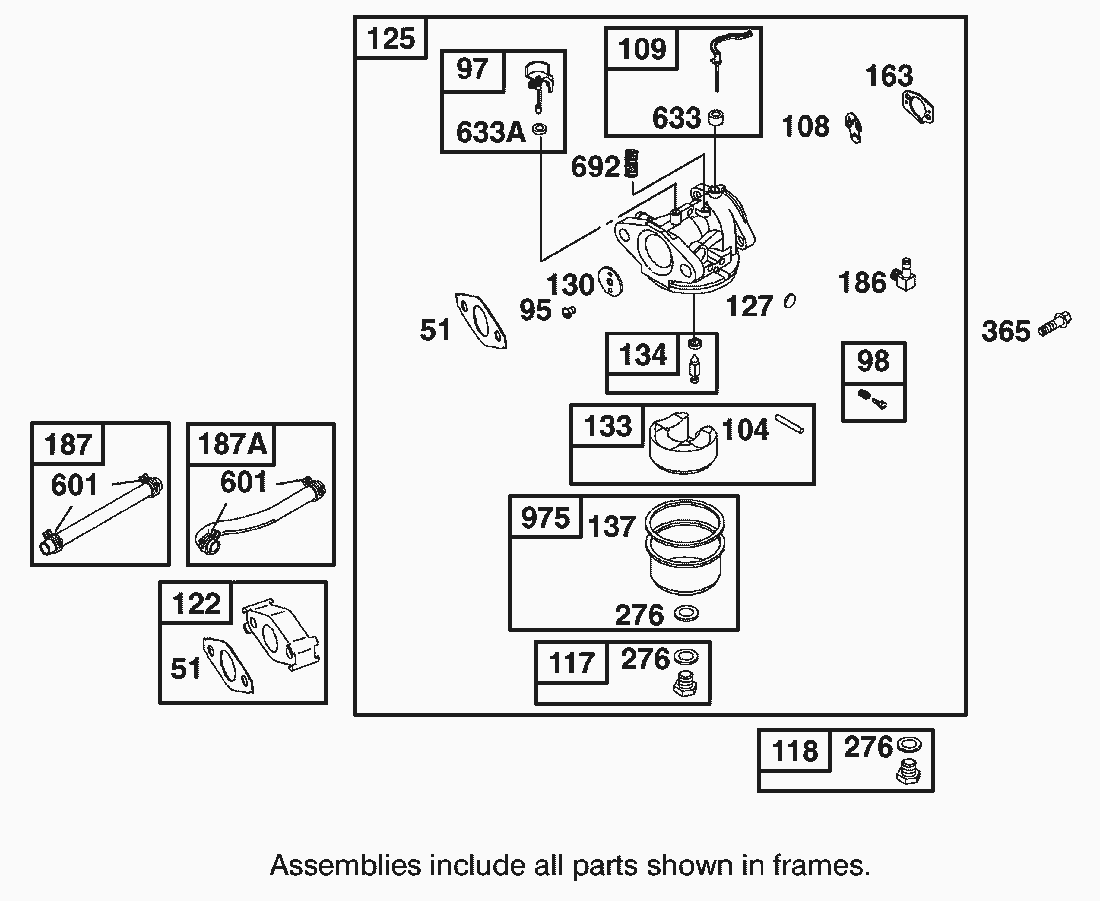

Lista de repuestos para Toro Roth / TORO Carburetor Assy. Engine B&S Model 126402-0245-E1




Lista de repuestos


pos.descripciónNúmero de pieza
51Gasket-Intake692555
95Screw (Throttle Valve)691636
97Throttle Shaft690024
98Screw-Idle Adjustment398185
104Float Hinge Pin691242
108Choke Valve692567
109Choke Shaft693628
117Main Jet (Standard)498978
118Main Jet (High Altitude)497466
122Spacer-Carburetor693749
125Carburetor697028
127Welch Plug691739
130Throttle Valve691181
133Float Assy.-Carburetor398187
134Valve-Inlet (Includes Seat)398188
137Gasket-Float Bowl693981
163Air Cleaner Gasket696979
186Hose Connector692317
187Fuel Line(Cut to Required Length)691050
187Line-Fuel (Molded)692601
276Sealing-Gasket271716
365Screw(Carburetor)692568
601Clamp-Hose95162
633Choke/Throttle Shaft Seal693867
633Dust Seal691321
692Detent Spring690572
975Bowl Assembly-Carburetor493640
