> Roth / TORO > Hand operated > Vac/Blower > 4-stroke > 911/62925 > 210000001 > Cylinder Head Assy. B&S Model 110402-0218-E1

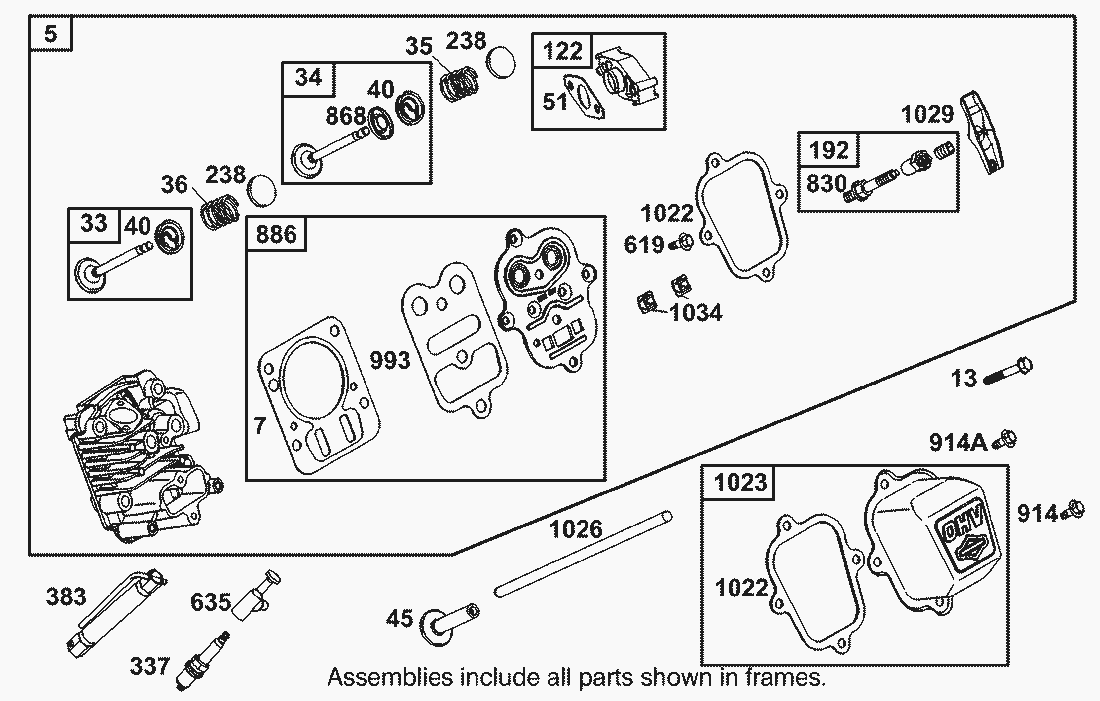

Lista de repuestos para Toro Roth / TORO Cylinder Head Assy. B&S Model 110402-0218-E1




Lista de repuestos


pos.descripciónNúmero de pieza
5Cylinder Head693643
7Cylinder Head Gasket695166
13Screw(Cylinder Head)691137
33Exhaust Valve499642
34Intake Valve499641
35Valve Spring(Intake)691304
36Valve Spring(Intake)691304
40Valve Retainer692194
45Valve Tappet690977
51Gasket-Intake692555
122Spacer-Carburetor693749
192Adjuster-Rocker Arm694543
238Valve Cap691300
337Screw(Cylinder Head Plate)691043
383Sparkplug Wrench19374
619Screw(Flywheel Guard)691108
635Sparkplug Boot692076
830Stud-Rocker Arm694544
868Valve Seal692044
886Cylinder Head/PlateGasket Kit696268
914Screw(Rocker Cover)692198
914Screw(Rocker Cover)692557
993Cylinder Head PlateGasket694088
1022Rocker Cover Gasket691890
1023Rocker Cover499924
1026Push Rod693517
1029Rocker Arm691230
1034Push Rod Guide691343
