> Roth / TORO > Hand operated > Vac/Blower > 4-stroke > 911/62925 > 210000001 > Wheel and Traction Assy.

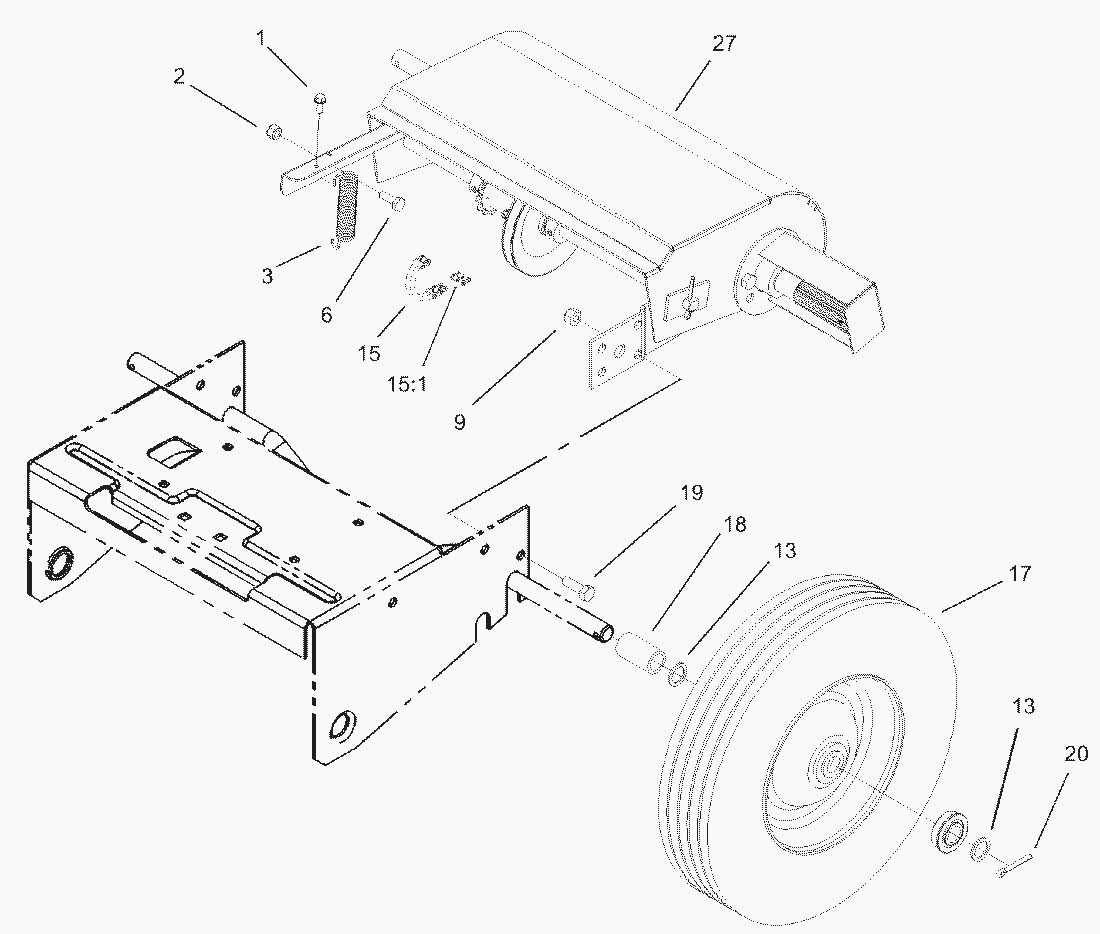

Lista de repuestos para Toro Roth / TORO Wheel and Traction Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Screw Self Tapping32140-32
2MUTTER3296-42
3Spring-Traction23-3520
6Capscrew321-4
9MUTTER3296-29
13Flatwasher7-3590
15Traction Chain (Incl. Ref.3-3434
151Connecting Link2710-31
17Wheel (Incl. Ref.20-6100
18Spacer-Axle20-5410
19Hex Hd. Capscrew322-5
20Cotter Pin3272-17
27
