> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 415/20817 > 220000001 > Cylinder Assy. Engine B&S Model 12H802-1720-B1

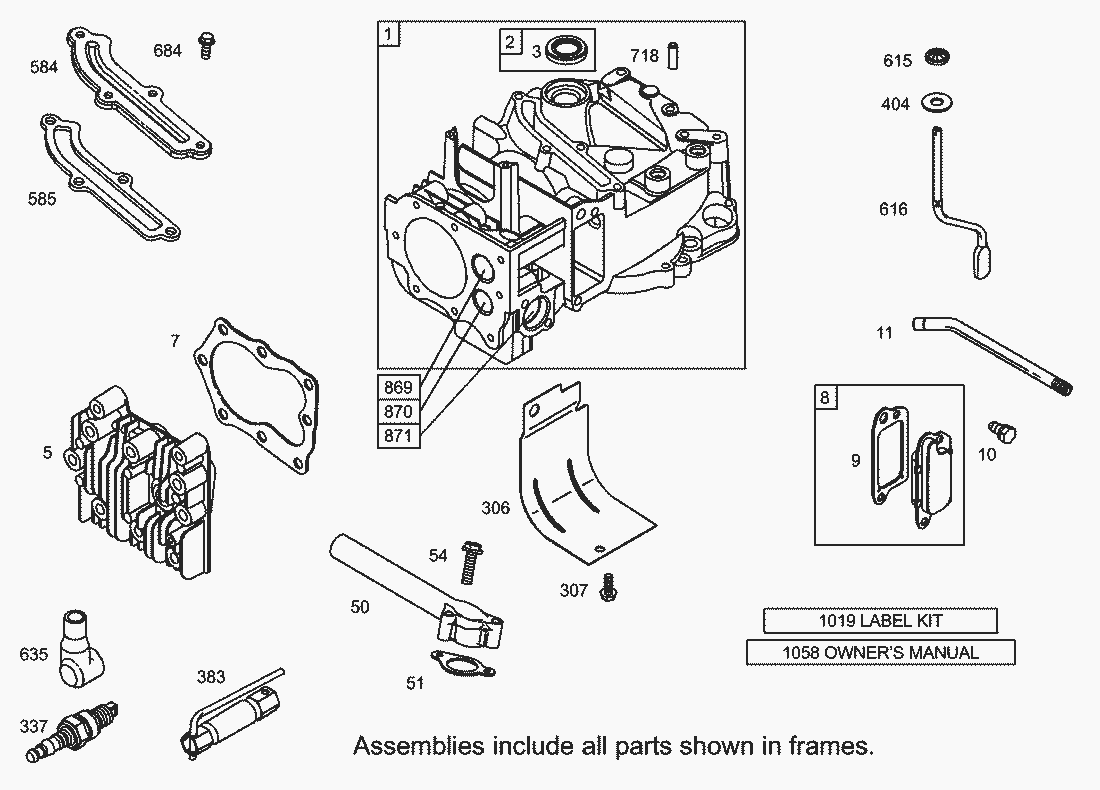

Lista de repuestos para Toro Roth / TORO Cylinder Assy. Engine B&S Model 12H802-1720-B1




Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly493260
2Bushing-Cylinder Note: Requires special tools for installation.293708
3Seal-Oil299819
5Cylinder Head691160
7Cylinder Head Gasket692249
8Breather Assembly695250
9Gasket-Breather696125
10Screw (Breather Assembly)691125
11Breather Tube691781
50Tube-Fuel Intake497465
51Gasket-Intake Elbow272199
54Screw (Intake Manifold)691650
306Shield-Cylinder690450
307Cylinder Shield690345
337Plug-Spark (Resistor Type-1-7/8 high, 47 M.M.)(Model No. 38566 only)802592
383Wrench-Spark Plug89838
404Washer(Governor Crank)690272
615Governor Shaft Retainer690340
616Crank-Governor691308
584Breather Passage Cover692342
585Breather Passage Gasket691879
635Elbow-Spark Plug66538
684Cylinder Shield690345
718Locating Pin690959
869Seat-Valve (Intake)691155
870Seat-Valve (Exhaust)690380
871Guide-Exhaust Valve Note: 63709 Guide-Intake Valve See Repair Instruction Manual262001
Guide-Exhaust Valve63709
1019Label Kit494256
1058Owner s Manual274978
Short Block696276
