> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 415/20817 > 220000001 > Carburetor Assy. Engine B&S Model 12H802-1720-B1

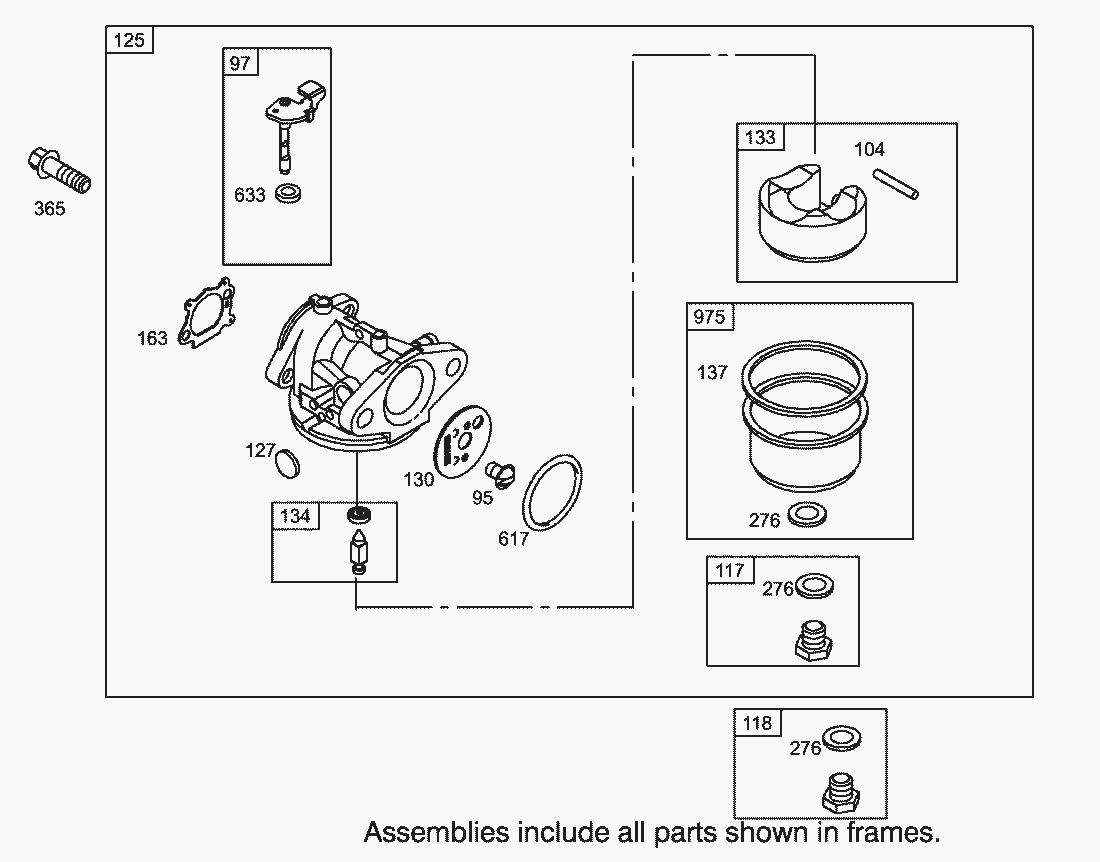

Lista de repuestos para Toro Roth / TORO Carburetor Assy. Engine B&S Model 12H802-1720-B1




Lista de repuestos


pos.descripciónNúmero de pieza
95Screw (Throttle Valve)691636
97Shaft-Throttle696565
104Float Hinge Pin691242
117Main Jet (Standard)498978
118Main Jet (High Altitude)497466
125Carburetor498170
127Welch Plug694468
130Valve-Throttle696564
133Float Assy.-Carburetor398187
134Valve-Inlet (Includes Seat)398188
137Gasket-Float Bowl693981
163Gasket-Air Cleaner272653
276Sealing-Gasket271716
365Screw (Carburetor)692524
617Seal-Fuel Intake Tube270344
633Dust Seal691321
975Bowl Assembly-Carburetor493640
