volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
16-44 HXL
>
393/71218
>
7900001
>
Clutch Assy.

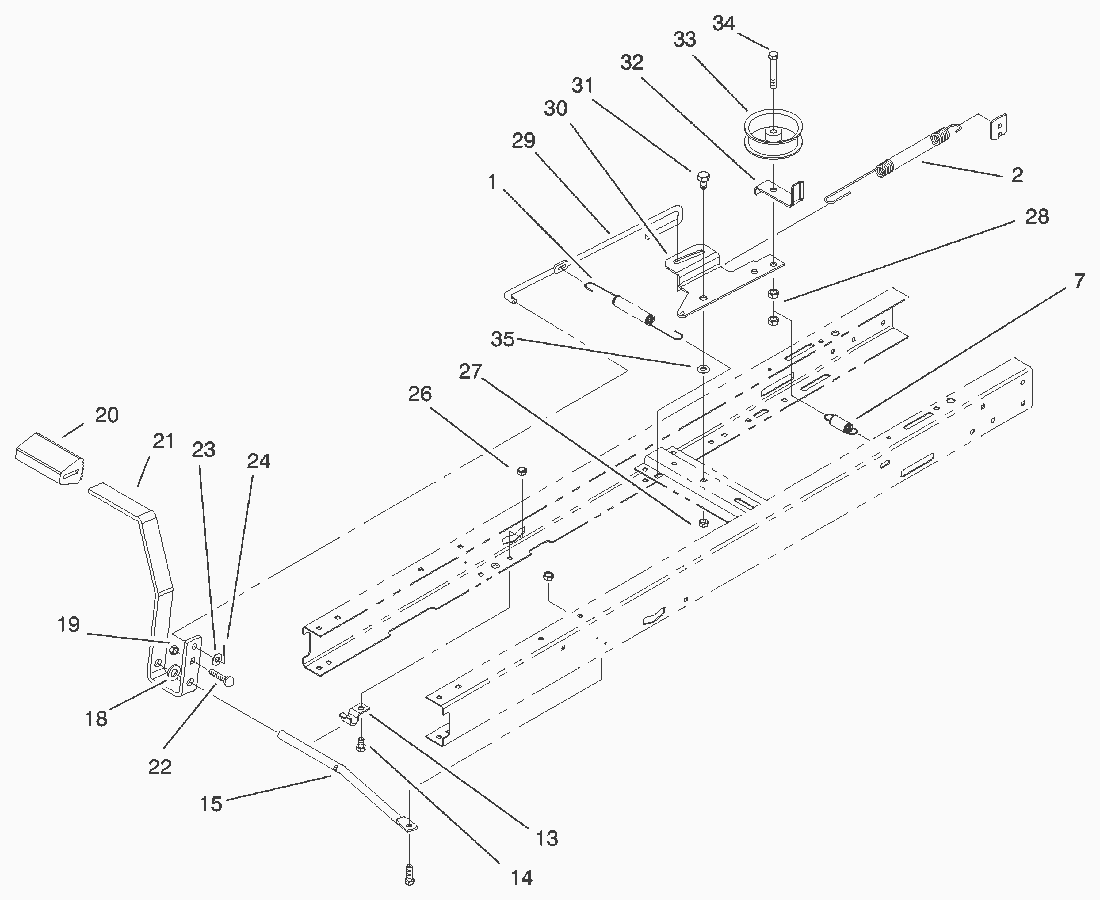

Lista de repuestos para Toro Roth / TORO Clutch Assy.
pos.
descripción
Número de pieza
1
Spring-Return
27-8890
2
Spring-Brake
88-6140
7
Spring-Extension
88-6330
13
Clamp-Shift Pivot
88-4810
14
Capscrew
322-3
15
Rod-Pedal Pivot
88-5500
18
Washer
3256-26
19
MUTTER
3296-29
20
Pad-Pedal
65-2920
21
Pedal-Clutch/Brake
88-5000-03
22
Carriage Bolt
3230-3
23
Washer
3256-23
24
Pin-Cotter
3272-10
26
MUTTER
3296-29
27
MUTTER
3296-29
28
Nut-Lock
3296-59
29
Rod-Clutch/Brake
88-5270
30
Arm-Idler
88-6070
31
Shoulder Bolt
37-8770
32
Guide-Idler Belt
88-5560
33
Pulley-Flat Idler
88-5680
34
Hex Hd. Capscrew
323-11
35
Washer
5-4460
