volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
13-38 HXL
>
392/71213
>
59100001
>

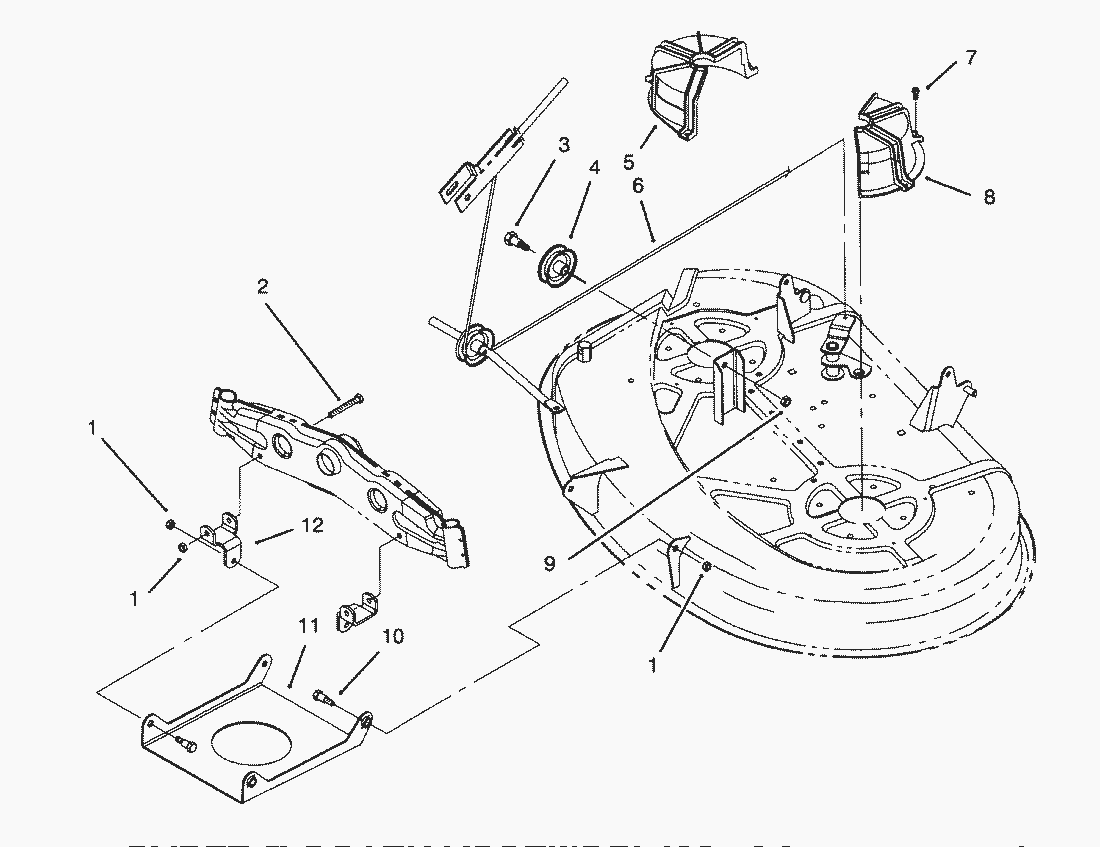

Lista de repuestos para Toro Roth / TORO
pos.
descripción
Número de pieza
1
MUTTER
3296-29
2
Screw-Cap Hex. Hd.
322-12
3
Bolt-Shoulder
23-0310
4
Pulley-Cable
88-4700
5
Guide-Deck Belt R. H.
88-4020
6
Cable-Deck Engage
88-6410
7
Self Tapping Screw
32104-76
8
Guide-Deck Belt L.H.
88-4030
9
Locknut
3296-39
10
Bolt-Shoulder
28-0540
11
Pan-Front Deck Suspension
88-4900
12
Bracket-Deck Suspension
88-4640
