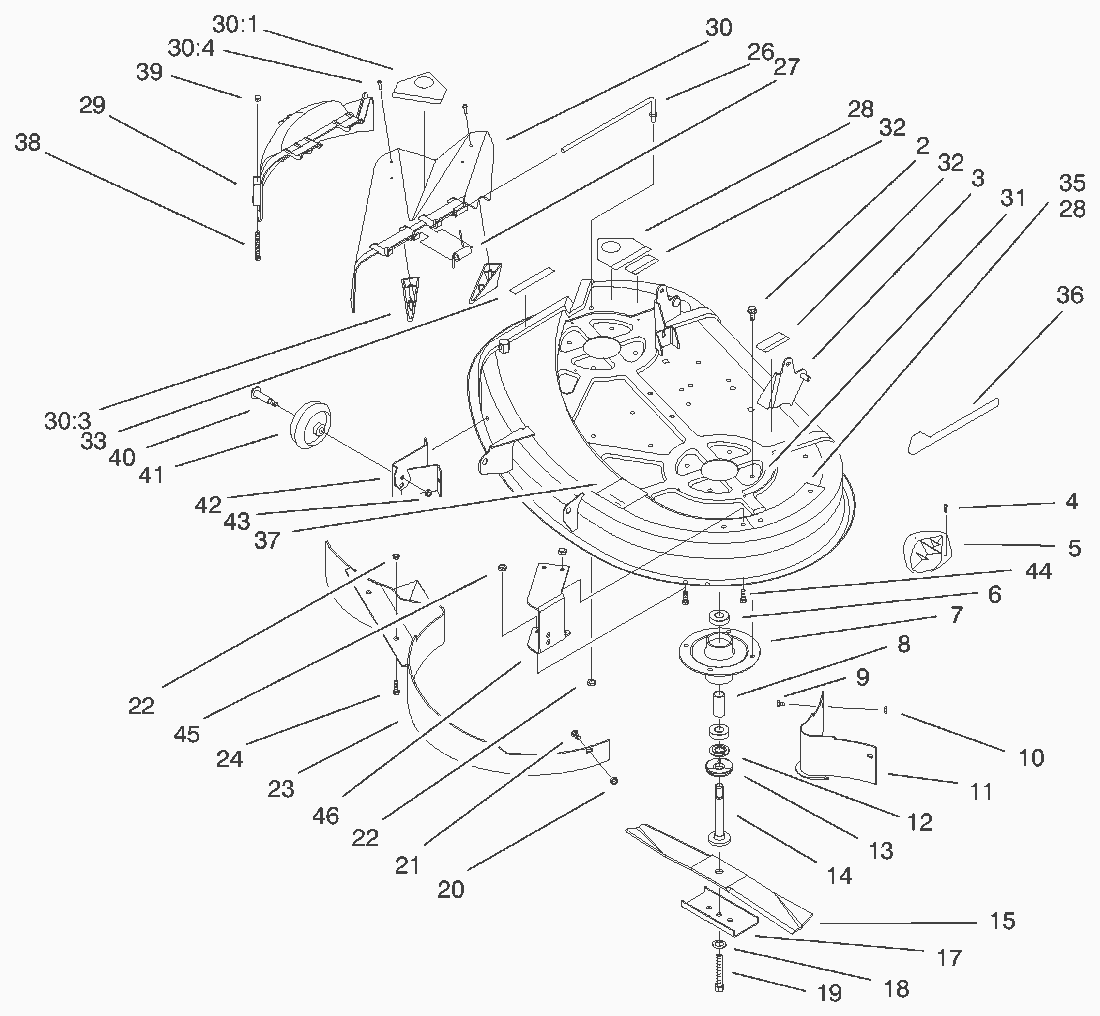

Lista de repuestos para Toro Roth / TORO

pos.	descripción	Número de pieza
2	Thread Forming Screw	32144-41
3	Deck Asm-service (Only On: 71198)	99-5846
3	Deck ASM-Service,Intl (Only On: 71220)	99-5847
4	Screw-Pan Hd.	32144-111
5	Plate-Kicker Left Rear (H.P. Models Only)	76-2160
6	Ball Bearing	38-7820
7	Housing-Spindle	88-4510
8	Spacer-Bearing	62-3661
9	Capscrew	321-4
10	MUTTER	3296-42
11	Baffle (Model No. 78226 Only)	79-1640-03
12	Spacer-Hardened	80-4380
13	Shield-Bearing	80-4360
14	Shaft-Spindle	80-4341
15	Blade- Recycler	79-3061
17	Blade-Stiffener (Model No. 78226)	80-0510-03
18	Washer-Belleville	3290-465
19	Screw-Blade	26-0671
20	MUTTER	3296-29
21	Carriage Bolt	3230-1
22	Locknut	3296-39
23	Baffle (Model No. 78226 Only)	79-1600-03
24	Bolt	323-5
26	Rod-Pivot	95-1661
27	Spring-Torsion	57-6950
28	Decal-Danger (Model No. 71200 Only)	93-7010
28	Decal-Danger	93-1122
29	Cover-Recycler	88-4430
30	Deflector Assembly (Incl. Ref.	93-7695
301	Decal-Danger	93-1122
301	Decal-Danger (Model No. 71200 Only)	93-7010
303	Kicker-C.E.(Model No. 71200 Only)	93-7696
304	Screw-Pan Hd.	93-0231
31	Decal-Shield Danger	68-3660
31	Decal-Shield Danger	93-6677
32	Decal-Warning (Model No. 71200 Only)	93-6674
32	Decal Warning	55-4300
33	Decal-Deflector Danger (Model No. 71200 Only)	93-7009
33	Decal-Deflector Danger	68-3650
35	Decal-Danger	79-3140
37	Decal-Belt Guide	93-6679
38	Capscrew	321-15
39	Capnut	32111-7
40	Bolt-Shoulder	56-6591
41	Wheel-Deck	701756
42	Bracket-Deck Wheel RH (Only On: 71217)	88-5740-03
43	Locknut	3296-39
44	Capscrew	322-3
45	MUTTER	3296-29
46	Bracket-Deck Wheel LH (Only On: 71217)	93-3896-03
