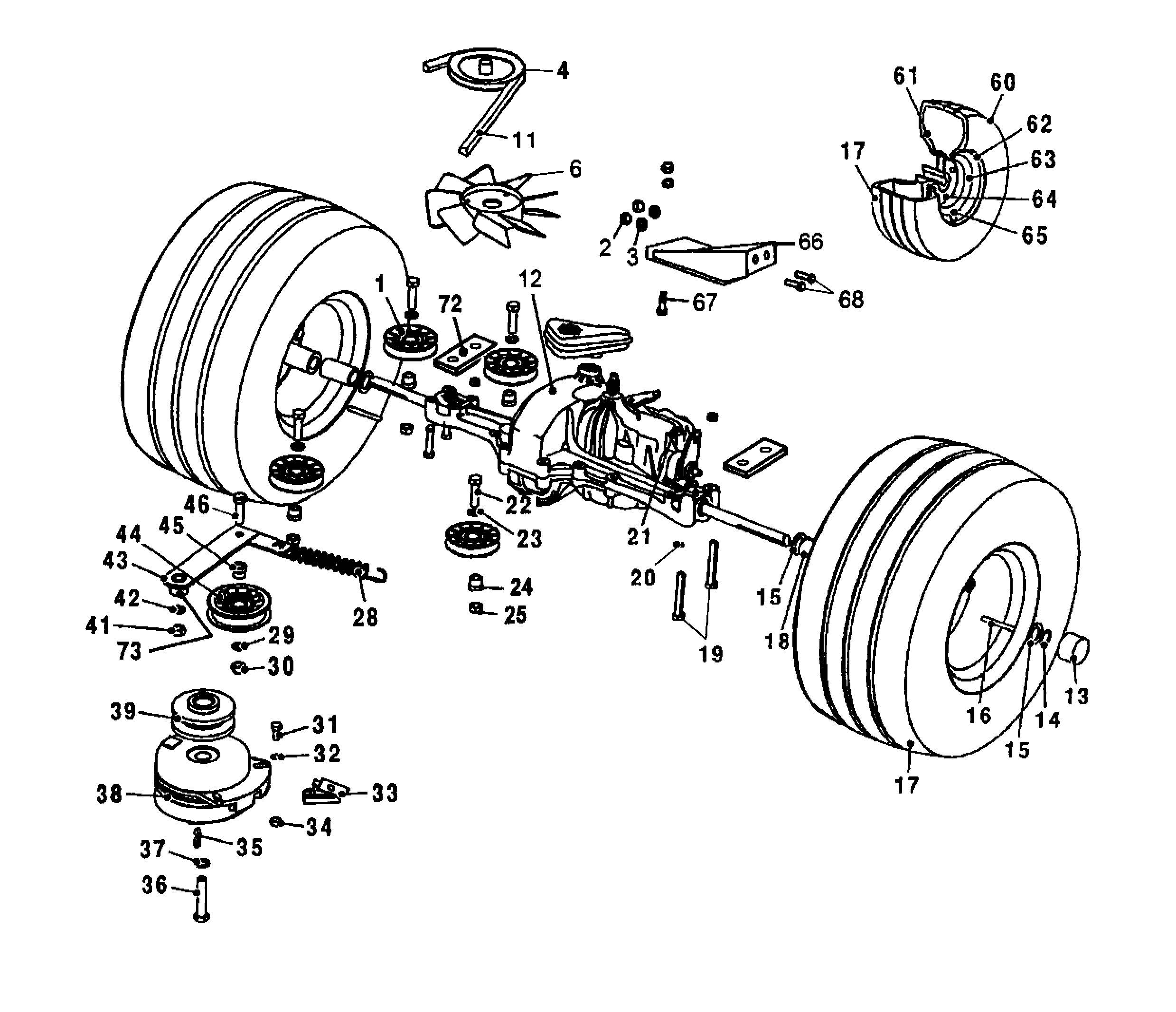

Lista de repuestos para Wolf Ride-on Mowers transmission drive

pos.	descripción	Número de pieza
1	Idler Pulley V 3000 - 3316 - Steel	6205 171
2	Hex. Nut	0016 312
3	Washer A 8,4 Din 125	0017 123
4	V-belt pulley gear, 4,5 ""	6205 179
5	Seal-Dipstick Tube	6205 513
6	Aerator	6205 168
11	V-Belt	6205 340
12	Tuff Torque K 46	6205 050
13	Cap Black	6205 307
14	Spring Clip 15 Din 6799	0022 415
15	Washer	6205 122
16	Square Key 3/16X3/16X2.5	6205 140
17	Rear Tyre Wheel Assy 20X10.00-8	6205 041
18	Distance Bush	6205 166
19	Hex Screw M10X75 Din 931 8.8	6205 575
20	Washer A 8,4 Din 125	0017 123
21	Hex. Nut	0016 312
22	Hex. Screw M10 X 40 Din 931 8.8	0010 346
23	Washer 10,5-Din 125A	0017 124
24	Bush	6205 154
25	Self-Locking Nut M10-Din 985 Cl.8	0016 316
28	Tension Spring	6205 424
29	Washer 10,5-Din 125A	0017 124
30	Self-Locking Nut M10-Din 985 Cl.8	0016 316
31	Hex Screw M8 X 20 Din 933 8.8	0010 402
32	Washer A 8,4 Din 125	0017 123
33	Fixing Device	6205 457
34	Hex. Nut	0016 312
35	Square Key 1/4X1/4X1 1/4	6205 135
36	Screw	6205 139
37	Washer Spring	6205 136
38	Electro-Magnetic Clutch	6205 030
39	Engine Pulley	6205 161
41	Hex. Nut	0016 312
42	Flat washer 8.4 DIN 9021 B	6205 568
43	Intermediate Steering Lever	6205 523
44	Idler Pulley F 3000 - 0750	6205 158
45	Bush	6205 154
46	Hex. Screw M10 X 40 Din 931 8.8	0010 346
47	Seat, Deluxe High Back Ini 1061	6205 347
60	Tyre 20X10.008	6205 310
61	Tube 20X10.008	6205 317
62	Rim 20X10.008	6205 172
63	Hub Wheel	6205 173
64	Wheel Nut	6205 550
65	Air Valve	6205 051
66	Spacer K3 200958731	6205 524
67	Screw M8X45-Din 931 8.8	0010 334
68	Hex screw M8 x 25 DIN 933 8.8	0010 395
72	Support Plate	6205 534
73	Lubricating Nipple	6205 144
