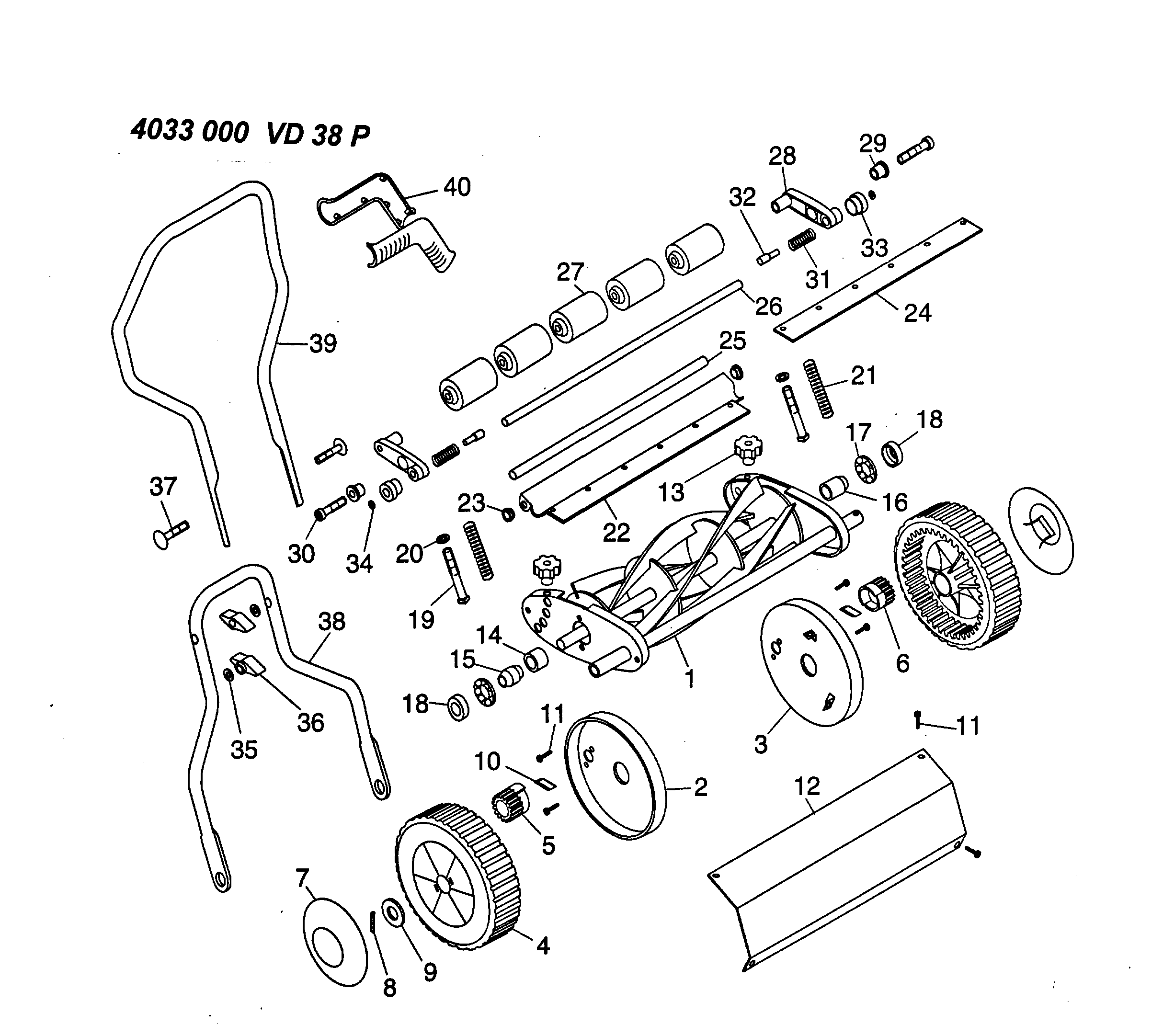

Lista de repuestos para Wolf Reel-mowers VD 38 P




Lista de repuestos


pos.descripciónNúmero de pieza
1Shaft* * *
2Cover4032 132
3Cover4032 131
4Tyre4032 123
5Pinion4032 118
6Pinion4032 507
7Hub Cap4032 116
8Washer4032 187
9Washer4032 173
10Pin4032 111
11Screw4032 168
12Branch Screen4032 128
13Handwheel4032 157
14Spring4032 110
15Cone4032 106
16Cone4032 105
17Ring4032 176
18Cover4032 504
19Screw4032 162
20Washer4032 175
21Compression Spring4032 158
22Cutter Bar4032 117
23Bush4032 113
24Blade4032 114
25Blade Shaft4032 112
26Kit-Choke Shaft4032 134
27Roll4032 138
28Roller Support4032 163
29Bush4032 190
30Screw4032 122
31Spring4032 145
32Inhibiting Pin4032 142
33Shifter4032 155
34Ring4032 180
35Washer4032 189
36Handwheel4032 166
37Screw4032 188
38Upper Handlebar4033 110
39Lower Handlebar4033 111
40Centre Handle4032 135
****Grass Collector4084 000
