Lista de repuestos para Wolf Scarifiers / Aerators UV 32 B


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3


Lista de repuestos


pos.descripciónNúmero de pieza
6Screw0012 880
9Screw0012 880
10Threaded Pin3586 016
157Feather Key0028 766
****Roller Compl.3586 040
304Retaining Clip0020 981
340Bowden Wire With Case3586 055
341Screw0012 244
342Hex. Nut0016 310
343Gear Lever4720 101
345Button4180 115
347Strap6340 314
348Clip6340 312
351Cover3568 101
353Screw M 5X400012 867
354Hex. Nut0016 310
355Screw0013 523
356Hollow Disk0017 275
357Wingnut0016 715
358Cable Tape4330 228
359Lower Handlebar3585 029
360Pipe, Right3585 127
361Pipe, Left3585 125
362Bolt3568 520
370Guide-Rope6340 014
401Upper Handlebar3586 020
402Case3568 103
403Case, right3568 102
404Lever(Replaces 6930506)3568 104
405Bolt3568 213
406Connecting rod, upper3568 018
407Connecting Rod, Middle3568 132
408Screw0013 640
409Wingnut3568 308
410Connecting Rod, Lower3568 134
411Connector3568 111
412Screw0012 864
413Screw0012 625
414Switch-Stop3586 051
415Screw0015 652
416Bushing4940 105
417Bracket Bracket4940 107
418Clamp-Casing4720 105
419Distance Disc4240 205
420Bolt4720 109
421Screw0012 886
422Screw0012 211
423Nut0016 641

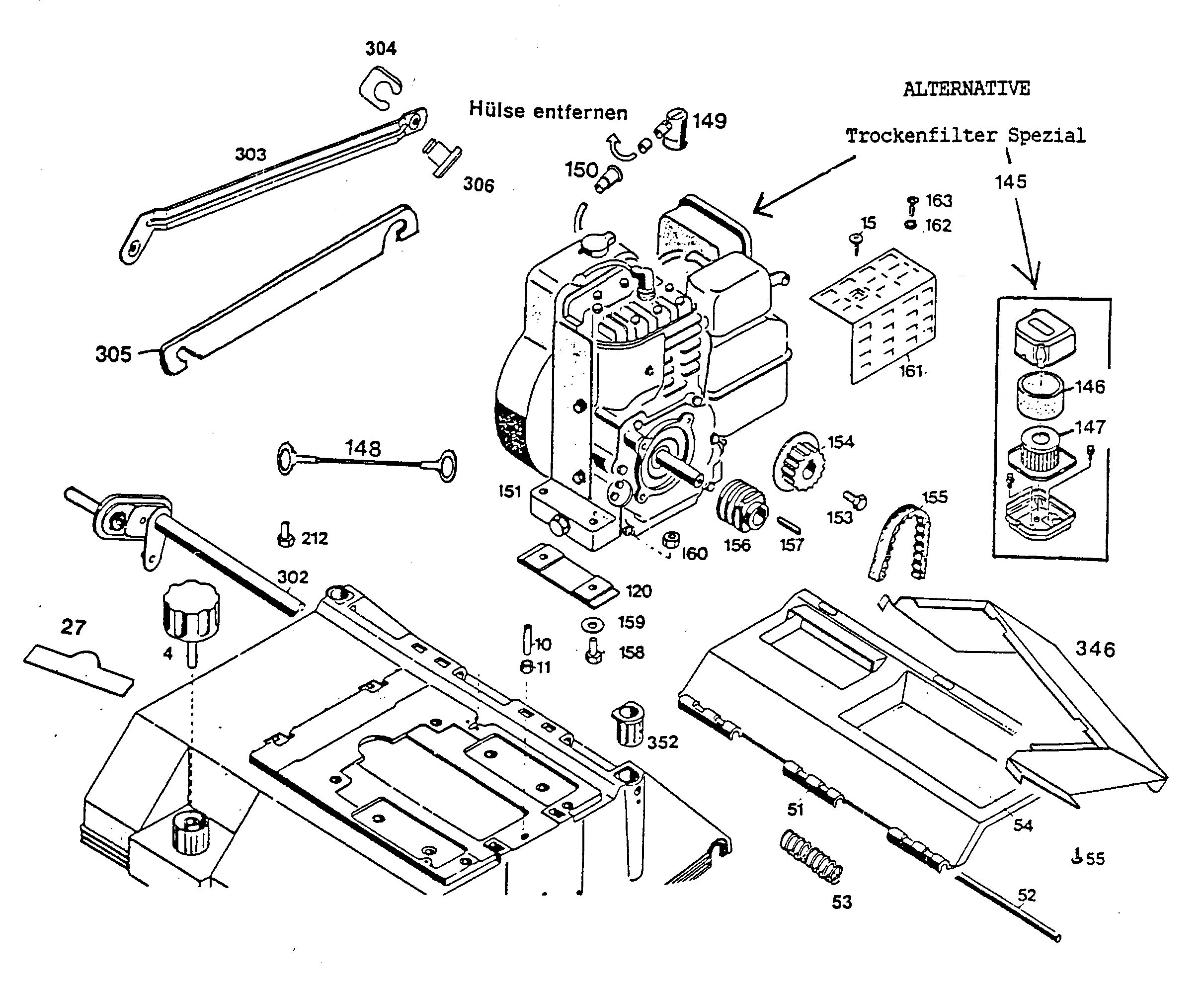

Lista de repuestos


pos.descripciónNúmero de pieza
4Handwheel3568 011
27Wolf-Garten - Label0051 145
51Rear Flap3568 325
52Pivot Pin3568 208
53Spring3585 115
54Safety Label3586 226
55Screw0012 941
120Insulator3588 209
145Air Cleaner Compl.2053 051
146Filter.Pre Cleaner2053 100
147Air Cleaner2053 101
148Cable3586 206
149Spark Plug Socket1015 300
150Boot-Spark Plug1015 301
151Motor2055 000
154Crowm Gear3588 511
155Toothed Belt0039 005
156Connector-Fuel3588 204
158Hex. Screw M8X500010 392
159Washer 8,4X30X2,50017 099
160Hex. Nut0016 312
161Muffler Guard3588 212
162Washer Spring0017 907
163Screw0015 655
302Axle Rear3568 065
303Rod3568 131
305Rod3568 120
306Bolt3568 524
346Deflector-Muffler3585 121
352Bearing Shell3568 017
Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis3568 320
2Reinforcing3568 010
3Screw0012 884
5Rupper Sheet3568 206
7Clip3568 505
12Insulator3568 209
13Console3588 211
14Screw0012 890
16Washer Spring0017 909
17Hex. Screw M 8X120010 384
18Washer0017 289
19Screw0012 874
20Toothed Belt Cover3568 303
21Screw0012 885
22Screw0012 880
23Guard-Flywheel3568 112
24Console3568 113
25Screw0010 893
26Nut M 60016 353
153Screw0010 892
201Blade3568 400
202Shaft3568 507
203Distance Bush3585 510
204Cover3568 509
205Ring3568 512
206Bearing Shell3568 017
207Bearing0023 148
208Distance Bush3576 406
209Starter Dog3576 407
210Pulley-Camshaft3576 515
214Tolerance Washer 4 Qty3586 110
220Distance Bush3586 501
252Wheel 200 Mm Dia.6340 051
253Screw0010 893
255Cover6340 512
301Axle Front3568 063
