Lista de repuestos para Wolf Scarifiers / Aerators UV 30 EL


Lista de repuestos 1
Lista de repuestos 2
Lista de repuestos 3

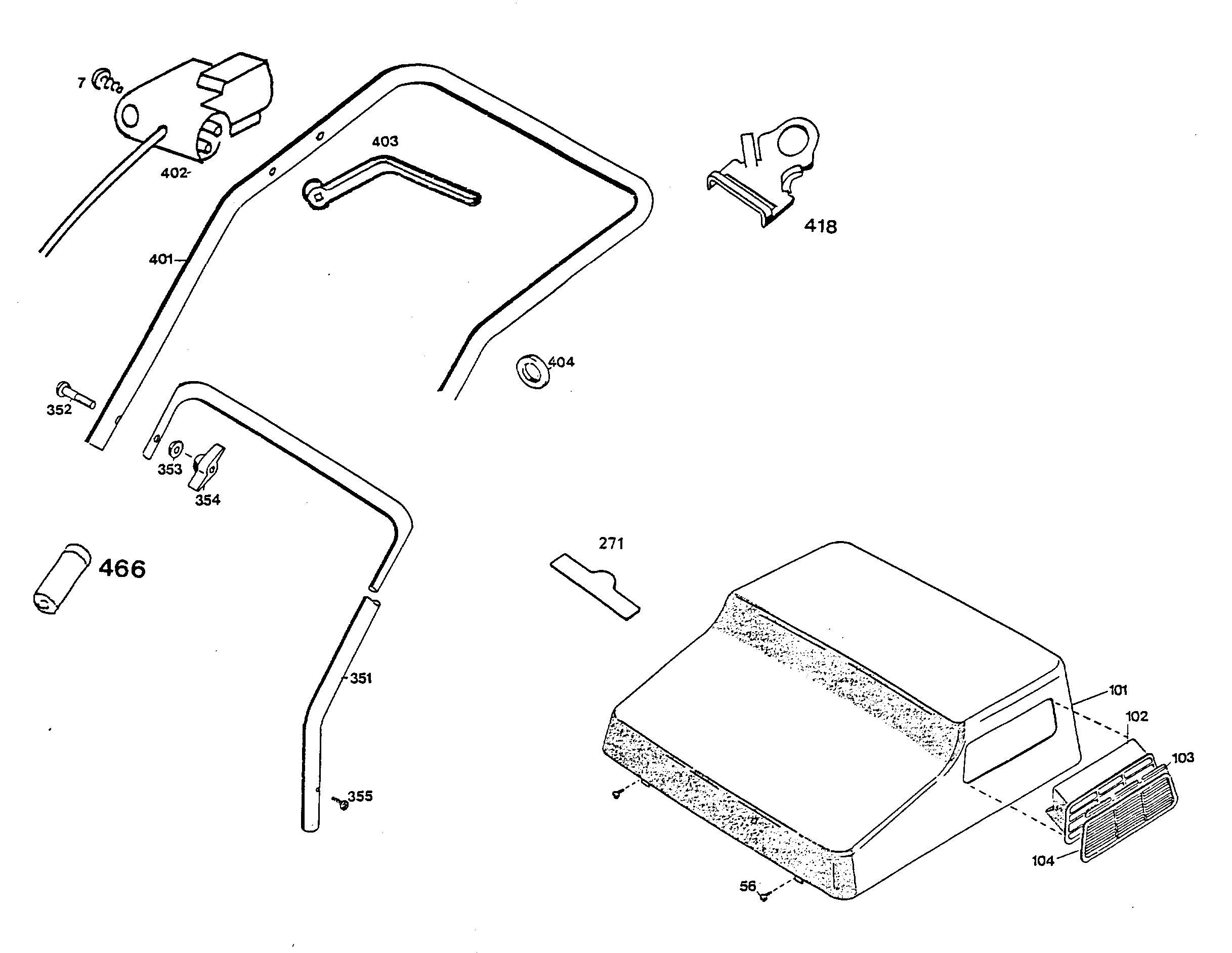

Lista de repuestos


pos.descripciónNúmero de pieza
56Screw0015 684
101Cover Plate3567 051
102Grid3576 302
103Grid3576 311
104Grid3576 310
****Roller3567 050
214Washer Spring0017 908
271Wolf-Garten - Label0051 145
271Label0051 141
271Label0051 142
****Axle Front (With Wheels)3567 060
****Axle Rear (With Wheels)3567 065
351Lower Handlebar3567 120
352Screw0013 525
353Hollow Disk0017 275
354Wingnut0016 715
355Screw0015 656
401Upper Handlebar3567 025
402Switch-Key3567 041
402Switch Switzerland Only3567 043
402Switch3567 052
403Handle4932 100
404Cable Guide Clip4912 304
418Cable Guide4936 323
466Closing Cap6340 125
****Poly Bag With Operator Instruct.3567 029
****Instruction Manual0054 042
****Operator manual3567 239
****Safety Label3585 223

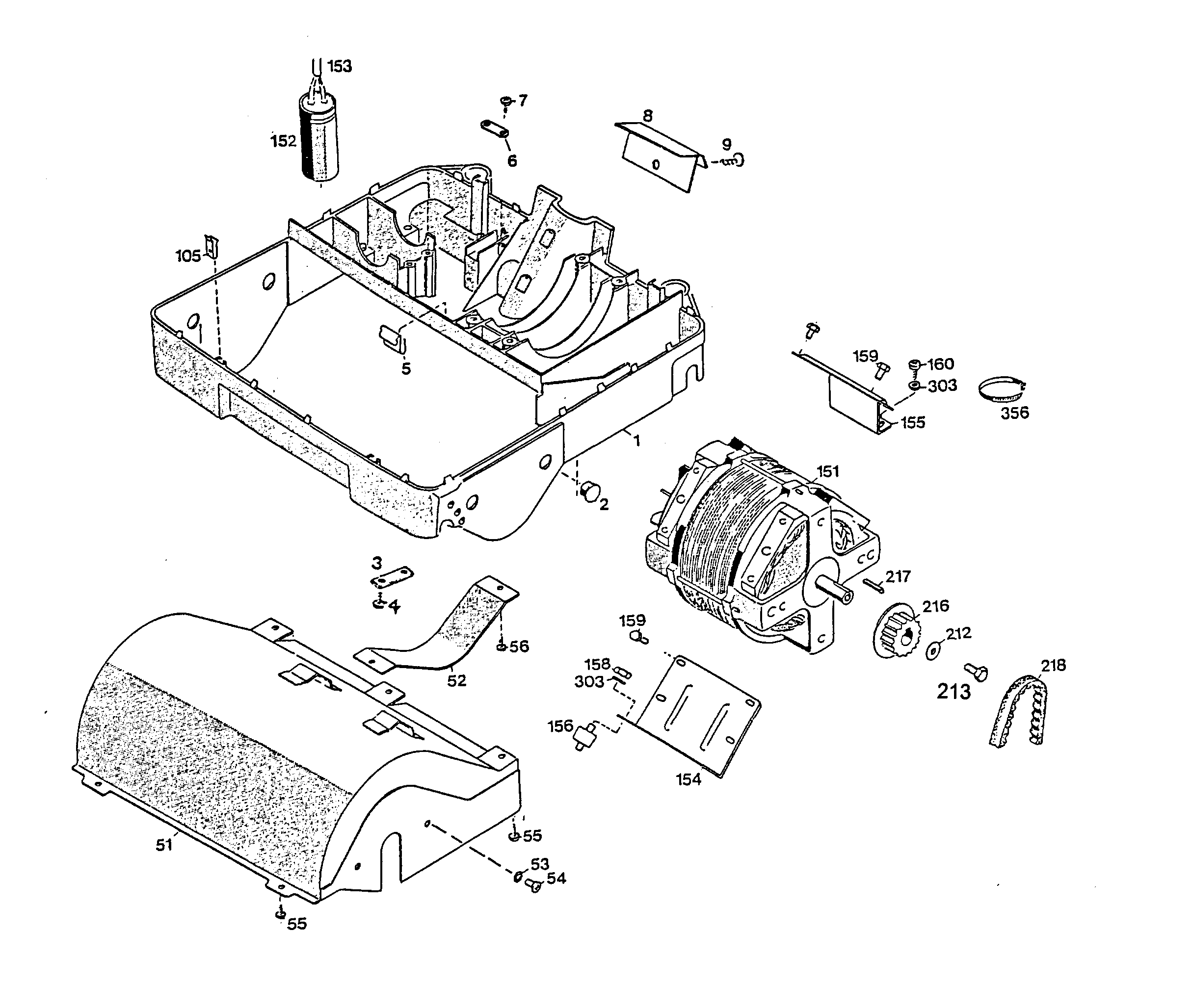

Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis3567 320
2Plug3567 303
3Clip3568 505
4Screw0012 885
5Cable fastener3576 235
6Clamp-Casing4557 208
7Screw0012 625
8Cover3567 130
9Screw0015 659
51Roller case3567 016
52Guard-Flywheel3567 133
53Washer Spring0017 908
54Screw0012 874
55Screw0012 936
105Clip4380 206
151Motor1101 003
152Condenser 12Uf1050 042
153Wire Connector3567 214
154motor console3576 245
155motor console3567 246
156Insulator3576 033
158Nut0016 311
159Screw0010 930
160Screw0012 890
216Pulley-Camshaft3576 501
217Feather Key0028 761
218Toothed Belt0039 003
303Washer0017 121
356Cable Tape4330 228

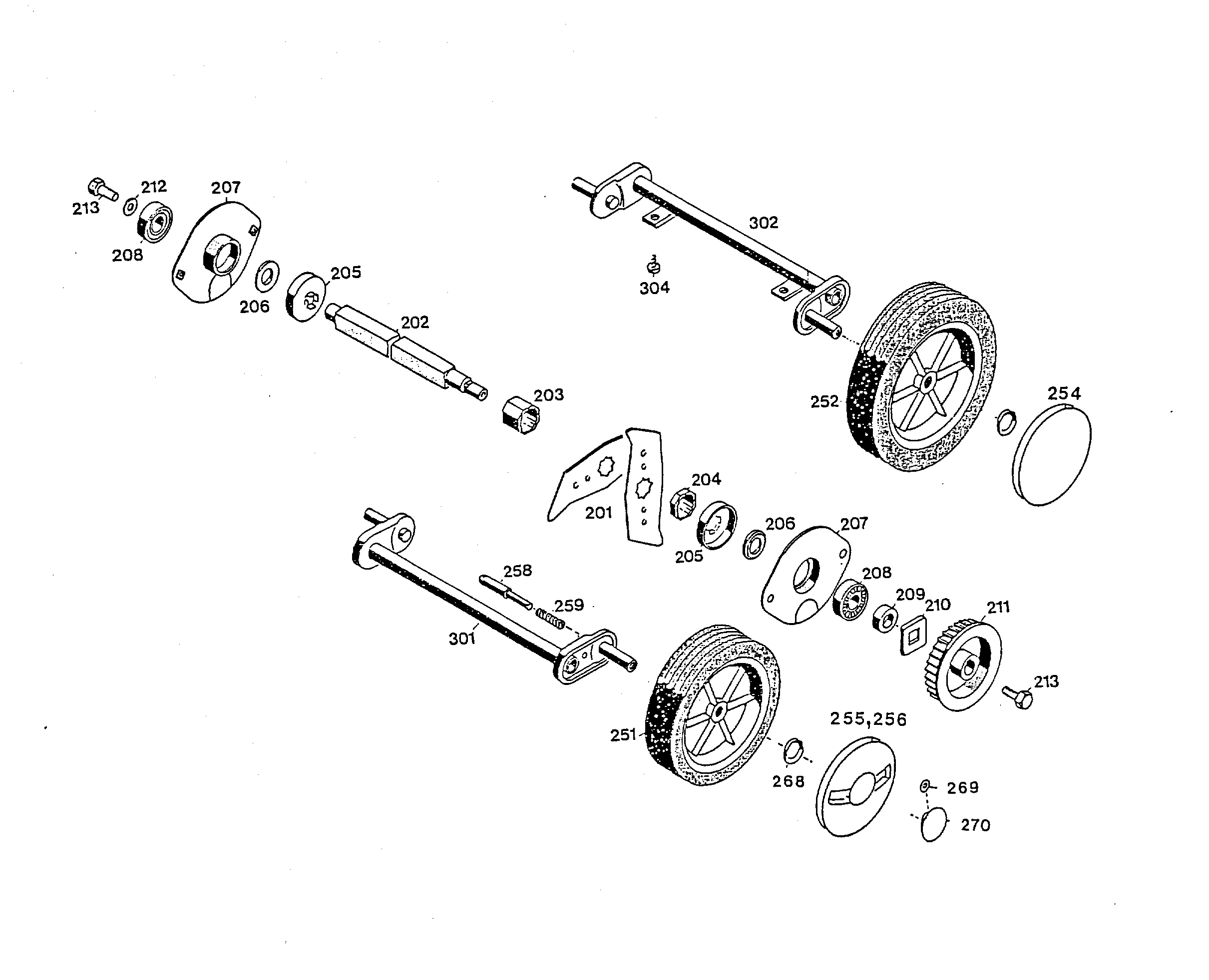

Lista de repuestos


pos.descripciónNúmero de pieza
201Blade3568 400
202Kit-Choke Shaft3567 507
203Distance Bush3567 511
204Distance Bush3567 510
205Cover3568 509
206Ring3568 512
207Bearing Shell3576 510
208Bearing0023 148
209Distance Bush3576 406
210Starter Dog3576 407
211Pulley-Camshaft3576 515
213Screw0010 892
251Wheel 130 Mm Dia.4932 500
252Wheel 170 Mm Dia.4916 501
254Hub cap 170 mm4936 531
255Cover With Grip4932 520
256Cover4932 521
258Bolt4930 506
259Spring4331 217
268Speedfix Retainer0020 698
269Speedfix Retainer0020 695
270Button4932 512
301Axle Front3567 032
302Axle Rear3567 034
304Screw0015 659
