> Scarifiers / Aerators > Scarifiers > Hand > UR-M3 > UR-M3

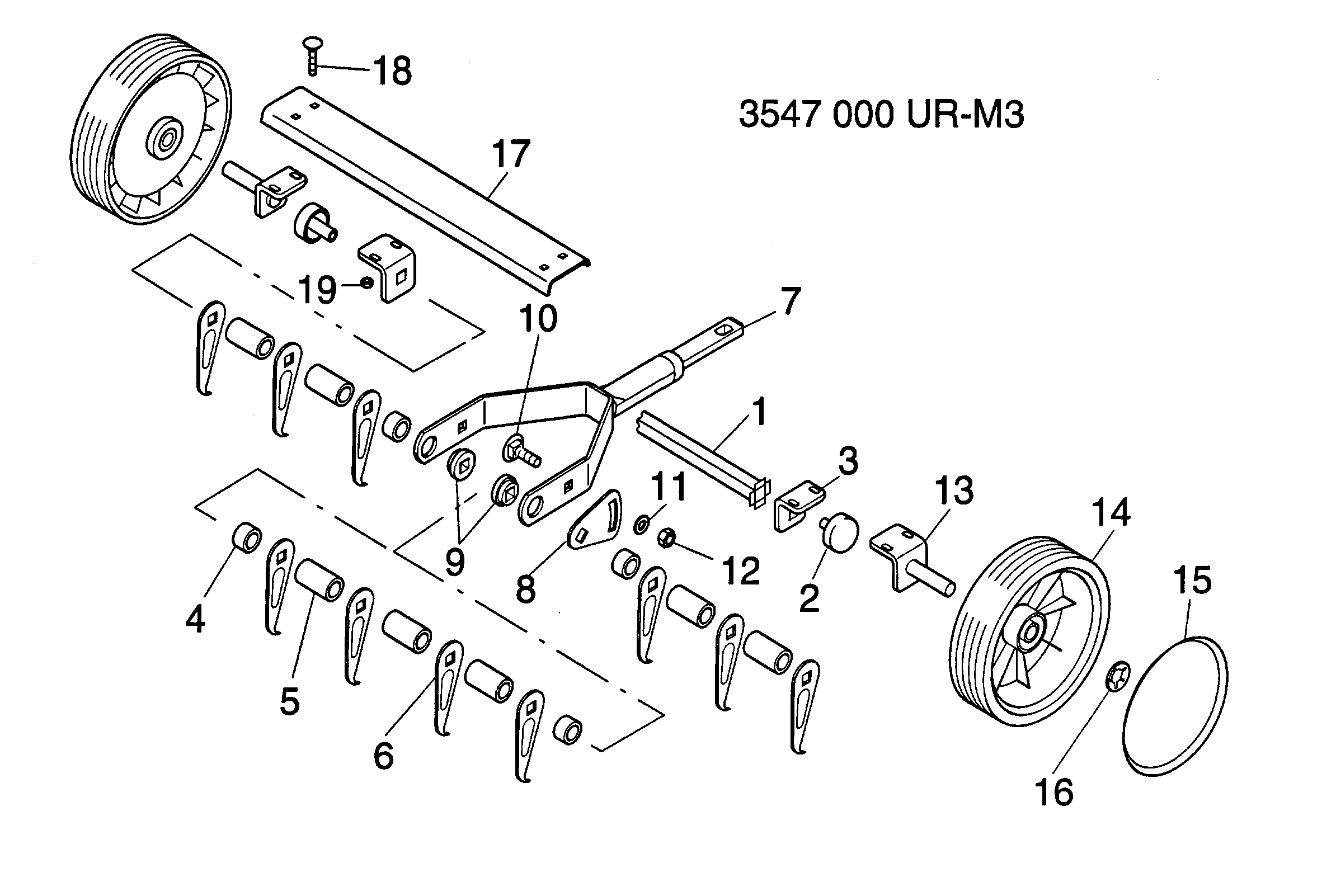

Lista de repuestos para Wolf Scarifiers / Aerators UR-M3




Lista de repuestos


pos.descripciónNúmero de pieza
1Axle3545 201
2Plug3545 202
3Angle3570 201
4Distance Bush3571 202
5Distance Bush3572 201
6Blade3572 401
****Collar1315 101
****Handle Half Upper, Red1647 100
****Handle Half Lower, Red1647 111
****Support3547 014
7Support With Handle Half3547 011
8Adjuster3547 200
9Bush3571 203
10Screw0013 650
11Washer A 8,4 Din 1250017 123
12Nut0016 378
13Angle3547 010
14Wheel4916 500
15Cover4936 521
16Speedfix Retainer0020 698
17Cover Plate3569 300
18Screw0013 631
19Hex. Nut M 50016 210
