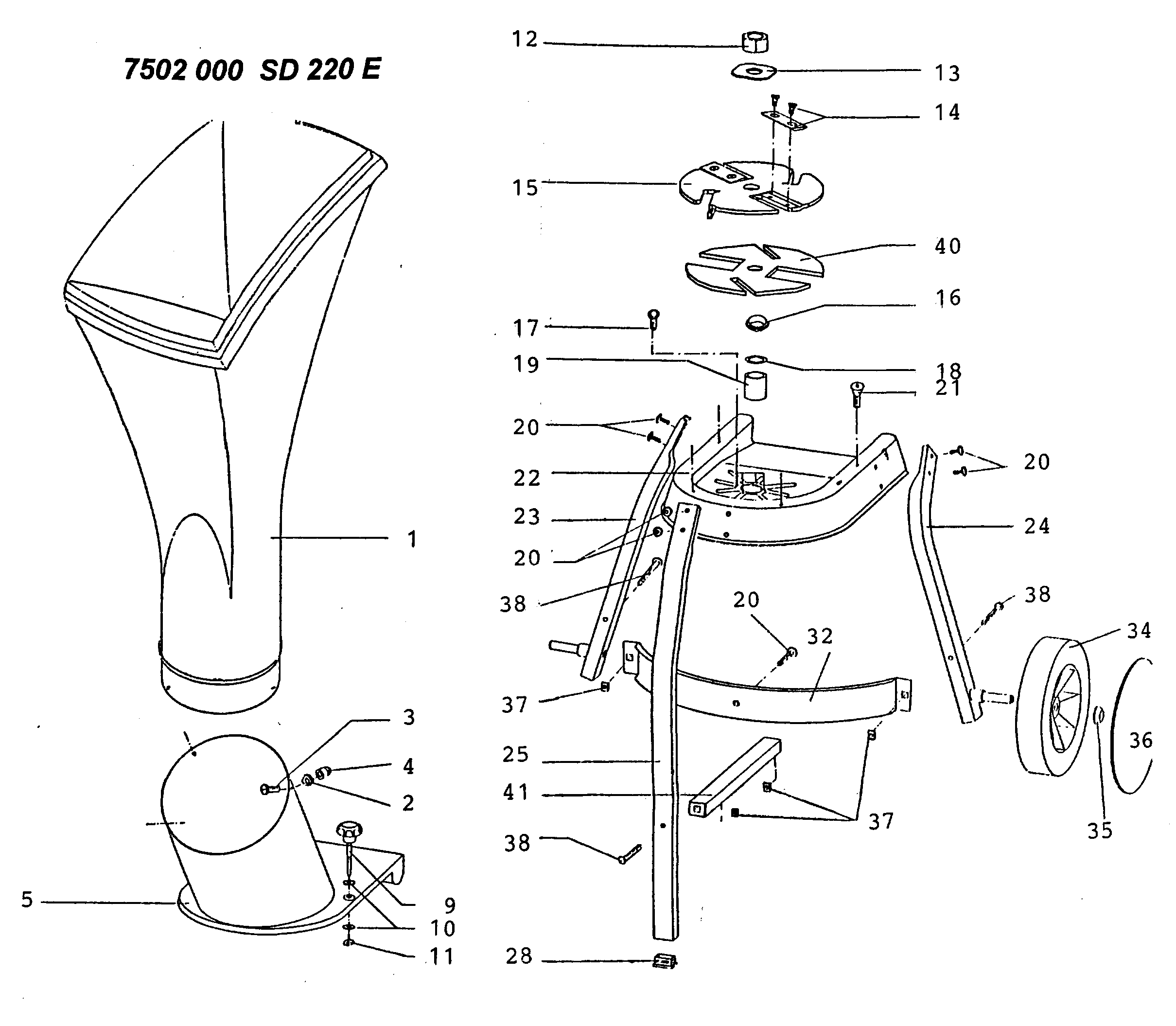

Lista de repuestos para Wolf Shredders SD 220 E

pos.	descripción	Número de pieza
1	Hopper Sd220E	7502 010
2	Hex. Nut	0016 310
3	Screw	7502 100
4	Cap	7502 303
5	Housing, Upper	7502 111
9	Hand Wheel Release	7500 105
10	Washer	0017 289
11	Circlip	0022 408
****	Screw	7500 011
12	Hexagon Nut M20	7500 100
13	Distance Plate	7500 115
14	Blade Set Sm-A	7700 070
15	Blade Support Compl.	7500 040
16	V-Ring V-28S	7500 102
17	Self-Locking Screw M8X12	7500 104
18	Shim Ring 20X28X1	7500 101
18	Washer	7500 109
19	Spacing Tube	7500 116
20	Oval Head Screw	7500 108
21	Flat Head Bolt	7500 103
22	Housing Base Plate	7500 111
23	Leg Supportright (Sd160E)	7502 112
24	Leg Supportleft (Sd160E)	7502 113
25	Leg Supportrear (Sd160E)	7502 114
****	Bearing shield with brake pad	7500 120
****	Bearing shield	7500 121
****	Flange	7500 122
****	Brake	7500 123
30	Glider	7502 302
32	Axle Sd220	7502 115
34	Wheel 200 Mm Dia.	7502 500
35	Starlock Retainer	7502 117
36	Hub Cap	7502 501
37	Nut M6	7502 101
38	Socket Head Screwm6X40 Plated	7502 102
40	Washer	7502 110
41	Axle Stay (Sd180E)	7502 116
