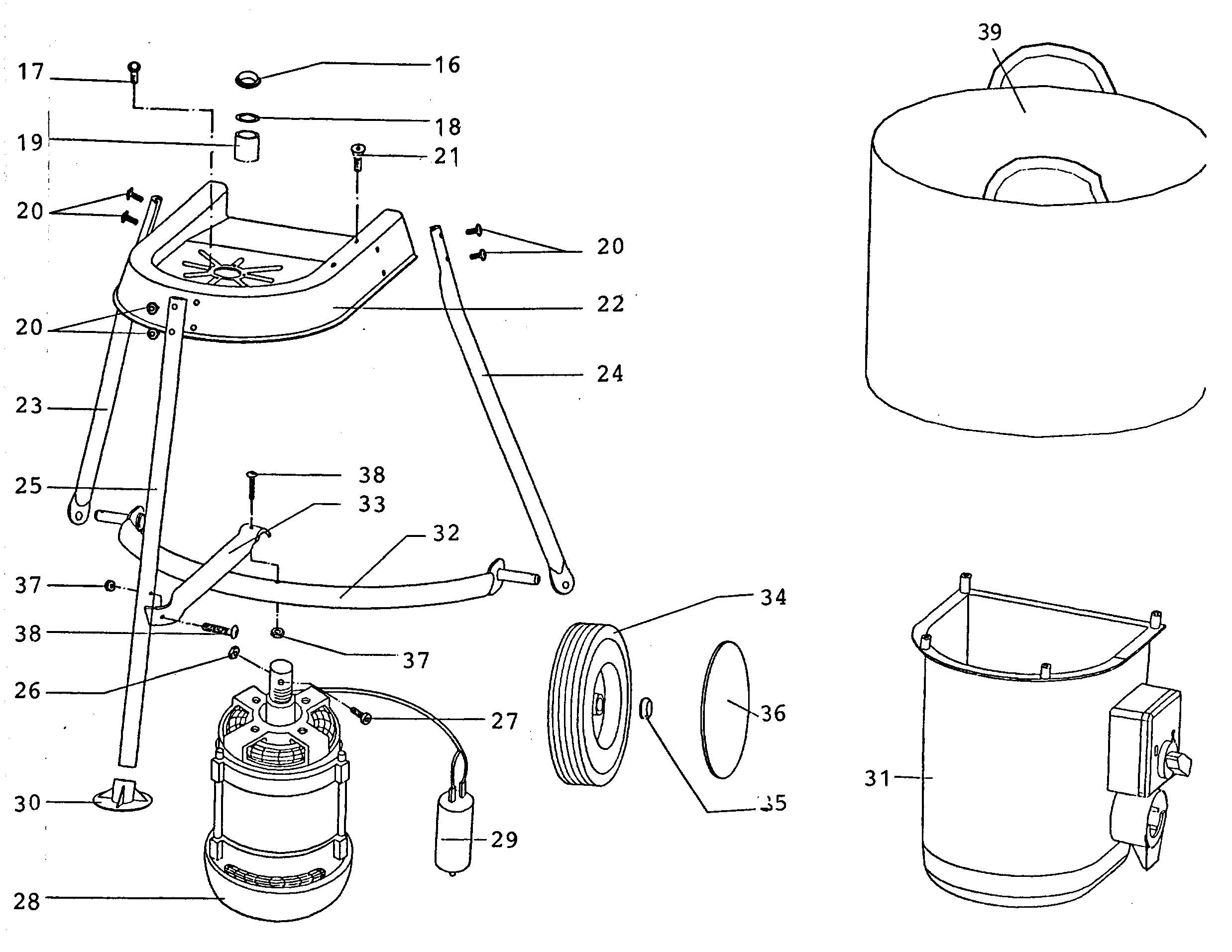

Lista de repuestos para Wolf Shredders SD 180 E


Lista de repuestos 1
Lista de repuestos 2


Lista de repuestos


pos.descripciónNúmero de pieza
1Hopper7500 010
2Clips-Nut-Holder M57500 107
3Bolt (Shredders)7500 106
4Washer A5,3 Din 125-St0017 122
5Housing, Upper7502 111
9Hand Wheel Release7500 105
10Washer0017 289
11Circlip0022 408
****Screw7500 011
12Hexagon Nut M207500 100
13Distance Plate7500 115
14Blade Set Sm-A7700 070
15Blade Support Compl.7500 040
****Bearing shield with brake pad7500 120
****Bearing shield7500 121
****Flange7500 122
****Brake7500 123
Lista de repuestos


pos.descripciónNúmero de pieza
16V-Ring V-28S7500 102
17Self-Locking Screw M8X127500 104
18Shim Ring 20X28X17500 101
18Washer7500 109
19Spacing Tube7500 116
20Oval Head Screw7500 108
21Flat Head Bolt7500 103
22Housing Base Plate7500 111
23Leg Supportright (Sd160E)7501 112
24Leg Supportleft (Sd160E)7501 113
25Leg Supportrear (Sd160E)7501 114
26Hex. Nut0016 310
27Cheese Head Screw M5X200011 312
28A.C. Motor7501 060
29Condenser7500 130
30Foot Support Sd160/1807500 302
31Motor Covering Cap7501 301
32Axle7501 110
33Axle Stay (Sd180E)7501 111
34Wheel 200 Mm Dia.7502 500
35Starlock Retainer7502 117
36Hub Cap7502 501
37Nut0016 311
38Screw7501 100
39Canvas Bag (Shredder)7502 131
