UV 38 B
>
Motor, Blade

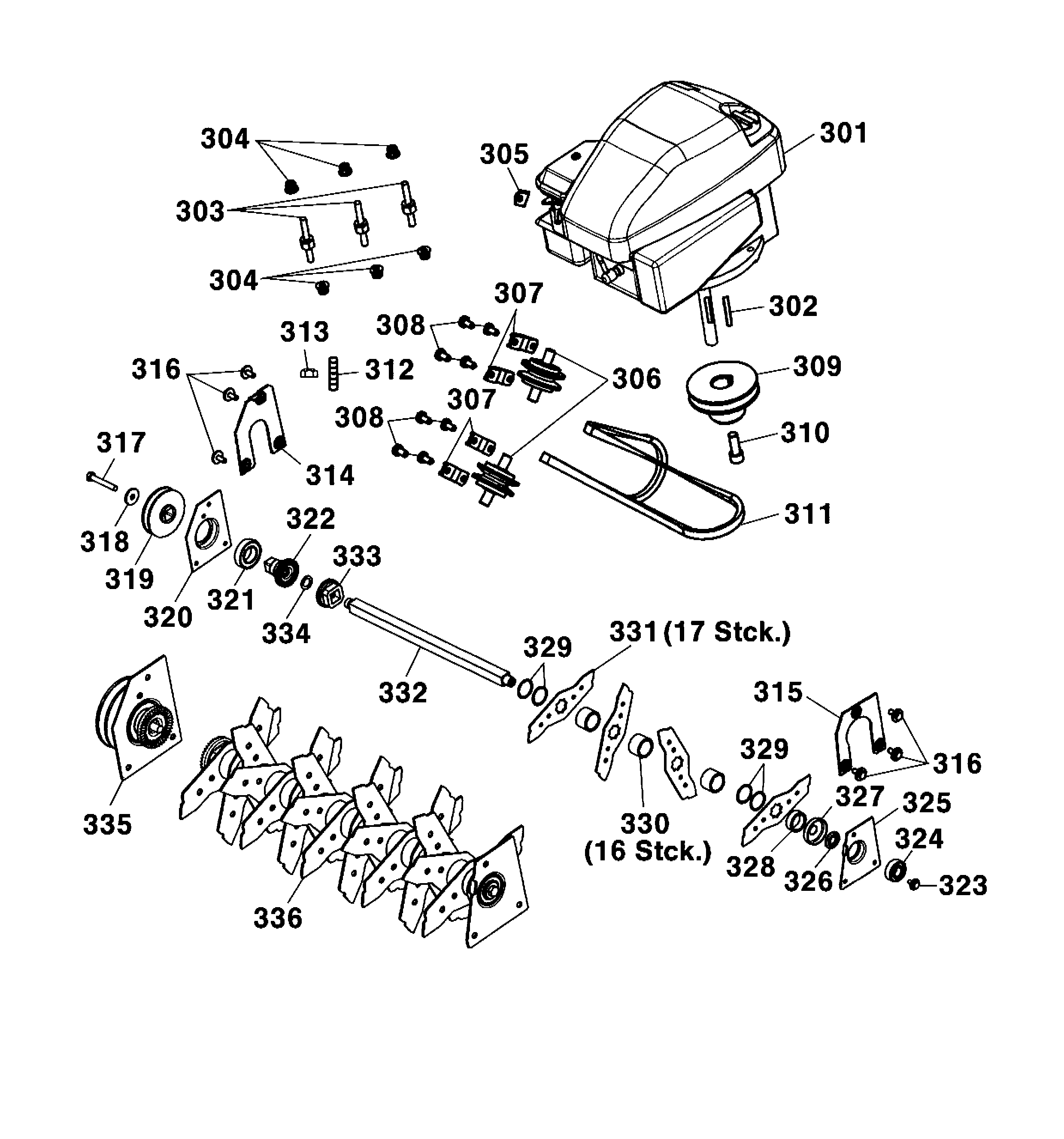

Lista de repuestos para Wolf Scarifiers / Aerators Motor, Blade
pos.
descripción
Número de pieza
301
Engine Quattro 40 S
2056 060
302
Woodruff Key
0028 775
303
Stud Bolt, Short
6450 170
304
Nut
0016 385
305
Clamp-Casing
4941 207
306
Axle
3638 035
307
Clip
3638 309
308
Screw M6X12
0012 609
309
V-Belt Pulley
3638 040
310
Screw
6110 414
311
Drive Belt Fo-Z 10/6X982 Li
0039 217
312
Threaded Pin
0014 358
313
Nut
0016 311
314
Mounting Plate, Right
3638 140
315
Mounting Plate, Left
3638 142
316
Screw
0010 681
317
Screw
0010 338
318
Washer
0017 111
319
V-Belt Pulley
3638 100
320
Bearing Flange, Right
3638 101
321
Bearing
0023 097
322
Clutch-Drive
3638 103
323
Screw
0010 892
324
Bearing
0023 148
325
Bearing Flange, Left
3638 102
326
Ring
3568 512
327
Cover
3568 509
328
Distance Bush Outside Right, Black
3638 308
329
Tolerance Washer 4 Qty
3586 110
330
Distance Bush
3585 510
331
Blade
3638 400
***
Blades Set Uv-Evn Compl.
3638 095
332
Shaft
3638 104
333
Starter Dog
3638 105
334
Circlip
0020 013
335
Rotor drive hub assy. compl.
3638 061
336
Rotor Assy. C/W Left Hand Bear.
3638 062
***
Rotor & Hubs Assys 335+336
3638 060
***
Tk 38 Debris Collector
3638 065
***
Safety Label
3586 226
***
Label
3638 205
***
Wolf-Garten
0051 123
***
Poly Bag With Instr. Manual
3638 025
***
Instruction Manual
0054 166
