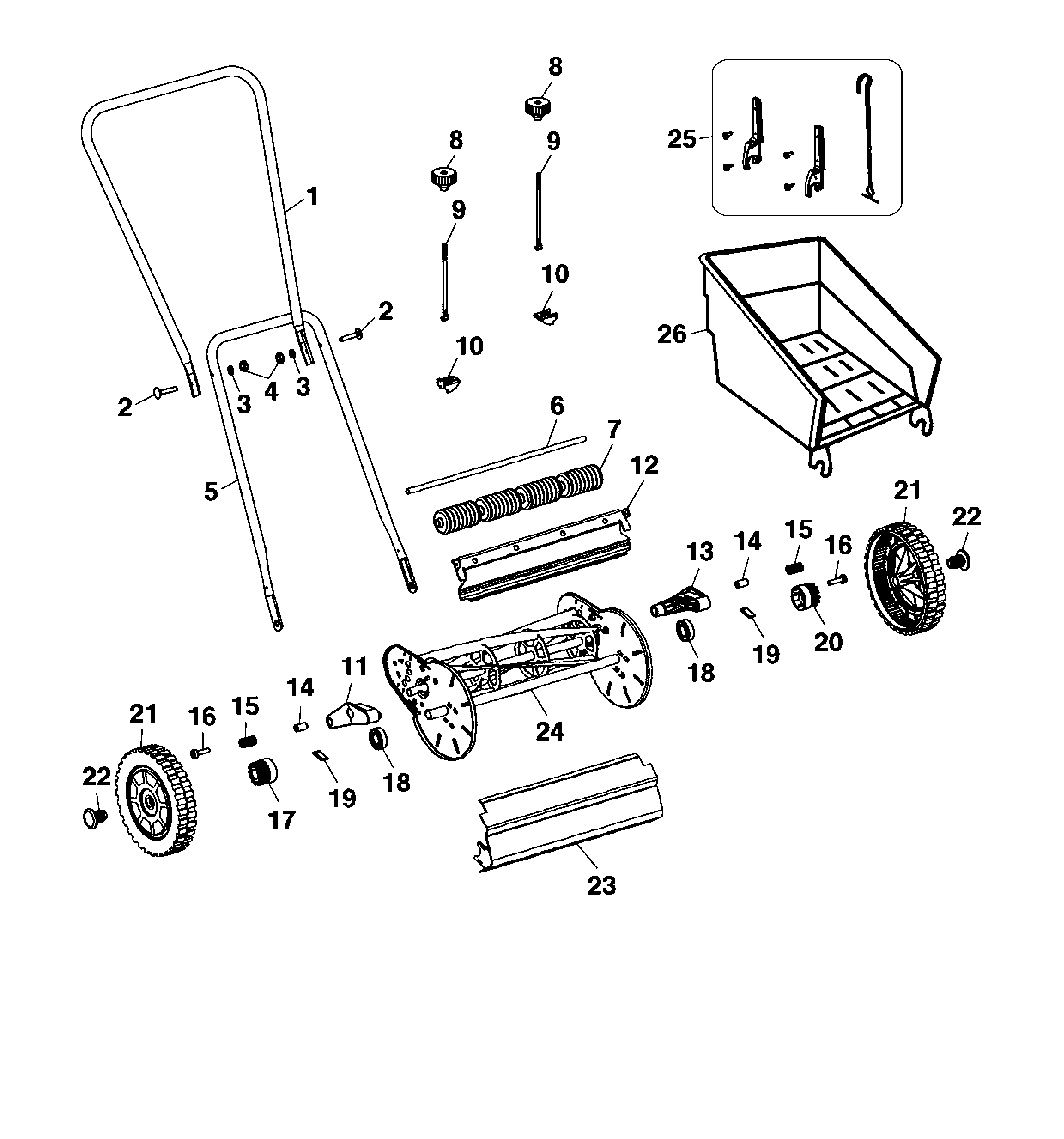

Lista de repuestos para Wolf Reel-mowers Handmower VD 38 S

pos.	descripción	Número de pieza
1	Upper Handlebar	4037 109
2	Screw	4030 121
3	Washer	4037 110
4	Nut	4037 111
5	Lower Handlebar	4038 112
6	Round Rod	4038 113
7	Roll	4032 108
8	Handwheel	4037 114
9	Bolt	4037 115
10	Fixing Device, For Adjusting	4037 116
11	Height Adjusting Arm, Right Hand	4030 316
12	Blade	4038 117
13	Height Adjusting Arm, Left Hand	4030 317
14	Spacing Tube	4030 312
15	Spring	4030 132
16	Screw	4037 118
17	Pinion, Right	4037 119
18	Bearing	4030 133
19	Dowel Pin	4037 120
20	Pinion, Left	4037 121
21	Wheel	4038 311
22	Insert-Grip	4030 310
23	Cover Polymer	4038 122
24	Shaft	* * *
25	Poly Bag With S.-Assembly	4038 015
26	Grass Collector	4084 000
***	Poly Bag With S.-Assembly	4037 030
***	Instruction Manual	4037 200
