> Scarifiers / Aerators > Scarifiers > Electro > UV > UV 34 E > Handlebar, Height-adjustment

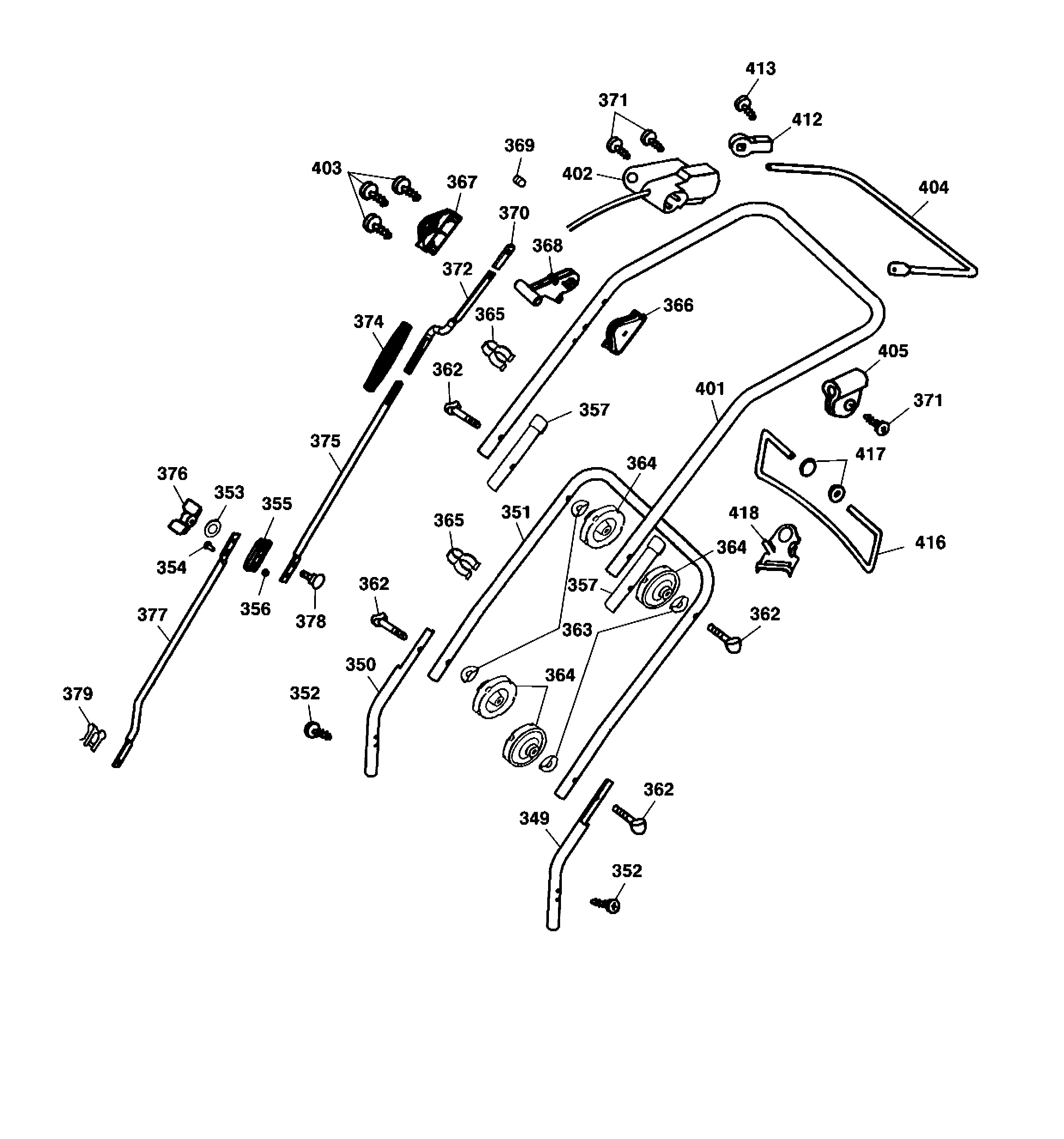

Lista de repuestos para Wolf Scarifiers / Aerators Handlebar, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
349Handlebar Support, Left3634 125
350Pipe, Right3634 127
351Lower Handlebar3634 123
352Screw0015 660
353Washer0017 290
354Screw0012 864
355Link-Counterweight3638 312
356Hex. Nut0016 310
357Closing Cap6340 125
362Connecting Screw4901 101
363Hollow Disk0017 275
364Handwheel4936 022
365Cable Clamp4950 307
366Case, Left3632 323
367Case, Right3632 322
368Lever3632 318
369Bolt3568 213
370Insulating Shell3634 340
371Screw0012 625
372Connecting Rod, Upper3634 146
374Height Adjusting Nut3638 311
375Connecting Rod, Middle3634 148
376Wingnut3568 308
377Connecting Rod, Lower3634 152
378Screw0013 632
379Retaining Clip0020 981
401Upper Handlebar3634 021
402Switch-Key3634 051
403Screw0012 883
404Bracket Bracket4317 014
405Clamp-Casing4935 105
412Bushing4940 105
413Screw0015 652
416Shackle3585 100
417Clip3585 503
418Cable Guide4936 323
