> Hedge-shears > Electro > HS > HS 43 E > Handle, Switch, Blade

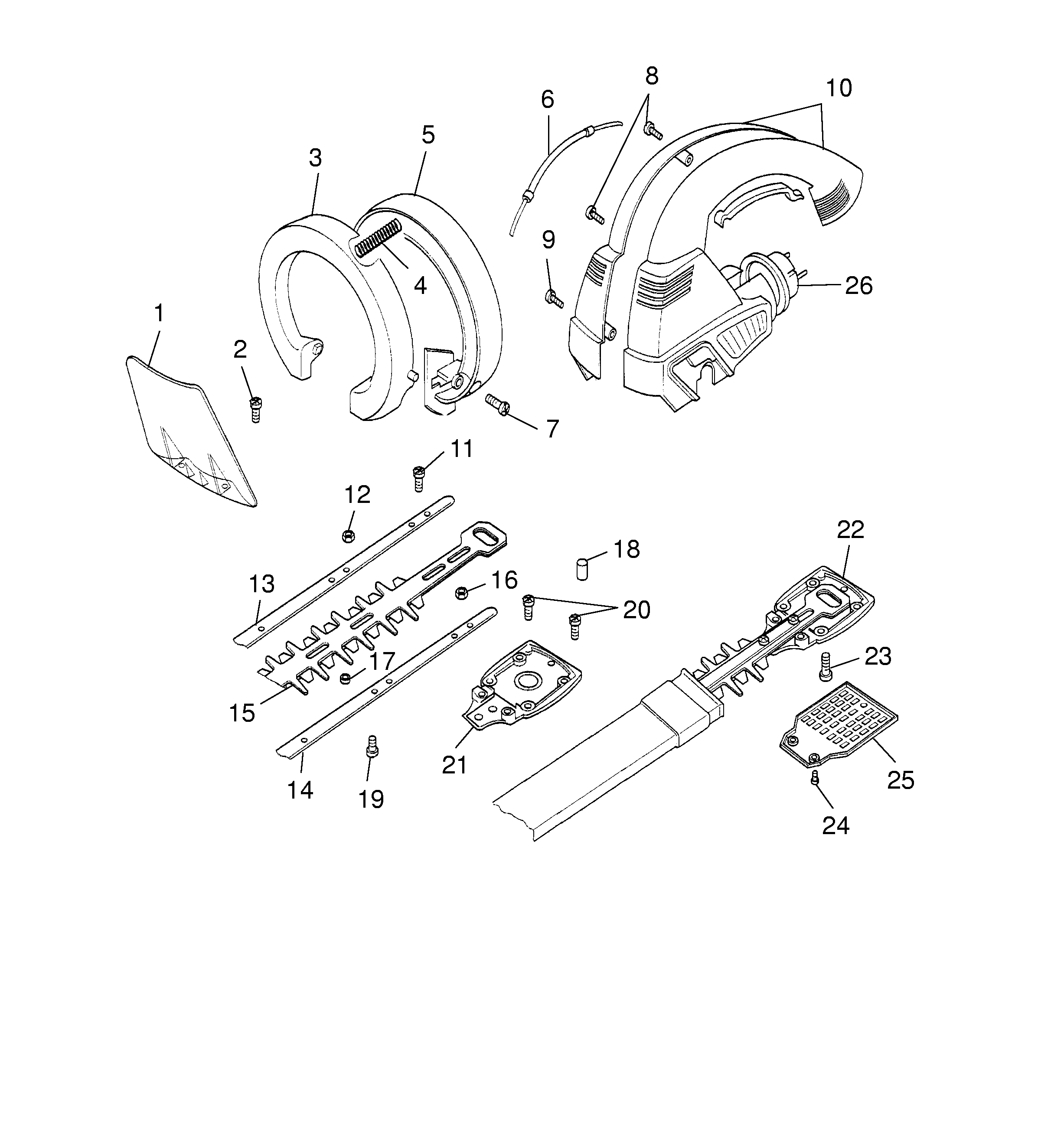

Lista de repuestos para Wolf Hedge-shears Handle, Switch, Blade




Lista de repuestos


pos.descripciónNúmero de pieza
1Hand Safety Guard7090 306
2Screw7491 114
3Switch Handle7490 300
4Compression Spring7490 123
5Holder handle7490 301
6Bowden Wire7490 050
7Screw7491 115
8Screw 4x207491 011
9Screw 4X257491 117
10Case7490 308
11Screw Cm 6X207490 128
12Hex. Nut M40016 209
13Bar Hs 43 E7490 108
13Bar Hs 54 E7491 108
14Bar Hs 43 E7490 105
14Bar Hs 54 E7491 105
15Comb Hs 43 E7490 107
15Comb Hs 54 E7491 107
16Distance Ring7490 102
17Distance Ring7490 103
18Silicone Rubber 5 Mm7490 315
19Hex. Screw M4X127490 127
20Screw Cm 6X187490 129
21Base Plate7490 100
22Shearing Plate Compl. Hs 43 E7490 041
22Shearing Plate Compl. Hs 54 E7491 041
23Screw 5X167491 116
24Screw Cm 4X67491 118
25Insulating Plate7490 313
26Supply Main7490 208
