> Mowers > Accu > Without drive > Concept > Concept 43 AC > Frame

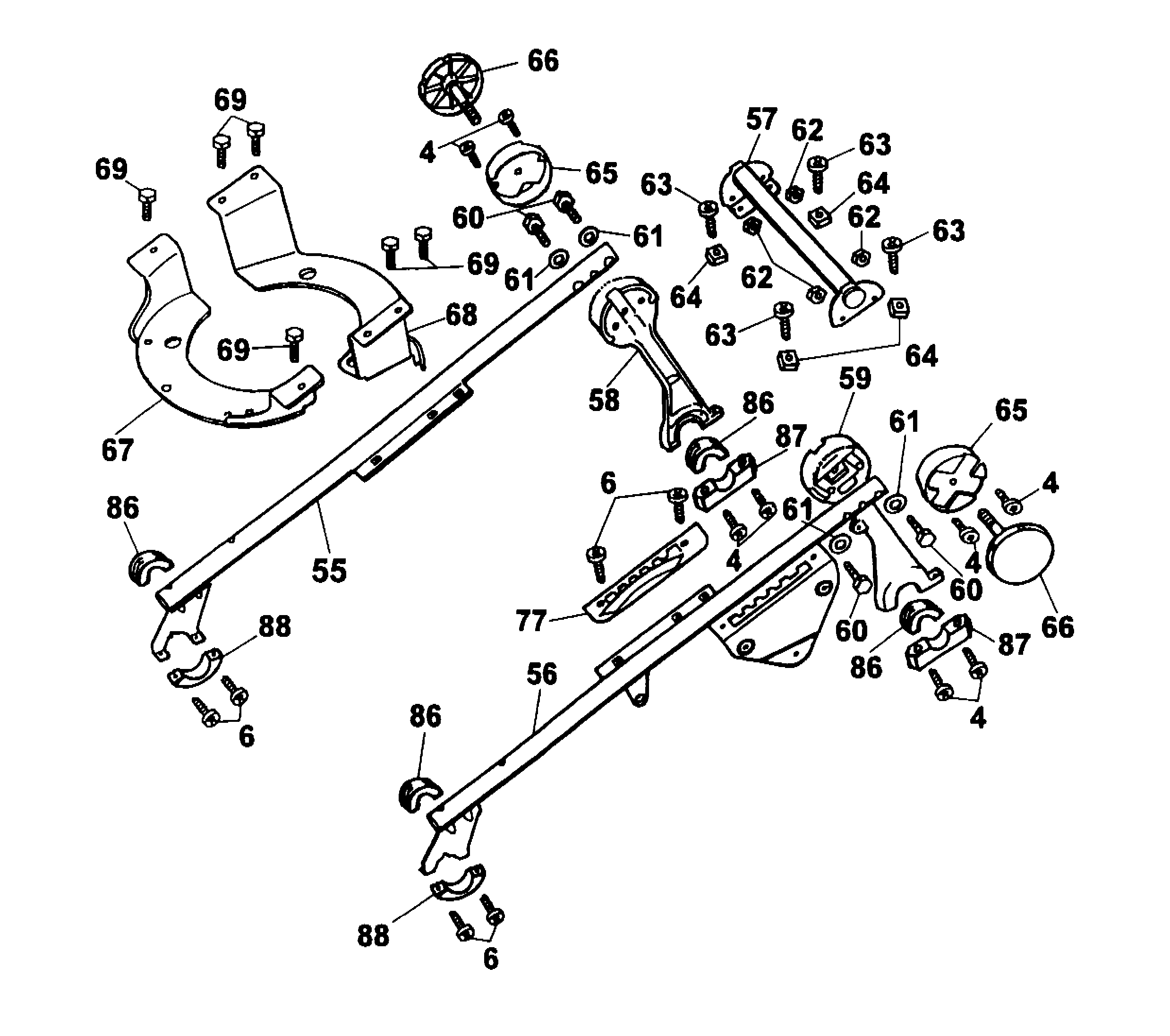

Lista de repuestos para Wolf Mowers Frame




Lista de repuestos


pos.descripciónNúmero de pieza
4Screw M 5X200012 607
6Screw 5X120012 605
55Frame, Right6450 010
56Frame, Left6450 012
57Tie-Bar6450 014
58Handlebar Holder, Right6450 100
59Handlebar Holder, Left6450 102
60Hex Screw M6X45 Din 931 8.80010 313
61Friction Disk6150 182
62Nut0016 311
63Screw M 6X150012 831
64Square Nut0016 405
65Fixing Case6450 188
66Handwheel4317 010
67Motor Support, Front6450 112
68Motor Support, Back6450 114
69Hex. Screw M 6X120010 386
77Crank6450 136
86Bearing Shell6450 309
87Shell, Rear6430 323
88Front Support Shell6450 305
