> Ride-on Mowers > Cart > OHV > Cart OHV 2 > Frame, Height-adjustment

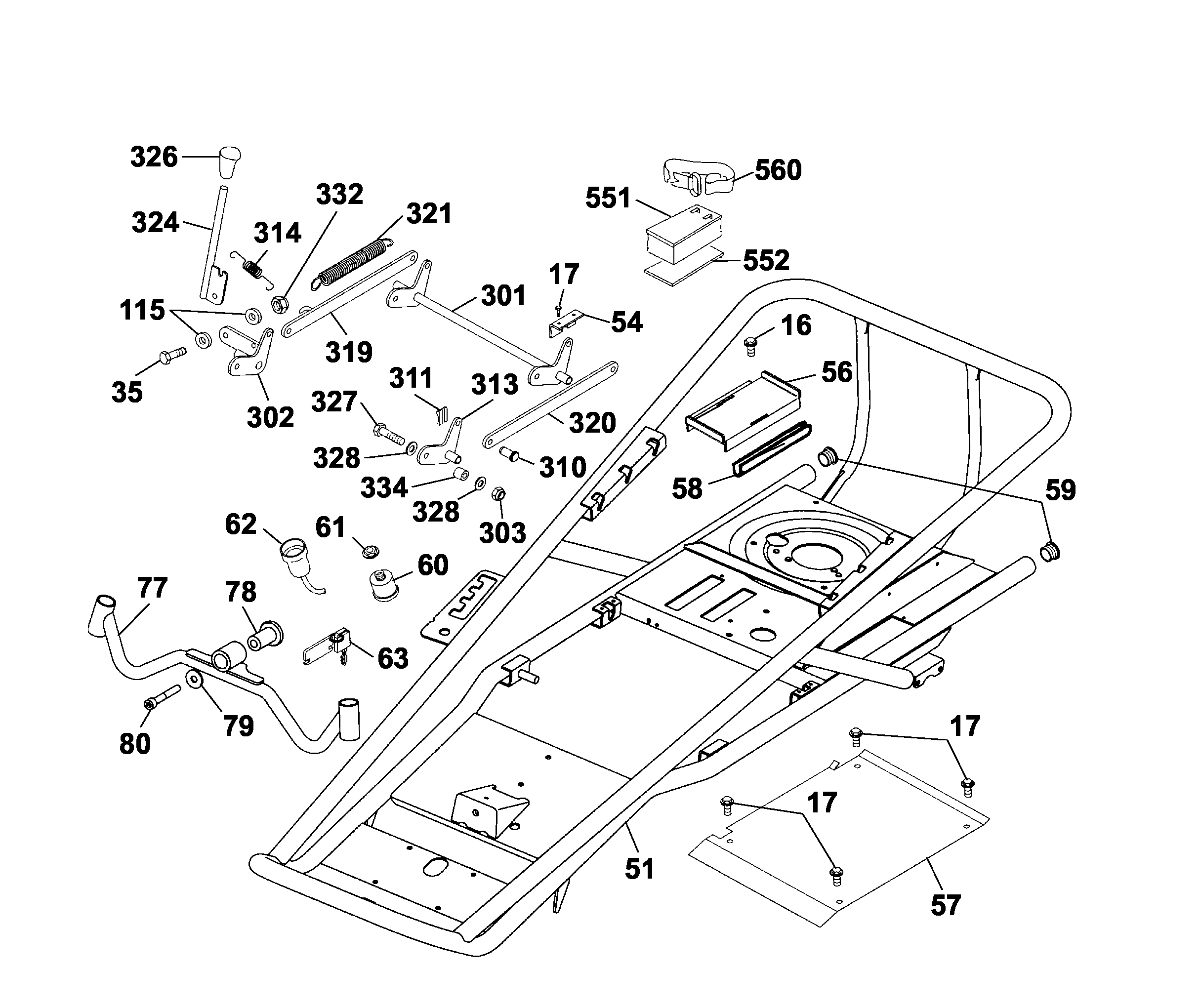

Lista de repuestos para Wolf Ride-on Mowers Frame, Height-adjustment




Lista de repuestos


pos.descripciónNúmero de pieza
16Screw0010 893
17Screw0010 890
35Screw0010 365
51Double-Delta Tube Frame6195 010
54Closing Device6110 130
56Battery Holder6190 110
57V-Belt Cover, Red6110 190
58Header6150 432
59Cover6110 318
60Key Switch Compl.6150 051
61Nut6150 471
62Cable Form6190 057
63Key Hook Compl. With Key6110 043
***Set Of Keys6.42Accu6150 108
***Spare Key6150 109
77Front Axle6195 012
78Bearing Bolt6195 130
79Washer0017 292
80Hex. Screw M10X700010 407
115Washer0017 121
301Height-Adjustment Axle, Red6110 027
302Lever, Red6110 060
303Hex. Nut0016 312
310Bolt6340 214
311Retaining Clip0020 981
313Lever, Red6110 029
314Tension Spring6110 412
319Connecting Rod Right, Red6110 062
320Connecting Rod Left, Red6110 174
321Tension Spring6150 413
324Height-Adjustment Lever, Red6110 436
326Gearshift Knob6150 318
327Screw0010 389
328Washer0017 291
332Nut0016 311
334Bush6195 193
551Battery 12 V, 7,2 Ah6150 075
552Rubber Pad6190 306
560Clamping Strap6150 216
