> Scarifiers / Aerators > Scarifiers > Petrol > UV 38 BX > Chassis

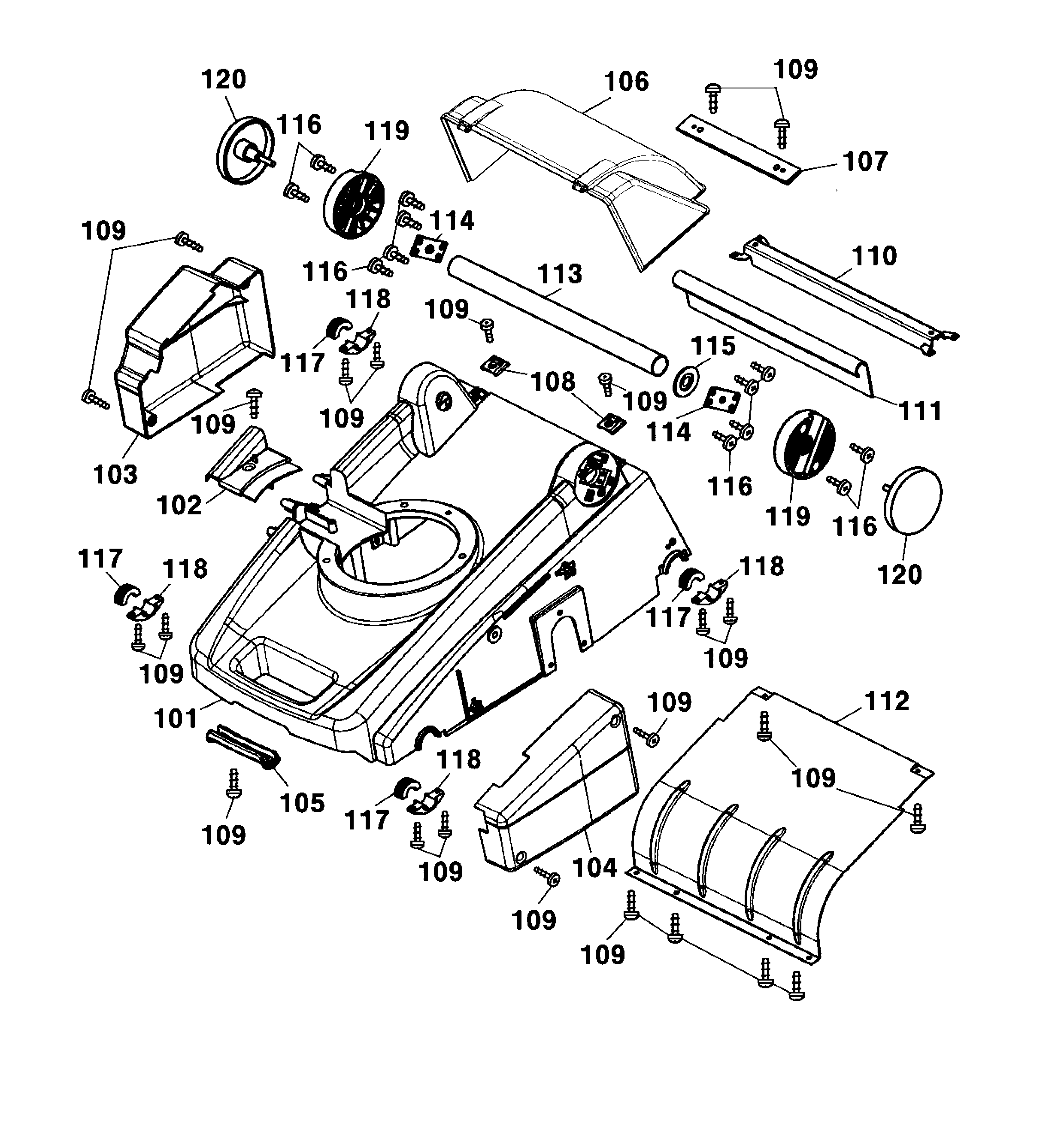

Lista de repuestos para Wolf Scarifiers / Aerators Chassis




Lista de repuestos


pos.descripciónNúmero de pieza
101Chassis3638 420
102Belt Guard, Upper3638 301
103Belt Guard, Right3638 300
104Cover Left3638 302
105Front Handle Spill4601 309
106Rear Flap3638 303
107Counterweight6450 149
108Hinge 2 Qty3638 304
109Screw 5X120012 605
110Tie-Bar3638 134
111Rubber Edge3638 330
112Deck Liner3638 136
113Tubular Grip, Rear3638 122
114Flange3638 138
115D-Ring3638 314
116Screw M6X120012 609
117Bearing Shell6450 309
118Front Support Shell6450 305
119Insulator3638 310
120Handwheel3638 018
