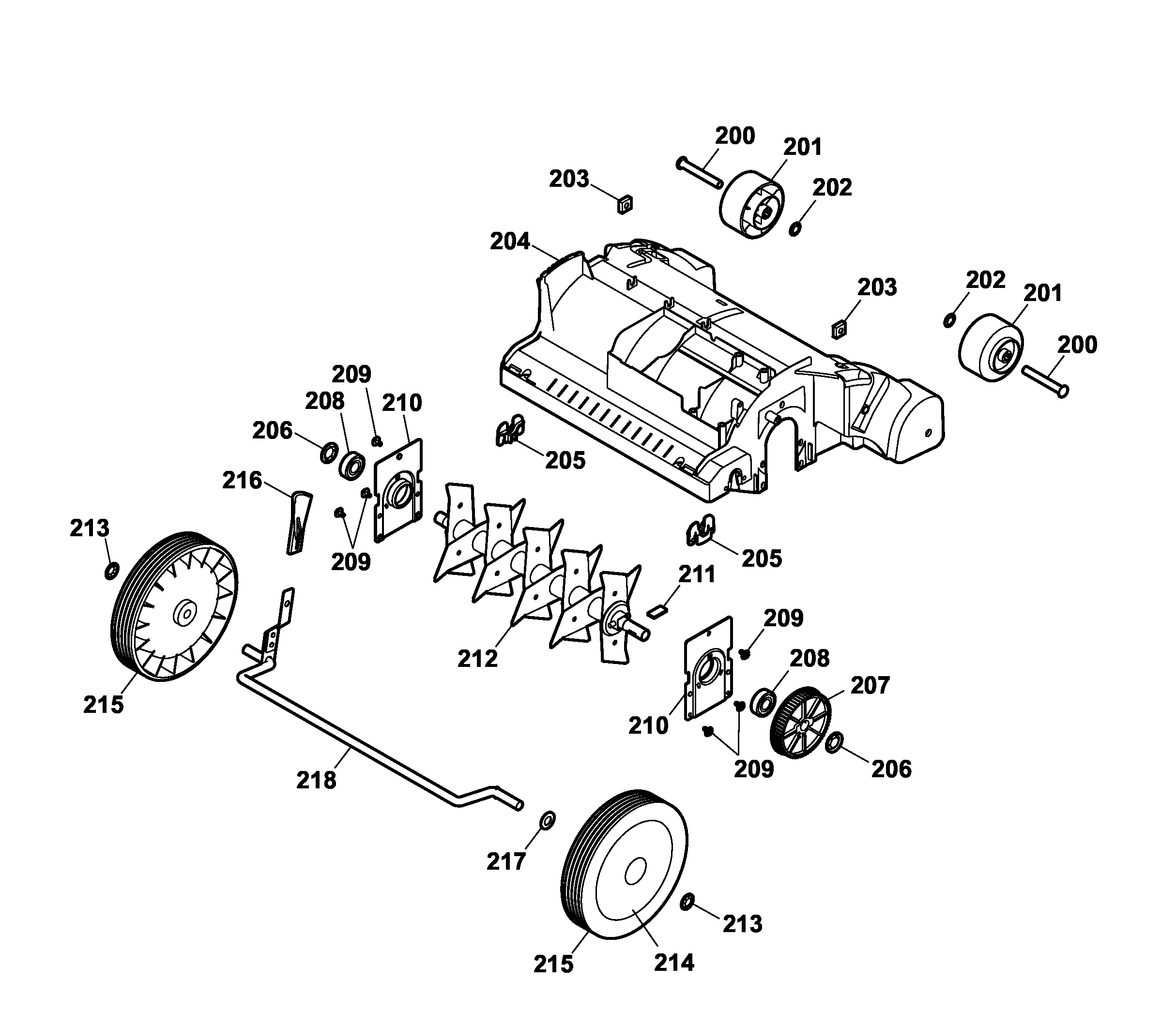

Lista de repuestos para Wolf Scarifiers / Aerators Chassis, Wheels, Roller




Lista de repuestos


pos.descripciónNúmero de pieza
200Bolt3618 111
201supporting roll3618 302
202Speedfix Retainer0020 697
203Nut0016 409
204Chassis3618 300
205attachment (axis)4907 316
206Circlip0020 701
207Crowm Gear3618 316
208Bearing0023 148
209Screw0010 894
210Bearing Shield3616 103
211Starter Dog3620 113
212Roller Compl.3618 050
213Speedfix Retainer0020 700
214Cover ø 170 mm4936 535
215Wheel ø 200 mm3630 058
216handle3618 310
217Washer0017 074
218Axle3618 021
