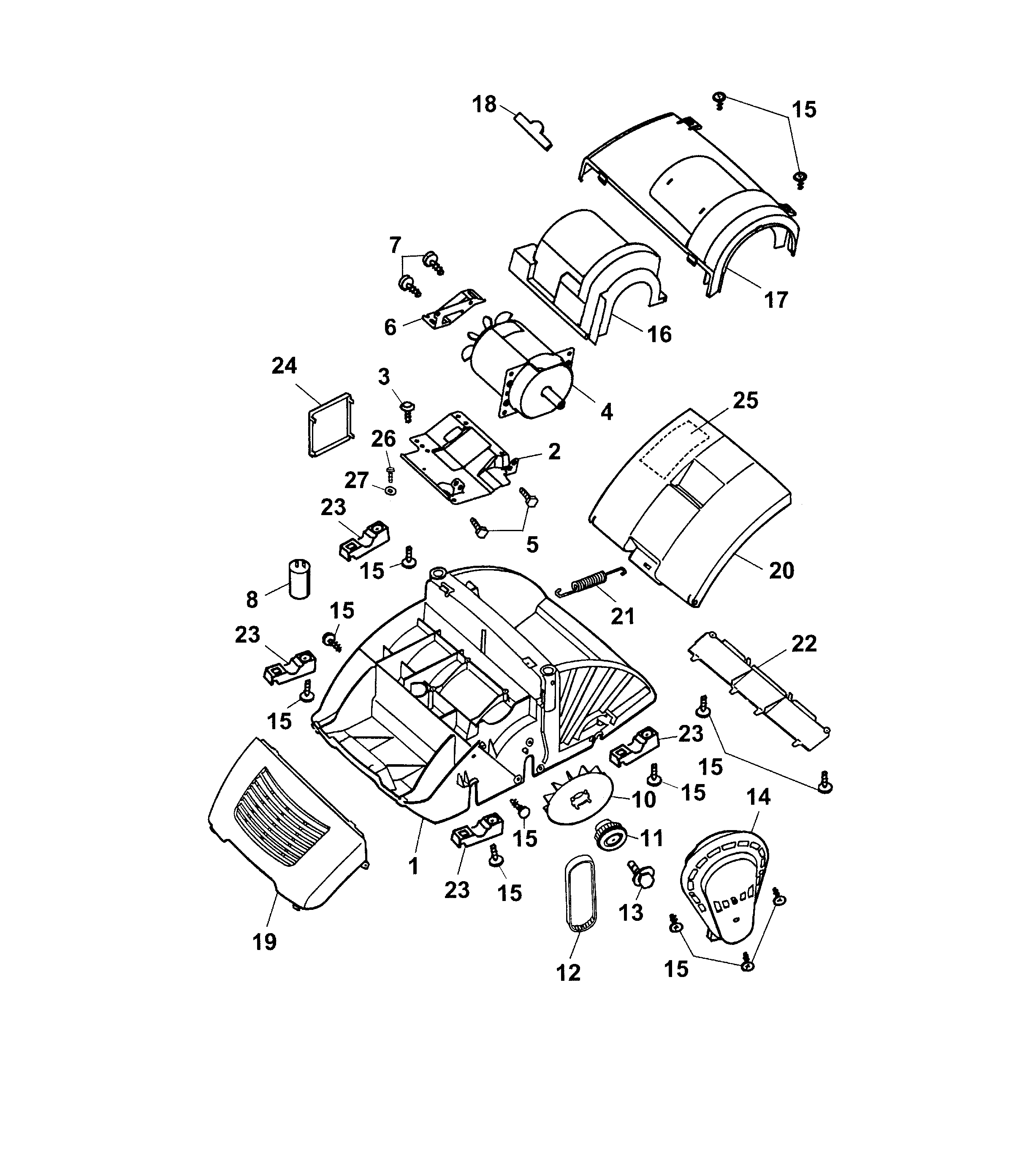

Lista de repuestos para Wolf Scarifiers / Aerators Chassis, Motor

pos.	descripción	Número de pieza
1	Chassis	3632 380
2	Motor Holder	3632 148
3	Screw K 60X22	0012 638
4	Motor	1141 081
5	Screw M8X16	0012 617
6	Motor Support	3632 150
7	Screw	0010 893
8	Condenser	1133 030
10	Aerator	3632 305
11	Crowm Gear	3632 035
12	Toothed Belt	0039 007
13	Screw	0010 403
14	Cover For Toothed Belt	3632 304
15	Screw K50X20	0012 633
16	Air Conduction	3632 326
17	Motor Cover	3630 301
18	Wolf-Garten - Label	0051 115
19	Cap	3632 302
20	Rear Flap	3632 363
22	Cover	3632 315
23	Front Support Shell	4961 312
24	Cover	3632 307
25	Safety Label	0051 223
26	Screw	0015 820
27	Washer	0017 286
28	Screw	0012 625
***	Instruction Manual	0054 348
