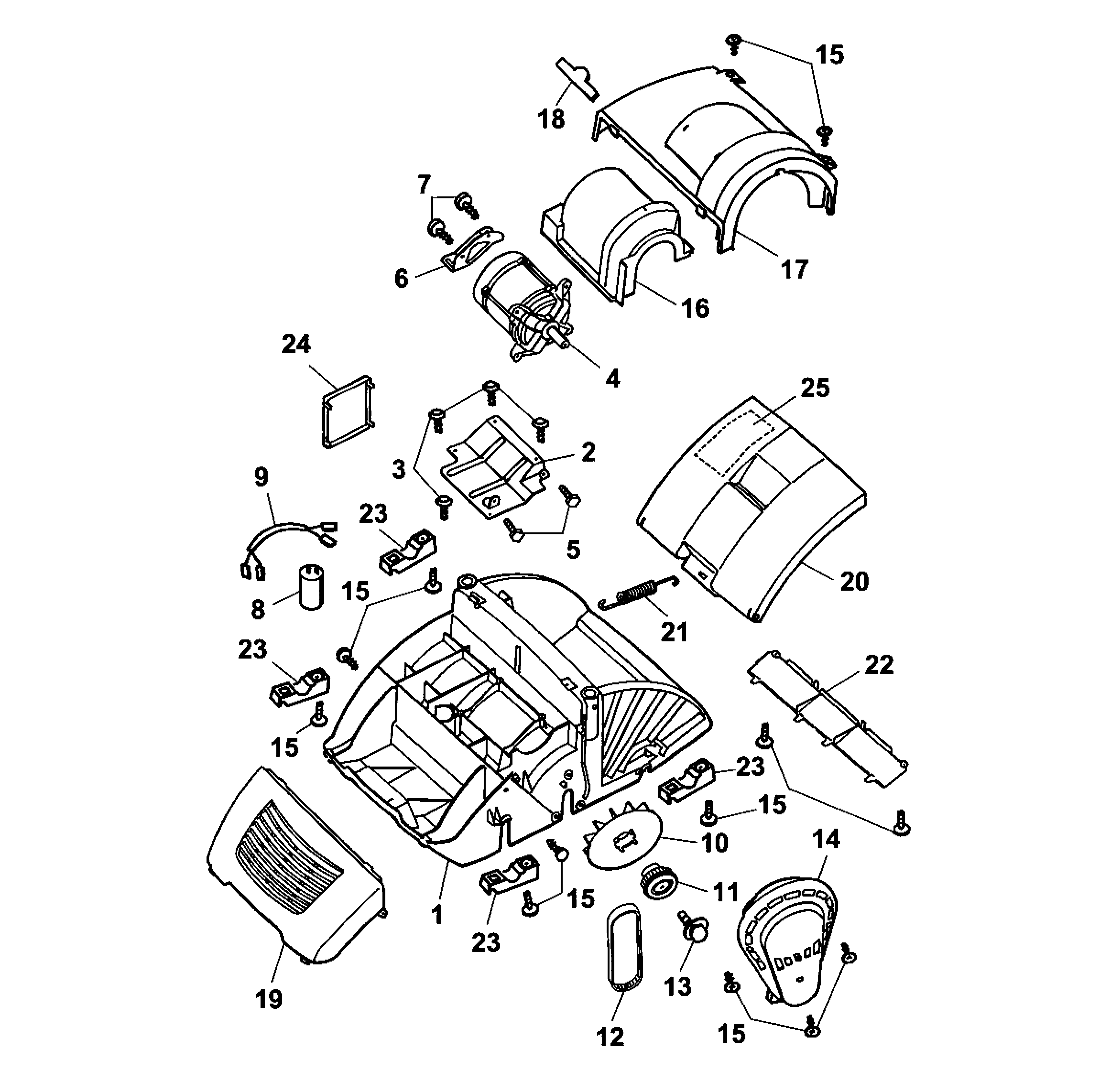

Lista de repuestos para Wolf Scarifiers / Aerators Chassis, Motor




Lista de repuestos


pos.descripciónNúmero de pieza
1Chassis3632 300
2Motor Holder3632 138
3Screw K 60X220012 638
4Motor1141 070
5Screw0010 385
6Motor Support3632 140
7Screw M6X120012 609
8Condenser 12Uf1117 040
9Wire Connector3567 214
10Aerator3632 305
11Crowm Gear3632 030
12Toothed Belt0039 007
13Screw0010 403
14Cover For Toothed Belt3632 304
15Screw K50X200012 633
16Air Conduction3632 306
17Motor Cover3630 301
18Wolf-Garten - Label0051 115
19Cap3632 302
20Rear Flap3632 303
21Spring3632 100
22Cover3632 315
23Front Support Shell4961 312
24Cover3632 307
25Safety Label0051 223
***operator instructions0054 055
***Assembly Instructions3632 201
***Bag With Accessories3630 028
