> Petrol engines > Kawasaki > FJ > FJ 180 V > Air cleaner, Muffler, Brake,

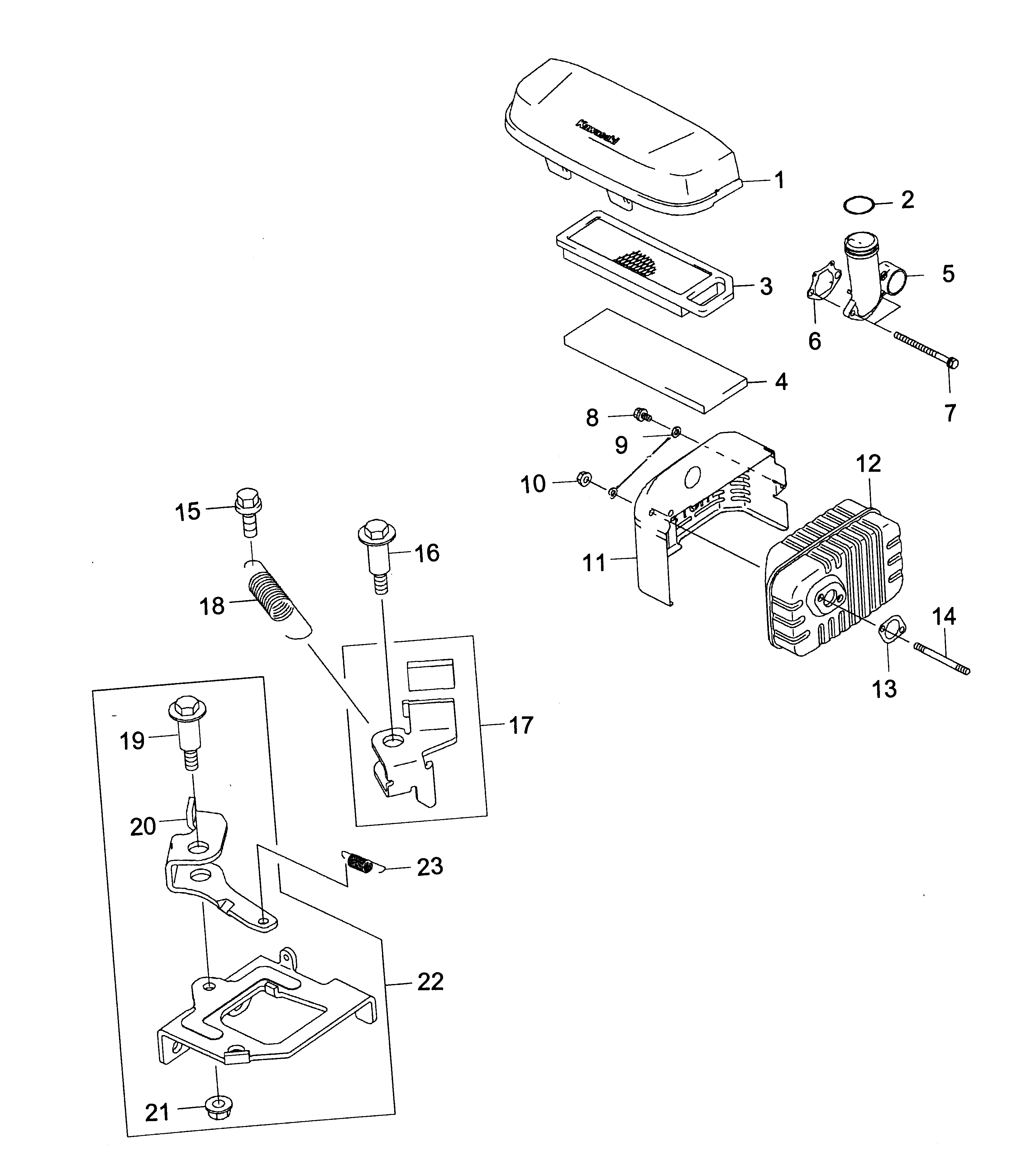

Lista de repuestos para Wolf Petrol engines Air cleaner, Muffler, Brake,




Lista de repuestos


pos.descripciónNúmero de pieza
1Cover2094 312
2Seal-Dipstick Tube2094 311
3Filter2094 314
4Filter.Pre Cleaner2094 313
5Stub2094 317
6Seal2094 315
7Screw2090 416
8Washer2094 188
9Washer2094 189
10Nut2095 602
11Muffler Guard2094 318
12Muffler2094 187
13Seal2094 316
14Screw2090 423
15Screw2090 116
16Screw2094 201
17Lever2094 195
18Spring2094 198
19Screw2094 201
20Arm2094 196
21Nut2095 602
22Brake Element2094 197
23Spring2094 199
