> Roth / TORO > Hand operated > Lawnmower > 2-stroke SP > 237/22045 B > 6900001 > Traction Control Assy.

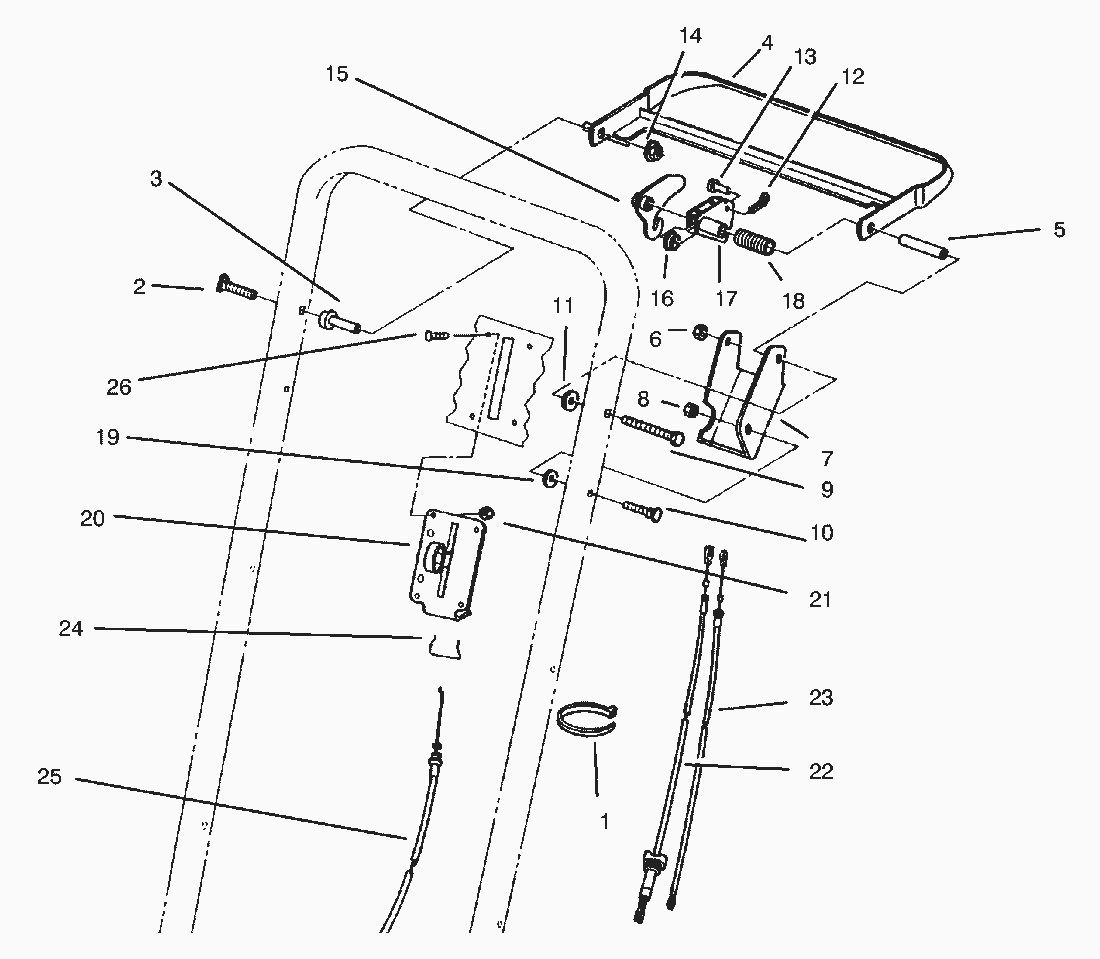

Lista de repuestos para Toro Roth / TORO Traction Control Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Tie Wrap3290-378
2Screw-Handle17-9427
3Support-Spacer49-1631
4Bar-Control84-8940
5Spacer-Control Bracket84-9030
6MUTTER3296-29
7Bracket-Control92-1778
8MUTTER3296-42
9Screw-Cap Hex. Hd.322-19
10SCHRAUBE46-6430
11Spacer71-9310
12Pin-Cotter3272-1
13Pin-Cable84-9040
14Nut-Flange Lock3296-58
15Lever-Traction84-9000
16Bushing-Nylon Flange86-9320
17Lever-BBC84-8990
18Spring-Control85-6750
19Spacer71-9320
20Control-Throttle85-6770
21Nut3296-2
22Cable-Traction84-9120
23Cable-Clutch84-9110
24Retainer-Throttle Control85-6780
25Cable-Throttle85-6760
26Screw-Pan Hd.3250-14
