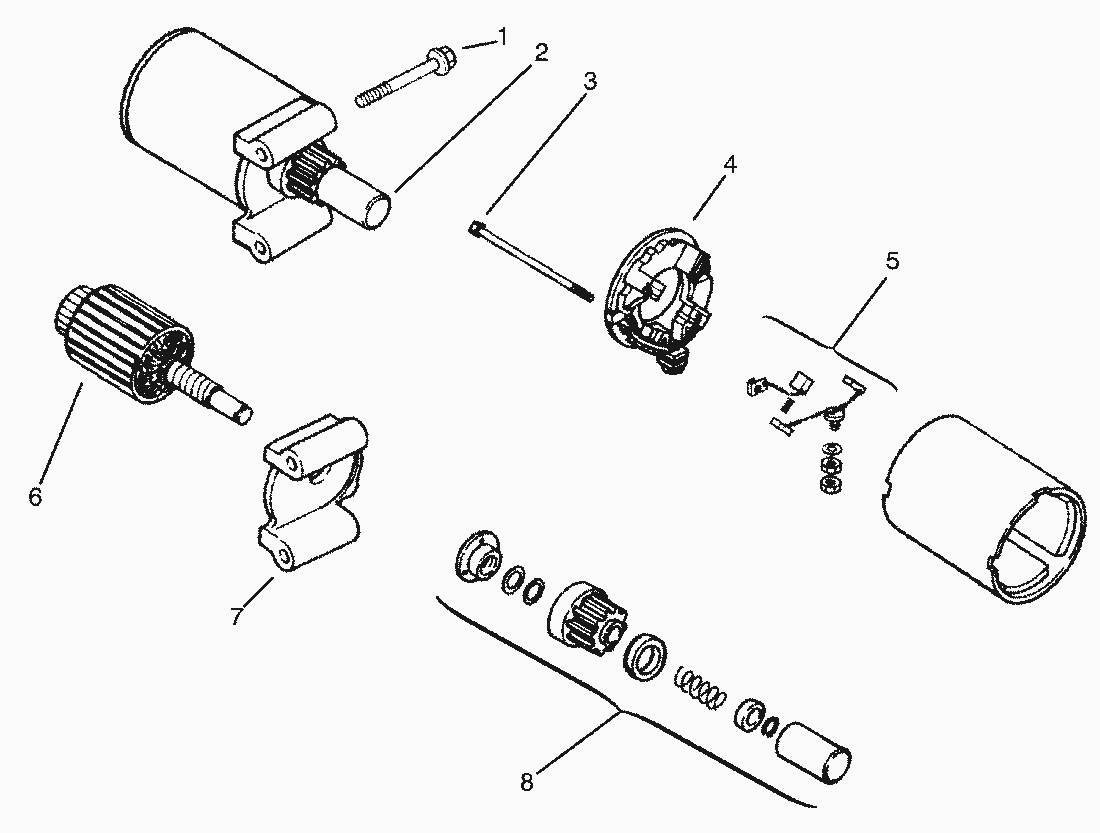

Lista de repuestos para Toro Roth / TORO Start System
pos.
descripción
Número de pieza
1
Screw M8x1.25x70 (Only On: 72042, 72063, 72062, 72043)
M0839070
2
Starter ASM Incl 3-8
1209813
3
Bolt
1221101
4
Cap-Commutator Incl 5
1222713
5
Kit-Brush And Spring
1222101
6
Armature-Starter
1217005
8
Kit-Drive
1275553
Lubricant-Starter
5235701
