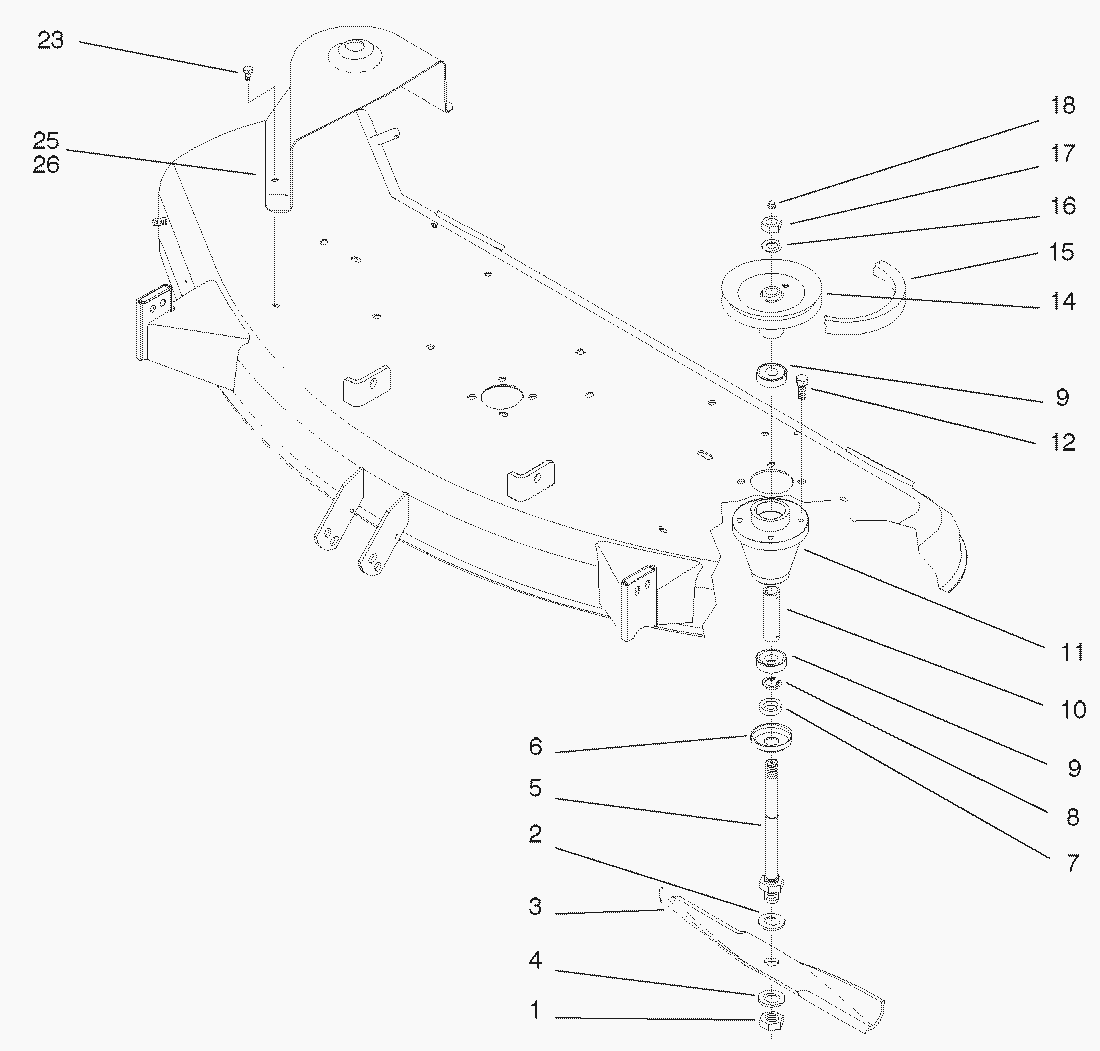

Lista de repuestos para Toro Roth / TORO Spindle and Blade Assy.

pos.	descripción	Número de pieza
1	Nut-Hex Jam	3220-7
2	Washer	3256-28
3	Blade Kit-16 (Set of 3)	106637
4	Washer	9202574
5	Shaft-Spindle	78-6710
6	Cup-Spindle	106067
7	Spacer-Blade	106068
8	Ring-Retaining Internal	32120-42
9	Bearing-Ball	109966
10	Tube	116085
11	Housing-Spindle	114568
12	Screw-Hex Hd. Cap	9080326
14	Pulley-Spindle	92-7083
15	V-Belt	92-6958
16	Lockwasher	3253-8
17	Nut	3220-6
18	Grease Fitting	302-5
23	Screw-Hex Thrd. Form.	46-8560
25	Cover-Belt R.H.	86-9220
26	Cover-Belt L.H.	86-9210
