> Roth / TORO > Ride-On Mowers > Mower decks > 107cm Seit > 318/78231 > 5900001 > Spindle Assy.

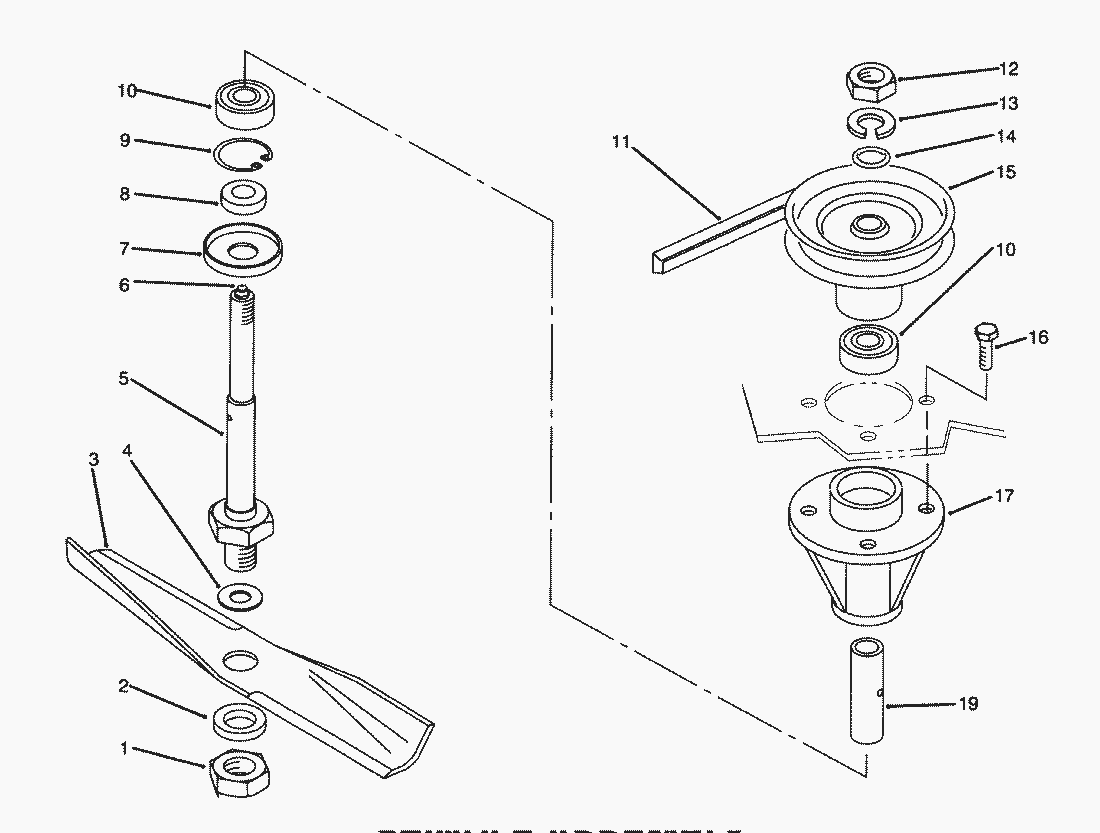

Lista de repuestos para Toro Roth / TORO Spindle Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Nut-Hex Jam3220-7
2Washer3256-28
3Kit-Blade (Set of 3)106636
4Washer-Special920257
5Shaft-Spindle78-6710
6Grease Fitting302-5
7Cup-Spindle106067
8Spacer-Blade106068
9Ring-Retaining Internal32120-42
10Bearing-Ball109966
11V-Belt78-6240
12Nut3220-6
13Lockwasher3253-8
14O-Ring971015
15Pulley-Spindle92-7080
16Screw-Hex Hd. Cap9080326
17Housing-Spindle114568
19Tube116085
