> Roth / TORO > Ride-On Mowers > Traktor > 13-38 HXL > 392/71213 > 4900001 > Seat Assy.

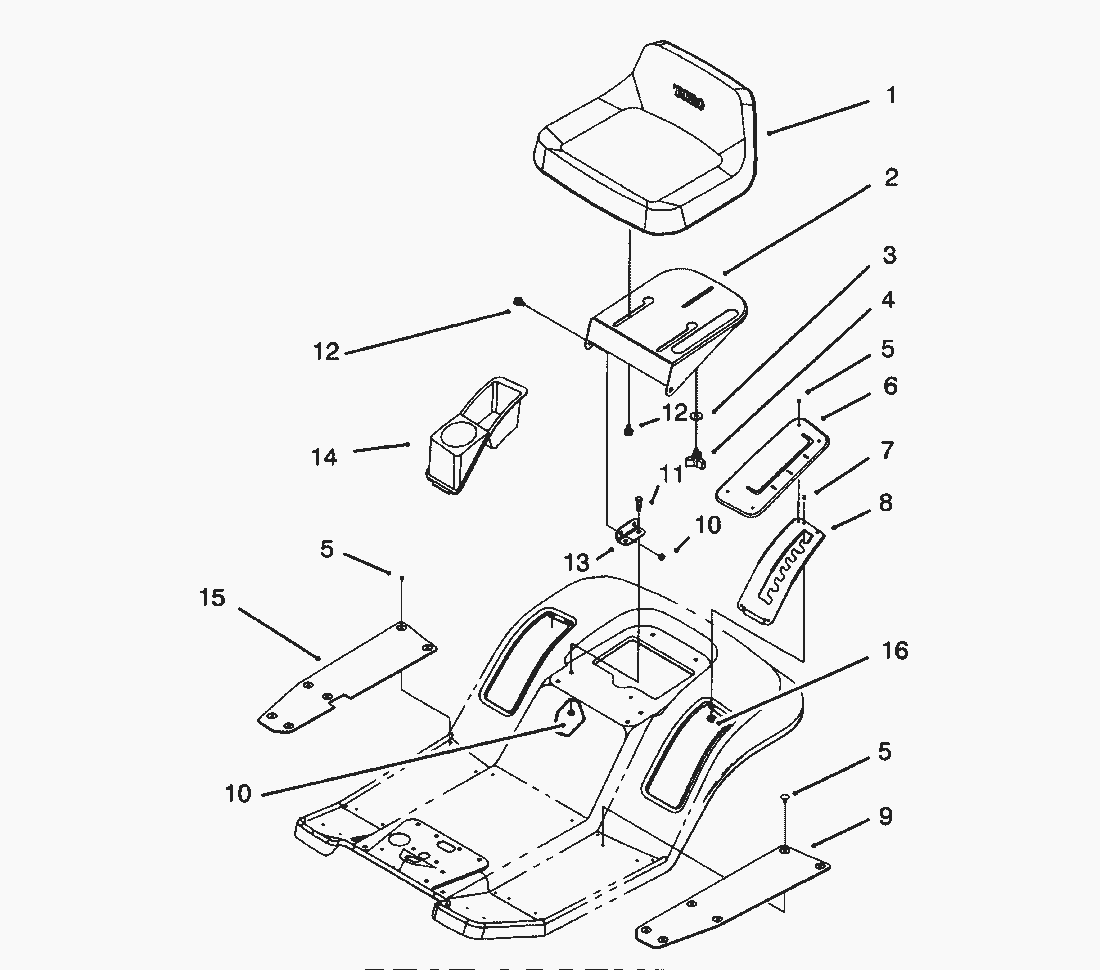

Lista de repuestos para Toro Roth / TORO Seat Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Seat (Model No. 71200 Only)88-3950
2Support-Seat88-4910
3Washer5-4460
4Knob-Studded700806
5Fastener-Panel3290-479
6Cover-H.O.C.88-5170
7Rivet3269-5
8Gate-H.O.C.88-5030
9Mat-L.H. Foot88-5240
10MUTTER3296-29
11Capscrew322-3
12Shoulder Bolt37-8770
13Bracket-Seat Hinge88-4820
14Tray-Fender88-4990
15Mat-R.H. Foot88-5230
16Washer3269-6
