volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
14-38 HXL
>
392/71219
>
7900001
>

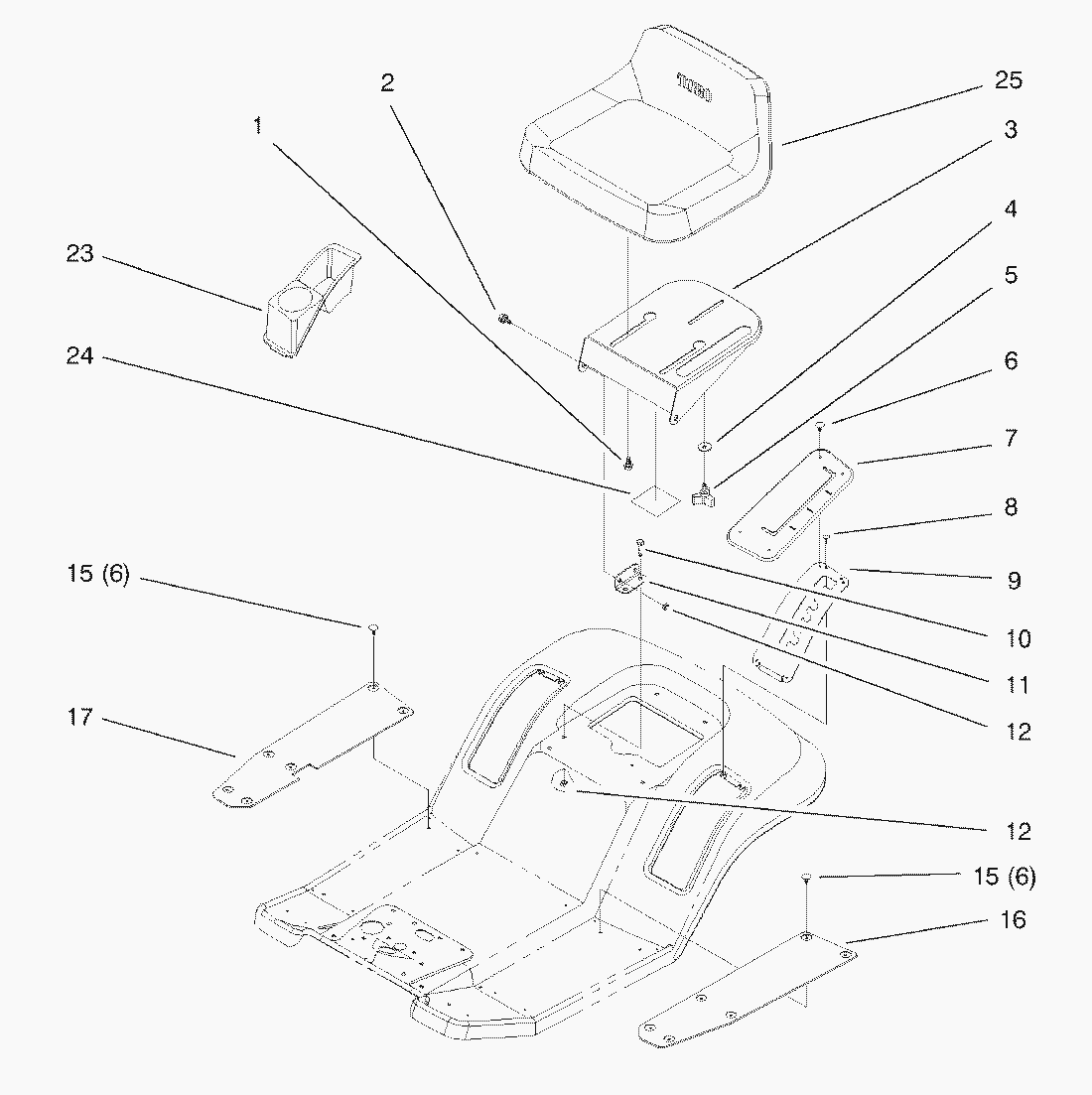

Seat Assy.
Lista de repuestos para Toro Roth / TORO Seat Assy.
pos.
descripción
Número de pieza
1
Shoulder Bolt
37-8770
2
Shoulder Bolt
37-8770
3
Support-Seat
88-4910-03
4
Washer
5-4460
5
Knob-Studded
92-9674
6
Fastener-Panel
3290-479
7
Cover-H.O.C.(Model No. 71200 Only)
93-7657
8
Rivet-Pop
3290-282
9
Gate-HOC
88-5030-03
10
Capscrew
322-3
11
Bracket-Seat Hinge
88-4820-03
12
MUTTER
3296-29
15
Fastener-Panel
3290-479
16
Mat-L.H. Foot
88-5240
17
Mat-R.H. Foot
88-5230
23
Tray-Fender
88-4990
24
Decal-Europe Noise
114621
25
Seat (Model No. 71200 Only)
88-3950
