> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 495/26637 > 8900001 > Rear Axle Assy.

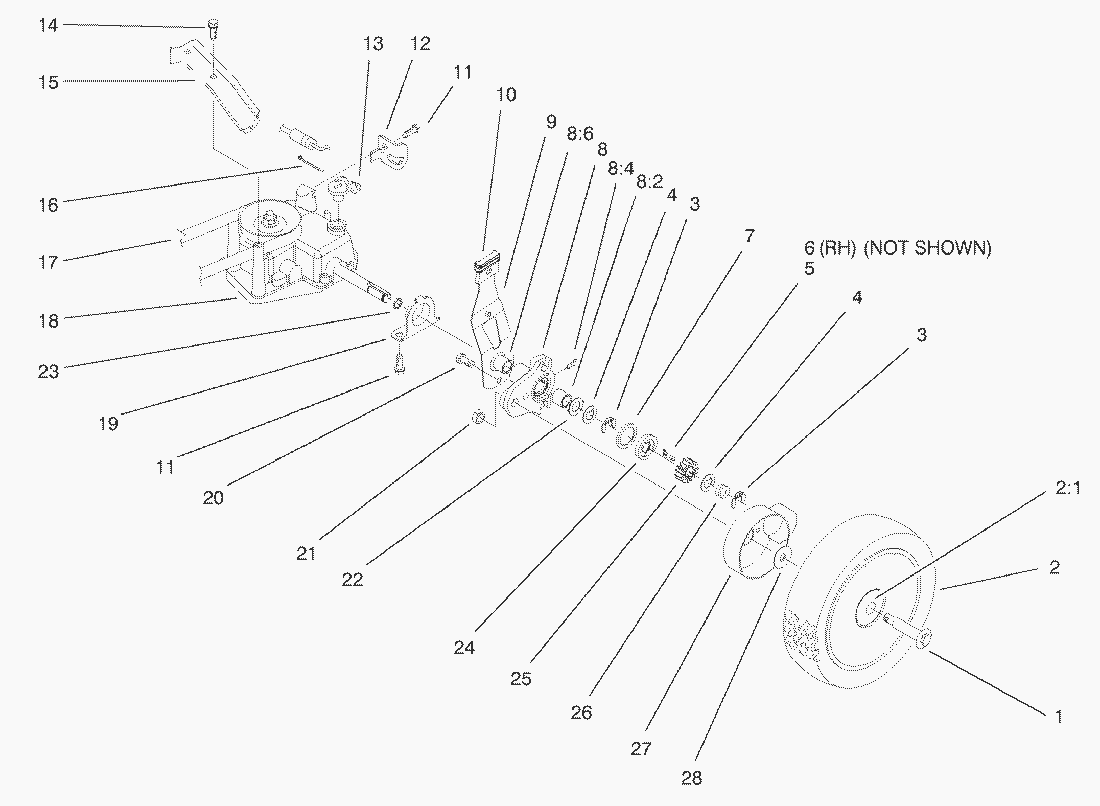

Lista de repuestos para Toro Roth / TORO Rear Axle Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Bolt-Wheel27-6231
2Wheel Tire & Gear Assy. (Incl. Ref.14-9959
21Bushing-Wheel27-6250
3Ring-Retaining65-2720
4Washer-Keyed Thrust65-4740
5Key-Rocking L H.66-6050
6Key-Rocking R.H.66-6040
7Washer-Friction65-4710
8Pivot Arm Assembly (Incl. Ref.65-5042
82Bearing-Needle48-2060
84Grease Fitting302-56
86Bushing70-9760
9Spring Arm Assembly65-5440
10Knob-Arm25-7740
11Self Tapping Screw32144-70
12Retainer-Cable76-2930
13Lever-Shift76-0920
14Screw-Self Tapping49-2040
15Bracket-Belt Guide65-5190
16Cotter Pin3272-5
17V-Belt36-8070
18Gear Case Assy. Complete62-6673
19Cap-End66-0360
20Screw-Cap Socket Hd.65-5220
21Locknut3296-6
22Washer-Thrust (Inner)65-4730
23Seal-O-Ring237-153
24Washer-Clutch65-4760
25Gear-Pinion65-4750
26Spring-Compression65-4720
27Cover-Wheel74-1660
28Spacer-Wheel Cover74-1671
