> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 458/20822 > 7900001 > Rear Axle Assy.

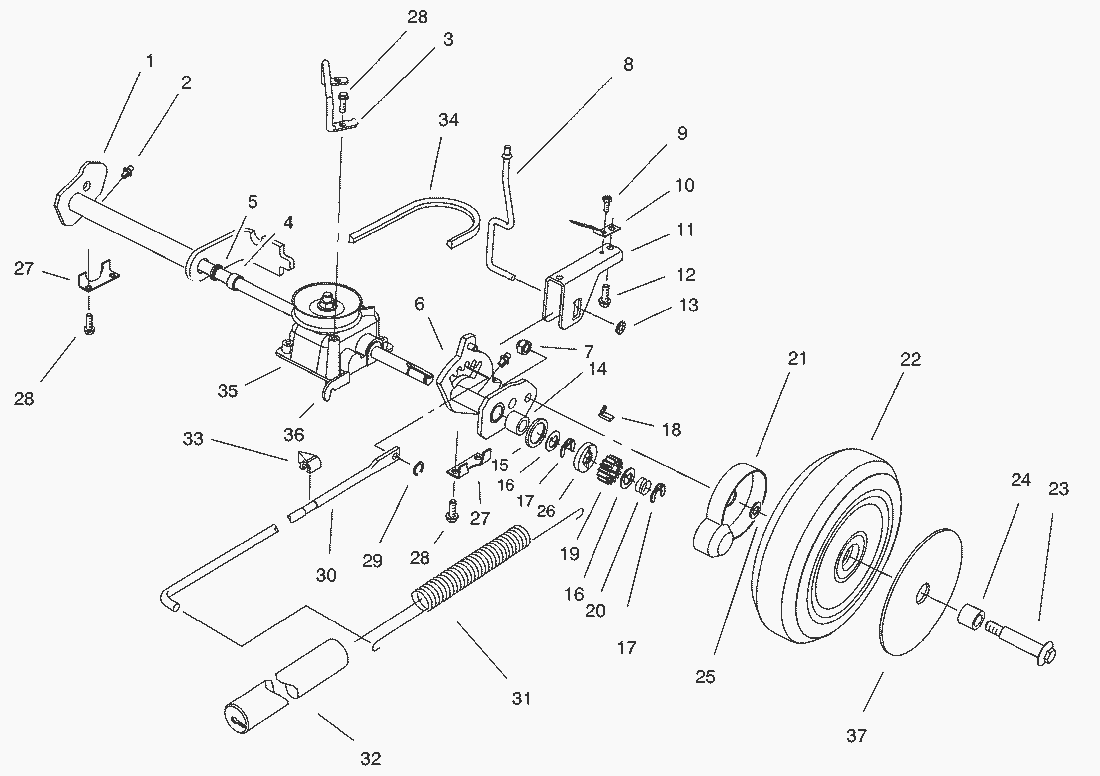

Lista de repuestos para Toro Roth / TORO Rear Axle Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Arm-Pivot R.H. (Incl. Ref.92-9680
2Fitting-Grease302-26
3Retainer-Belt95-2740
4Bushing47-2890
5Seal-Grease47-6730
6Arm-Pivot L.H. (Incl. Ref.92-9677
7Nut-Lock3296-5
8Rod-Trigger71-7840
9Screw-Thread Forming32144-31
10Spring-Trigger Return71-8060
11Saddle-H.O.C.71-8080
12Screw-Thread Forming63-8590
13SICHERUNGSKAPPE32112-13
14Bearing-Needle48-2060
15Washer-Friction65-4710
16Washer-Keyed Thrust65-4740
17Ring-Retaining65-2720
18Key-Rocking L H.66-6050
Key-Rocking R.H.66-6040
19Gear-Pinion65-4750
20Spring-Compression65-4720
21Cover-Wheel74-1660
22Wheel Tire & Gear Assy. (Incl. Ref.14-9959
23RADBOLZEN27-6230
24Bushing-Wheel27-6250
25Spacer-Wheel74-1670
26Washer-Clutch65-4760
27Plate-Rear Suspension71-7770
28Screw Thread Forming32144-4
29Ring-Grip32151-93
30Rod-Link71-7970
31AUSGLEICHSFEDER71-7740
32FEDERABDECKUNG71-8450
33ZEIGER71-7980
34V-Belt71-9450
35Gear Case Assembly71-9600
36Bracket-Traction71-9630
37Cover-Wheel92-7663
