> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 492/20787 > 8900001 > Rear Axle Assy.

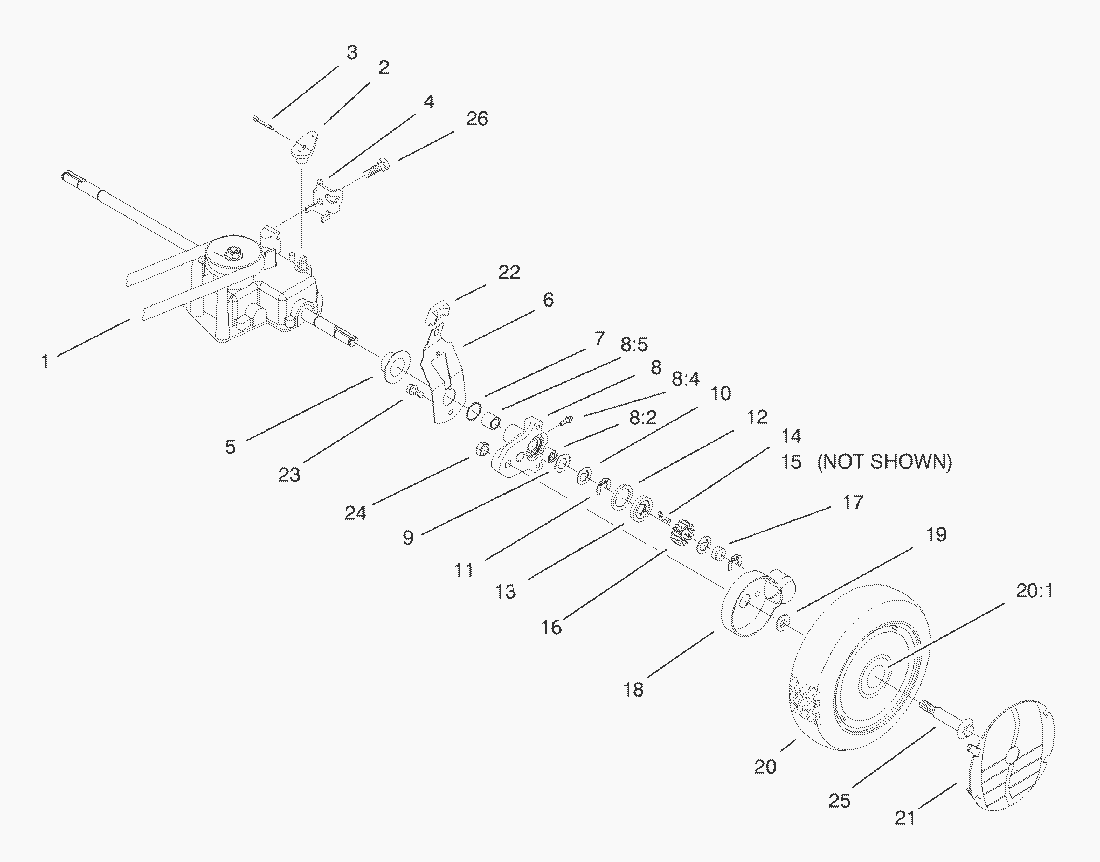

Lista de repuestos para Toro Roth / TORO Rear Axle Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1V-Belt62-3900
2Lever-Shift60-8821
3Pin-Cotter3272-10
4Cable-Retainer82-8780
5End Cap42-3520
6Spring Arm Assembly63-8721
7Seal-O-Ring237-153
8Pivot Arm Assembly (Incl. Ref63-8701
82Bearing-Needle48-2060
84Grease Fitting302-56
85Bushing70-9760
9Washer-Thrust (Inner)65-4730
10Washer-Keyed Thrust65-4740
11Ring-Retaining65-2720
12Washer-Friction65-4710
13Washer-Clutch65-4760
14Key-Rocking L H.66-6050
15Key-Rocking R.H.66-6040
16Gear-Pinion65-4750
17Spring-Compression65-4720
18Cover-Wheel74-1660
19Spacer-Wheel Cover74-1671
20Wheel Tire & Gear Assy. (Incl. Ref.14-9959
201Bushing-Wheel27-6250
21Cover-Wheel92-7663
22Knob-Arm25-7740
23Screw-Hex Hd . Cap32144-85
24Locknut3296-6
25Screw-Pivot27-6232
26Self Tapping Screw32144-70
