volver a
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
4-stroke SP
>
421/20652
>
200000001
>

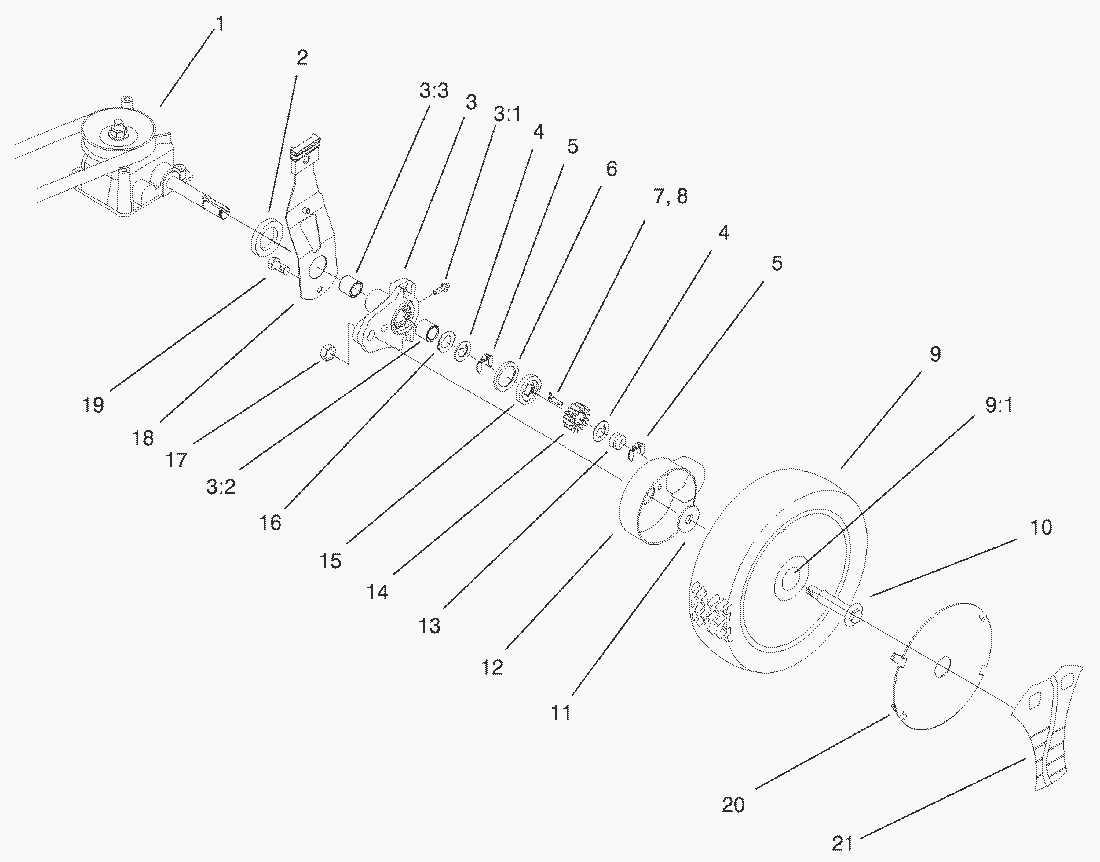

Rear Axle Assy.
Lista de repuestos para Toro Roth / TORO Rear Axle Assy.
pos.
descripción
Número de pieza
1
V-Belt
99-1597
2
Spacer-Axle Shaft
614447
3
Arm ASM-Rear Height Adjustment
92-7746
31
Grease Fitting
302-56
32
Bushing
47-2900
33
Bushing
70-9760
4
Washer-Keyed Thrust
65-4740
5
Ring-Retaining
65-2720
6
Washer-Friction
65-4710
7
Key-Rocking R.H.
66-6040
8
Key-Rocking L H.
66-6050
9
Wheel ASM
99-6471
91
Bushing-Wheel
27-6250
10
Bolt-Shoulder
92-1057
11
Washer-Stepped
614426
12
Cover-Wheel
94-1609
13
Spring-Compression
65-4720
14
Gear-Pinion
65-4750
15
Washer-Clutch
65-4760
16
Washer-Thrust (Inner)
65-4730
17
Nut-Lock (Nylon)
603773
18
Rear Spring Arm ASM
92-1004
19
Screw-Hex Hd . Cap
32144-85
20
Cover-Smart Wheel
100-4366
21
Smart Wheel Label
100-1519
