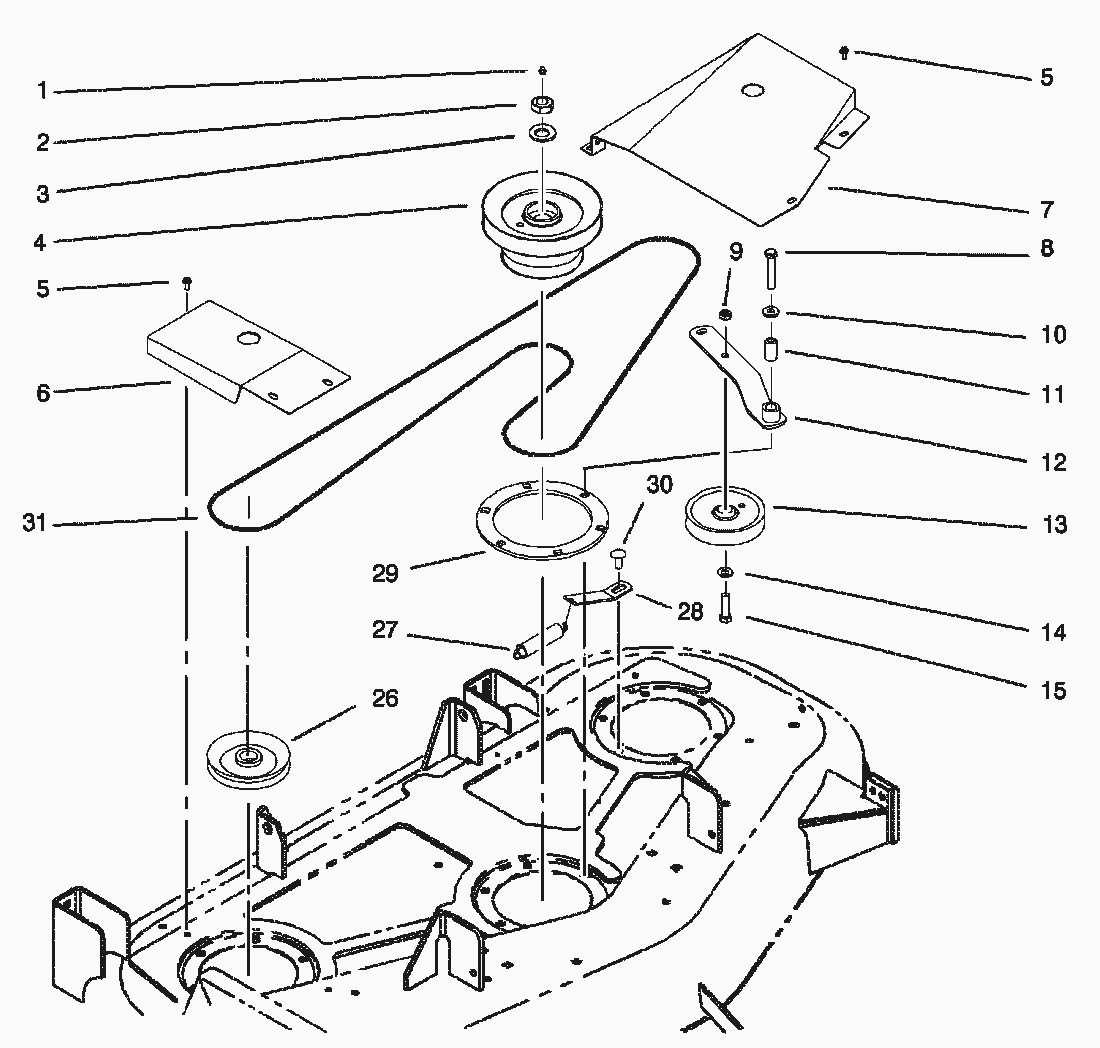

Lista de repuestos para Toro Roth / TORO Pulley and Belt Assy.

pos.	descripción	Número de pieza
1	Grease Fitting	302-2
2	Nut-Hex Jam	3220-7
3	Washer	3256-28
4	Pulley-Double	94-2035
5	Screw-Hex Thrd. Form.	46-8560
6	Cover RH	98-1618-01
7	Cover LH	98-1619-01
8	Hex Hd. Capscrew	323-11
9	Locknut	32128-21
10	Flat Washer	3256-3
11	Sleeve-Idler Pivot	51-3640
12	Arm	55-7640-03
13	Pulley-Flat	93-1622
14	Flat Washer	3256-24
15	Capscrew	323-8
26	Pulley	79-0620
27	Spring-Extension	51-3650
28	Plate-Spring	55-7650
29	Ring-Deck Support	27-7680-03
30	Carriage Bolt	3231-22
31	Belt-V	94-2501
