> Roth / TORO > Ride-On Mowers > Traktor > 523 Dxi > 522/73590 > 200000001 > Parking Brake Lower Assy.

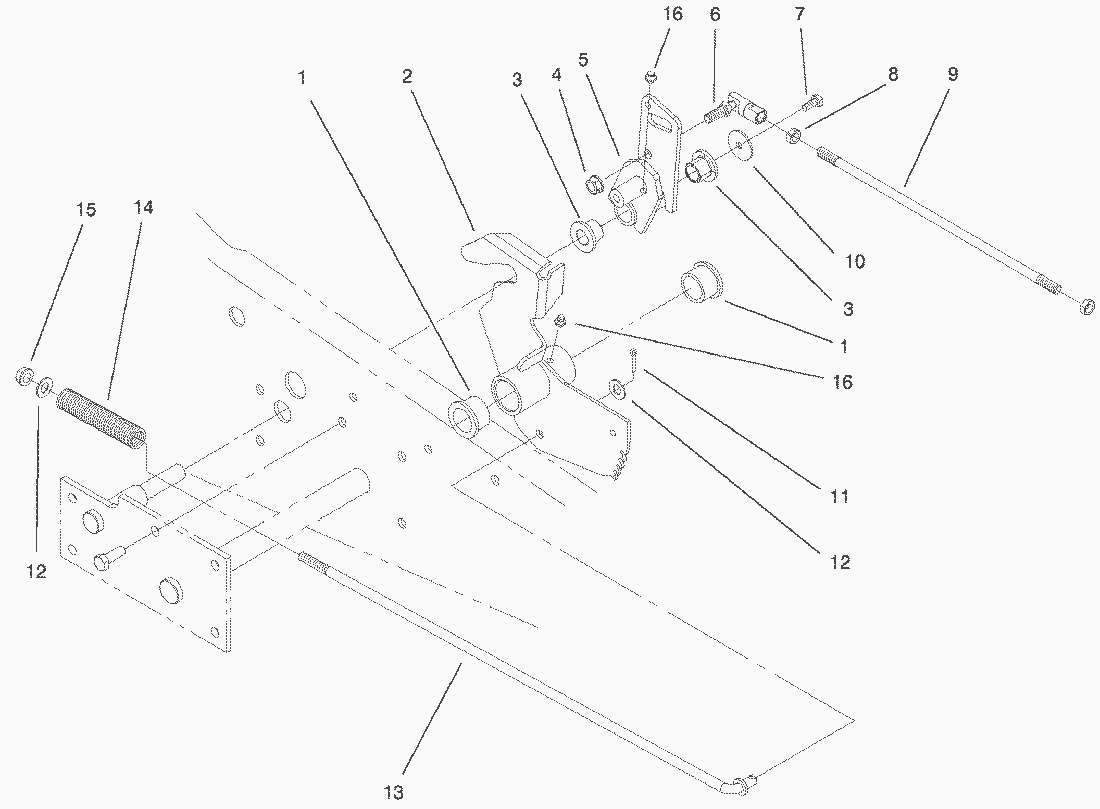

Lista de repuestos para Toro Roth / TORO Parking Brake Lower Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Bushing-Flanged94-7574
2Brake Pivot Plate94-2375-03
3Bushing94-7569
4Locknut3296-6
5Hydro Pivot94-2488-03
6Tie Rod End LH94-7573
7Screw-Lock94-7955
8Jam Nut LH Thread3220-16
9Rod-Pivot To Pedal94-2498
10Washer-Pivot3256-55
11Pin-Cotter3272-10
12Flat Washer3256-24
13Rod-Brake94-2393
14Spring-Compression94-7906
15Locknut3296-39
16Grease Fitting302-5
