> Roth / TORO > Hand operated > Lawnmower > 4-stroke > 414/20814 > 210000001 > Muffler and Fuel Tank Assy. B&S Model 12F802-1770-B1

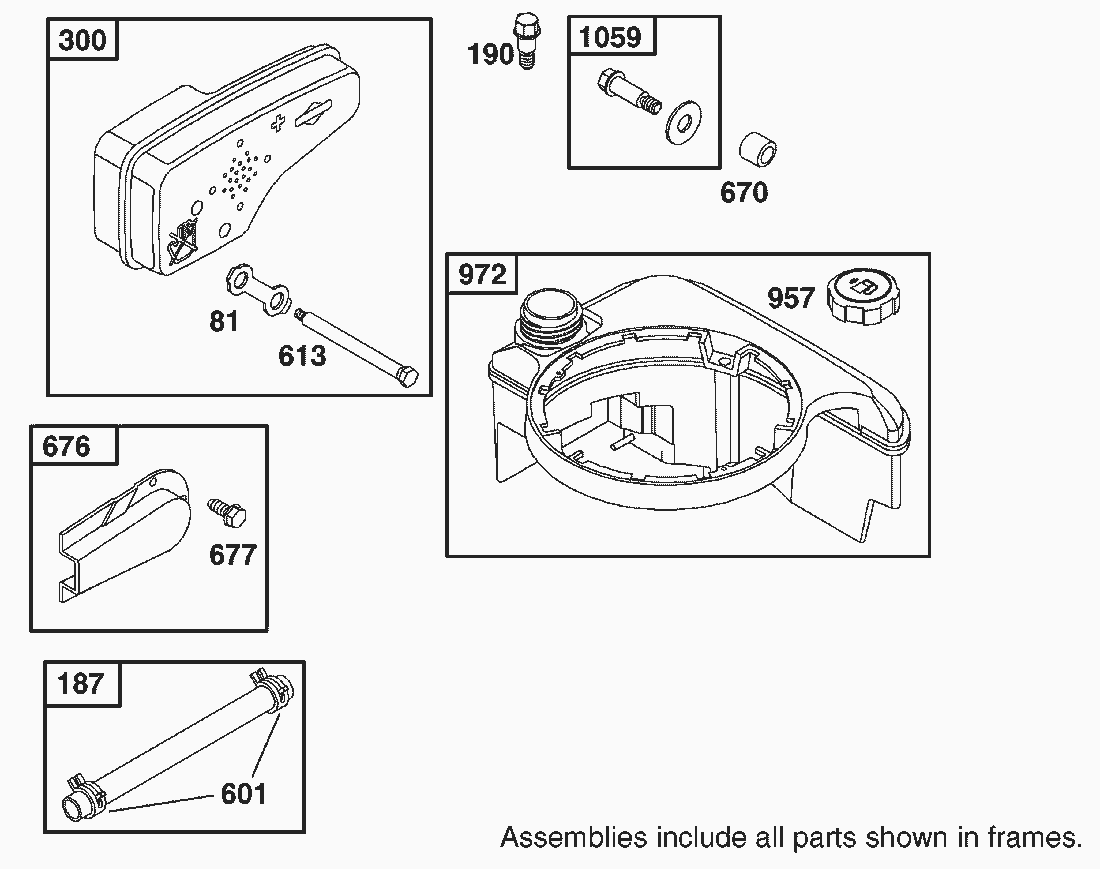

Lista de repuestos para Toro Roth / TORO Muffler and Fuel Tank Assy. B&S Model 12F802-1770-B1




Lista de repuestos


pos.descripciónNúmero de pieza
81Muffler Screw Lock691740
187Fuel Line(Cut to Required Length)691050
190Screw (Dipstick Tube)690940
300Muffler-Exhaust496106
601Clamp-Hose95162
613Screw (Muffler)691340
670Fuel Tank Spacer692294
676Deflector-Muffler493871
677Screw (Muffler Deflector)690661
957Cap Assy-Fuel397974
972Tank Assembly-Fuel495224
1059Screw/Washer Kit692311
