> Roth / TORO > Ride-On Mowers > Traktor > 264 H > 502/72063 > 5900499 > Lift Lever and HOC

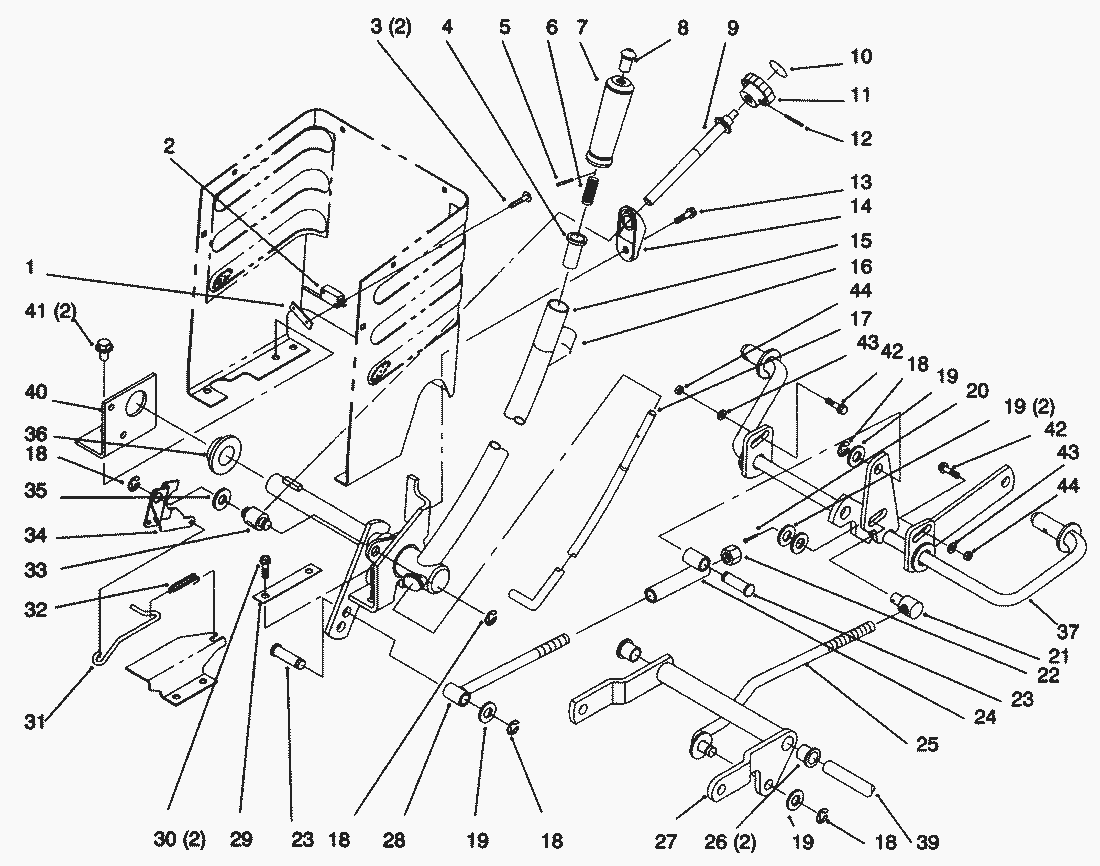

Lista de repuestos para Toro Roth / TORO Lift Lever and HOC

Lista de repuestos

pos.	descripción	Número de pieza
1	Speed Nut	3290-354
2	Switch-Micro	88-9930
3	Screw-Tapping	147665
4	Retainer-Spring	8130
5	Pin-Roll	933148
6	Spring-Compression	3624
7	Grip-Handle	92-6710
8	Tip-Rod	92-6711
9	Rod-HOC	92-6965
10	Decal-H.O.C. Knob	78-9740
11	Knob	115593
12	Pin-Roll	933141
13	Screw Thread Forming	32144-4
14	Wedge-HOC Adjust	92-6794
15	Lever-Lift	92-6874-03
16	Decal-Lift	112168
16	Decal-Lift (Only On: 72064)	93-7323
17	Rod-Lift Lever	92-6977-03
18	Ring-External Retaining	32120-47
19	Washer	3256-26
20	Cotter Pin	3272-6
21	Trunnion	8870
22	Nut-Lock	3296-23
23	Pin	79-1250
24	Link-Assembly	78-7390
25	Rod	78-2431
26	Bushing	256-90
27	Arm	92-6855-03
28	Rod-Assembly	78-7360
29	Plate	78-6810-03
30	Screw-Wash. Hd., Tap.	32144-14
31	Rod-HOC Indicator	92-6978
32	Spring-Extension	92-7007
33	Trunnion	78-2140
34	Plate-HOC Gage	92-6979
35	Washer-Flat	9202634
36	Bearing-Flange	106269
37	Gage Shaft	79-3401-03
39	Shaft-Pedal	78-6831
40	Bracket-Pivot Linkage	93-0523
41	Screw-Wash. Hd., Tap.	32144-14
41	Self Tapping Screw	32144-70
42	Carriage Bolt	3231-25
43	Flat Washer	3256-24
44	Locknut	3296-39
